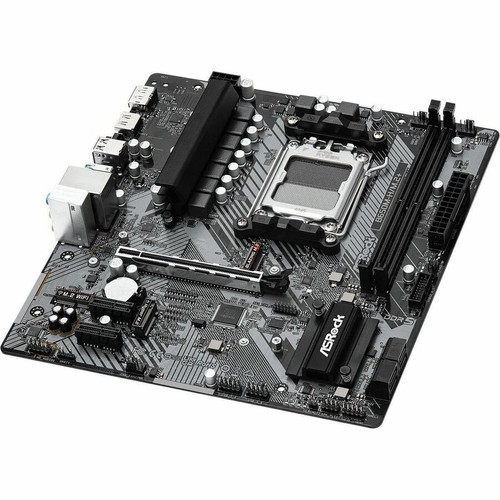

ASRock B650M H M.2 Plus Micro ATX Gaming Motherboard With AMD Chipset Socket Supporting Ryzen 7 And 5 Processors B650M-H/M.2+

Marketing Information:

Build for The Most Advanced PC | Optimized VRM Design

Featuring sturdy components optimized for AMD Ryzen™ 7000X3D series processors, offering enhanced performance for gamers.

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, giving a stable and reliable system.

Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:

? Extra anchor points

? Stronger latch

? Ensure signal stability

? Make sure heavy graphics cards to be well-installed.

Nahimic Audio | Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

?Static Noise Suppression

?Echo Cancellation

?Lateral Sound Cancellation

?Voice Stabilizer

Ultimate Gaming Experience | Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

?Works on any devices!

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

USB 3.2 Gen1 Type-C

USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

EZ Setting | Auto Driver Installer

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!

Step1: Install Auto Driver Installer

Step2: ADI will automatically download and install all necessary drivers.

Step3: Done!

BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

Chipset Manufacturer: AMD

Chipset Model: B650

Total Processor Supported: 1

Processor Socket: Socket AM5

Processor Supported: Ryzen 7,Ryzen 5

Number of Memory Slots: 2

Memory Form Factor: DIMM,UDIMM

Maximum Memory Supported: 96 GB

Memory Speed Supported: 6400 MHz

Memory Technology: DDR5 SDRAM

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0,1,10

Onboard Video: CPU Dependent Video

Graphics Controller Model: RDNA graphics

Audio Channels: 7.1

Gigabit Ethernet: Yes

Total Number of PCI Express Slots: 3

Number of PCI Express x1 Slots: 2

Number of PCI Express x16 Slots: 1

PCI Express Standard: PCI Express 4.0

Total Number of USB Ports: 6

Number of USB 2.0 Ports: 2

Number of USB 3.2 Gen 1 Type-A Ports: 3

VGA: Yes

HDMI: Yes

HDMI Version: 2.1

DisplayPort: Yes

Number of Network (RJ-45) Ports: 1

Number of M.2 Interfaces: 2

Total Number of Onboard USB Ports: 6

Number of Onboard USB 2.0 Ports: 4

Form Factor: Micro ATX

Width: 9.61" (244 mm)

Depth: 8.90" (226 mm)

Energy Efficiency Compliance: Energy-related Products Directive Ready (ErP Ready),Energy-using Products Directive Ready (EuP Ready)

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS)
