Black Box 4K USB 2.0 RS-232 Audio Video Extender DisplayPort - 1 Input Device - 1 Output Device - 330 ft (100584 mm) Range - 2 x - 3 x (UVX-DP-TP-100M)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.

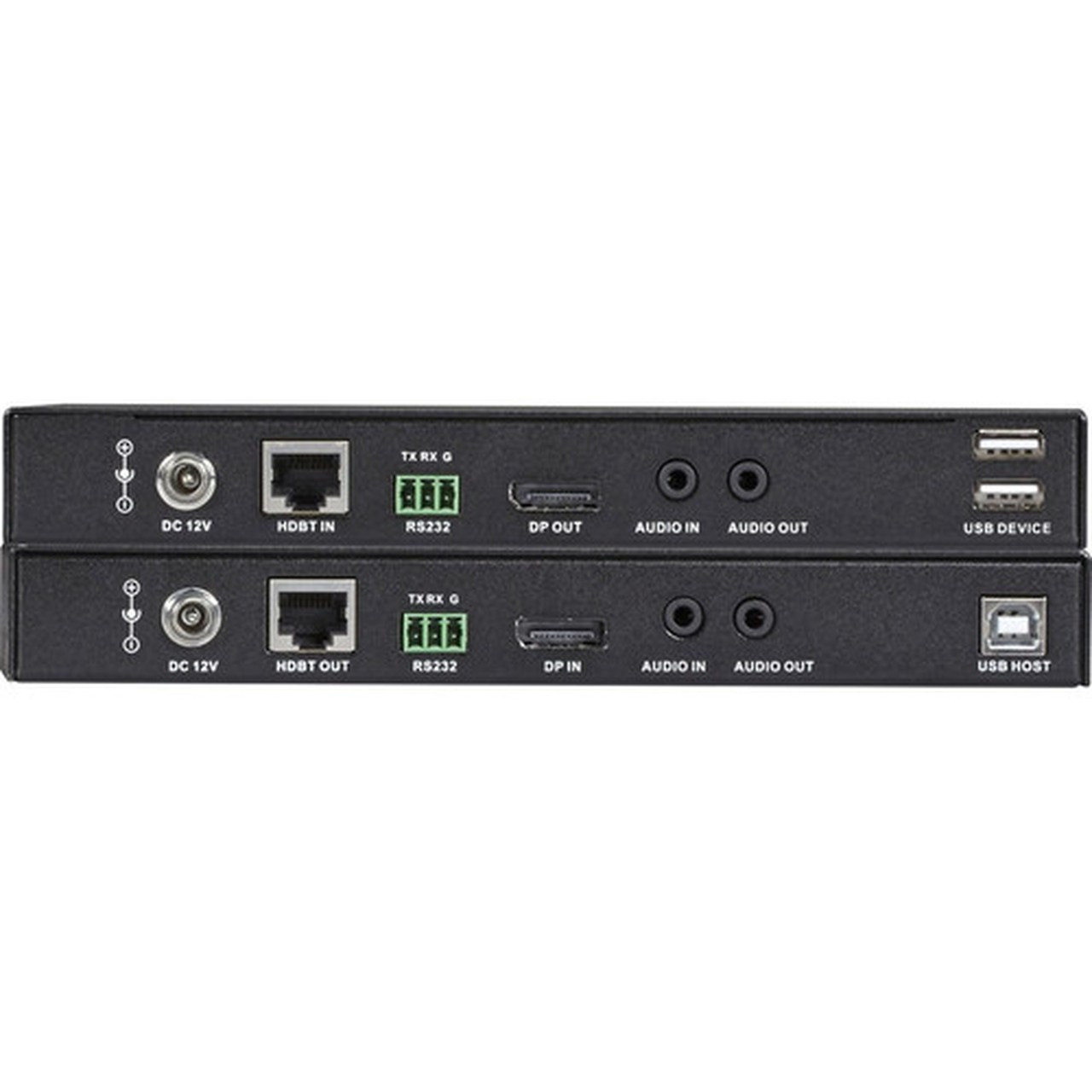

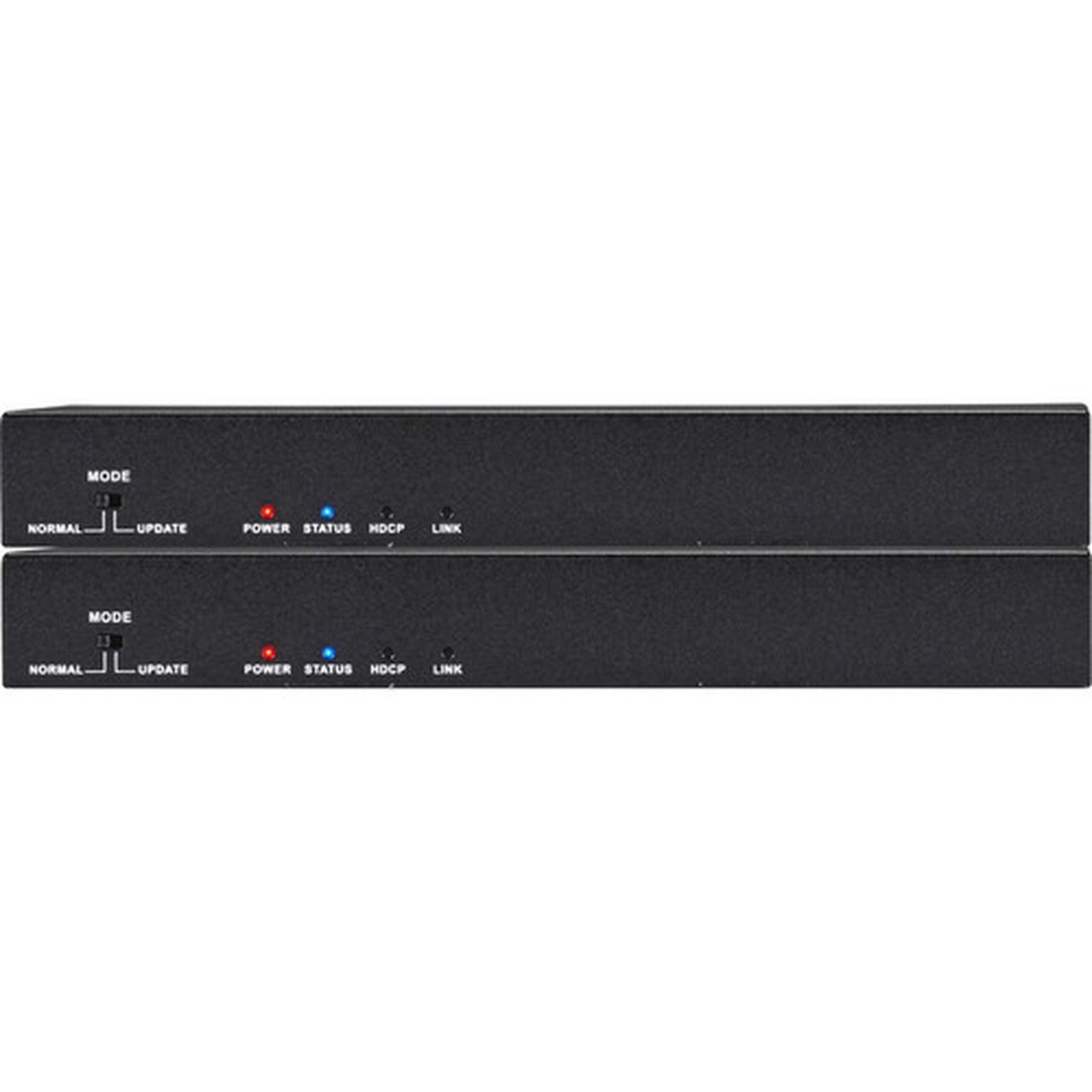

- 1 x DisplayPort Transmitter
- 1 x DisplayPort Receiver
- 1 x 12-VDC, 2-A power supply with US, EU, UK, and AU power clips
- 2 x 3.5-mm, 2-pin male Phoenix connectors
- 2 x Mounting brackets
- User manual
Marketing Information:

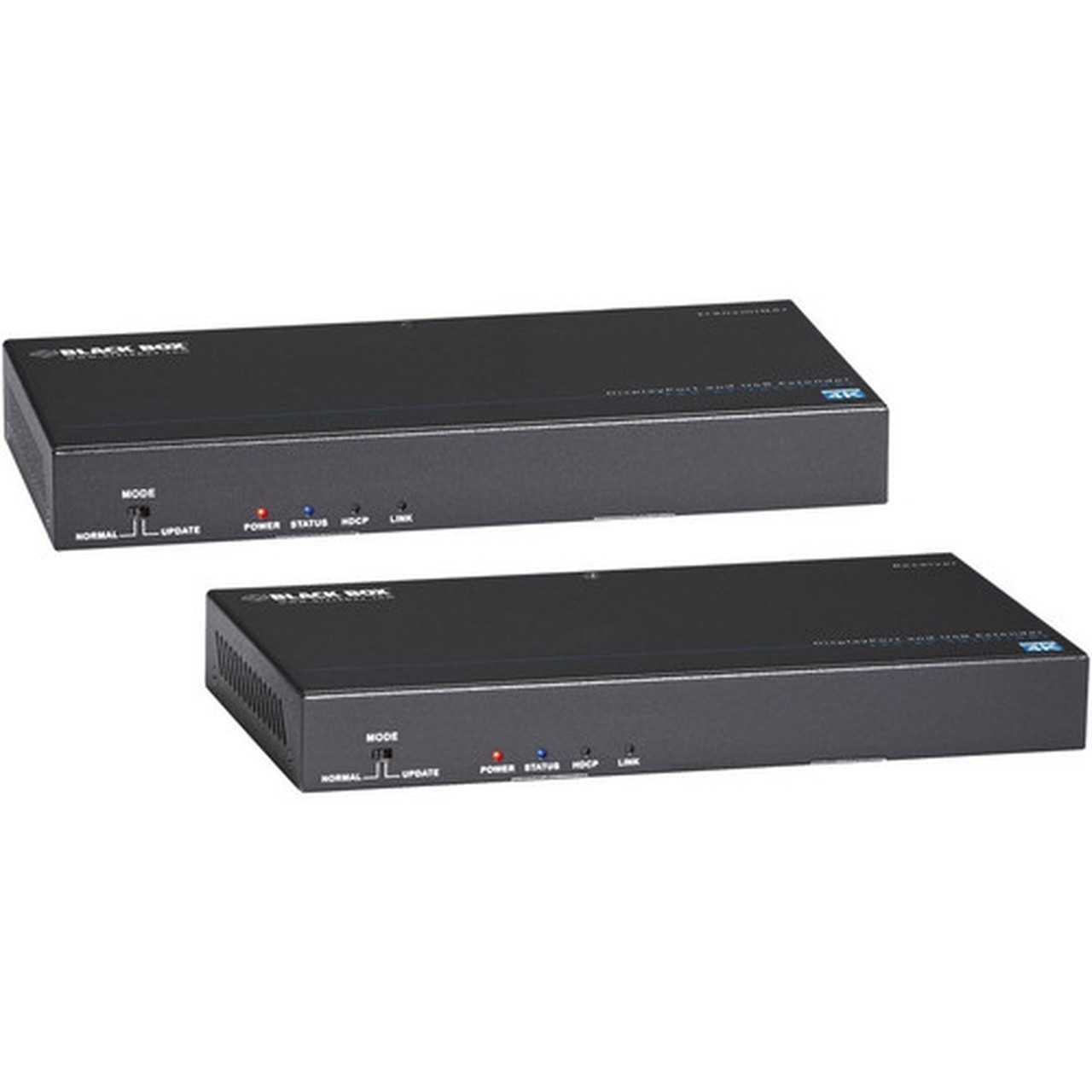

This Black Box DisplayPort & USB 2.0 Extender is designed for highly demanding use cases and is capable of supporting DisplayPort resolutions up to Ultra HD 4K at distances of up to 100m. The Transmitter and Receiver units are electronically isolated from one another removing the risk of damage via ground loop, with USB 2.0 devices one can extend a keyboard, mouse and and other peripheral signals.
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 330 ft (100584 mm)
Graphics Modes: 4K
Maximum Video Resolution: 3840 x 2160
Network (RJ-45): Yes
USB: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 3
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 7
Transmitter Height: 0.99" (25.15 mm)
Transmitter Width: 7.91" (200.91 mm)
Transmitter Depth: 3.95" (100.33 mm)
Receiver Height: 0.99" (25.15 mm)
Receiver Width: 7.91" (200.91 mm)
Receiver Depth: 3.95" (100.33 mm)
Transmitter Weight (Approximate): 500 g
Receiver Weight (Approximate): 500 g
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- USB 2.0 passthrough
- Use 48 V PoC (Power over CATx) to power the receiver unit from the transmitter
- HDCP 2.2 compliant and supports EDID transmission
- Extend your signals as far as 100m over CAT6A/CAT7 cables
- Transmitting uncompressed video, native 4K@30 Hz UHD DisplayPort signals
- Supports resolutions up to 4K, including 3840 x 2160 and 1080p/60 Deep Color
- Access distant AV sources or even to control remote computers
- Simultaneously transmits bidirectional analog stereo audio
[custom-specifications]
Specifications | |
Manufacturer | Black Box Corporation |
Manufacturer Part Number | UVX-DP-TP-100M |
Manufacturer Website Address | http://www.blackbox.com |
Brand Name | Black Box |
Product Name | 4K USB 2.0 RS-232 Audio Video Extender DisplayPort |
Product Condition | New |
Product Type | Video Extender Transmitter/Receiver |
Technical Information | |
Connectivity Technology | Wired |
Number of Input Devices Supported | 1 |
Number of Output Devices Supported | 1 |
Maximum Operating Distance | 330 ft (100584 mm) |
Video | |
Graphics Modes | 4K |
Maximum Video Resolution | 3840 x 2160 |
Interfaces/Ports | |
Network (RJ-45) | Yes |
USB | Yes |
DisplayPort | Yes |
Number of Network (RJ-45) Ports | 2 |
Number of USB Ports | 3 |
Media & Performance | |
Media Type Supported | Twisted Pair |
Twisted Pair Cable Standard | Category 7 |
Physical Characteristics | |
Transmitter Height | 0.99" (25.15 mm) |
Transmitter Width | 7.91" (200.91 mm) |
Transmitter Depth | 3.95" (100.33 mm) |
Receiver Height | 0.99" (25.15 mm) |
Receiver Width | 7.91" (200.91 mm) |
Receiver Depth | 3.95" (100.33 mm) |
Transmitter Weight (Approximate) | 500 g |
Receiver Weight (Approximate) | 500 g |
Miscellaneous | |
Package Contents |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
Additional-pdf3
[/custom-user-manual]
Warranty Infomartion
3 Year
