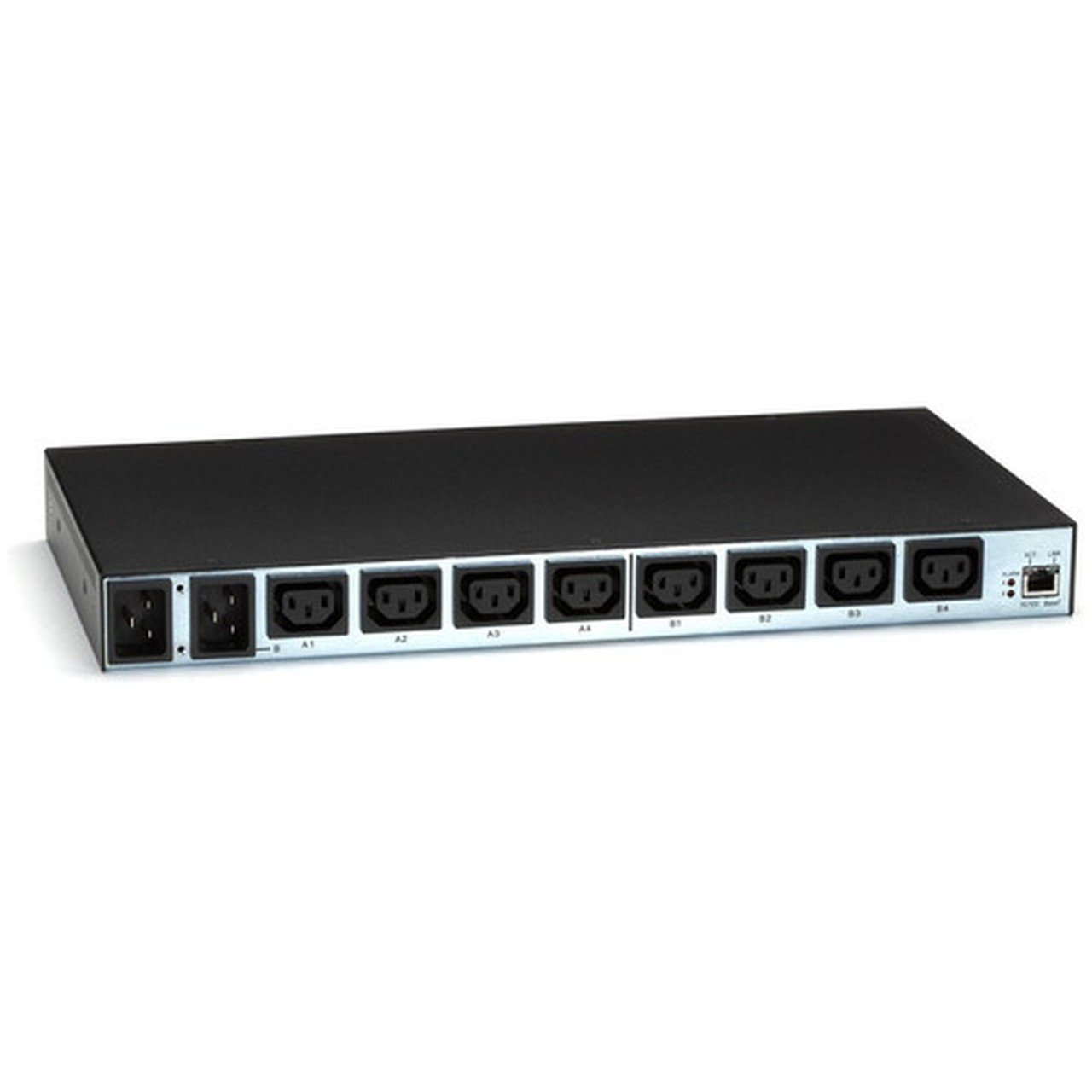

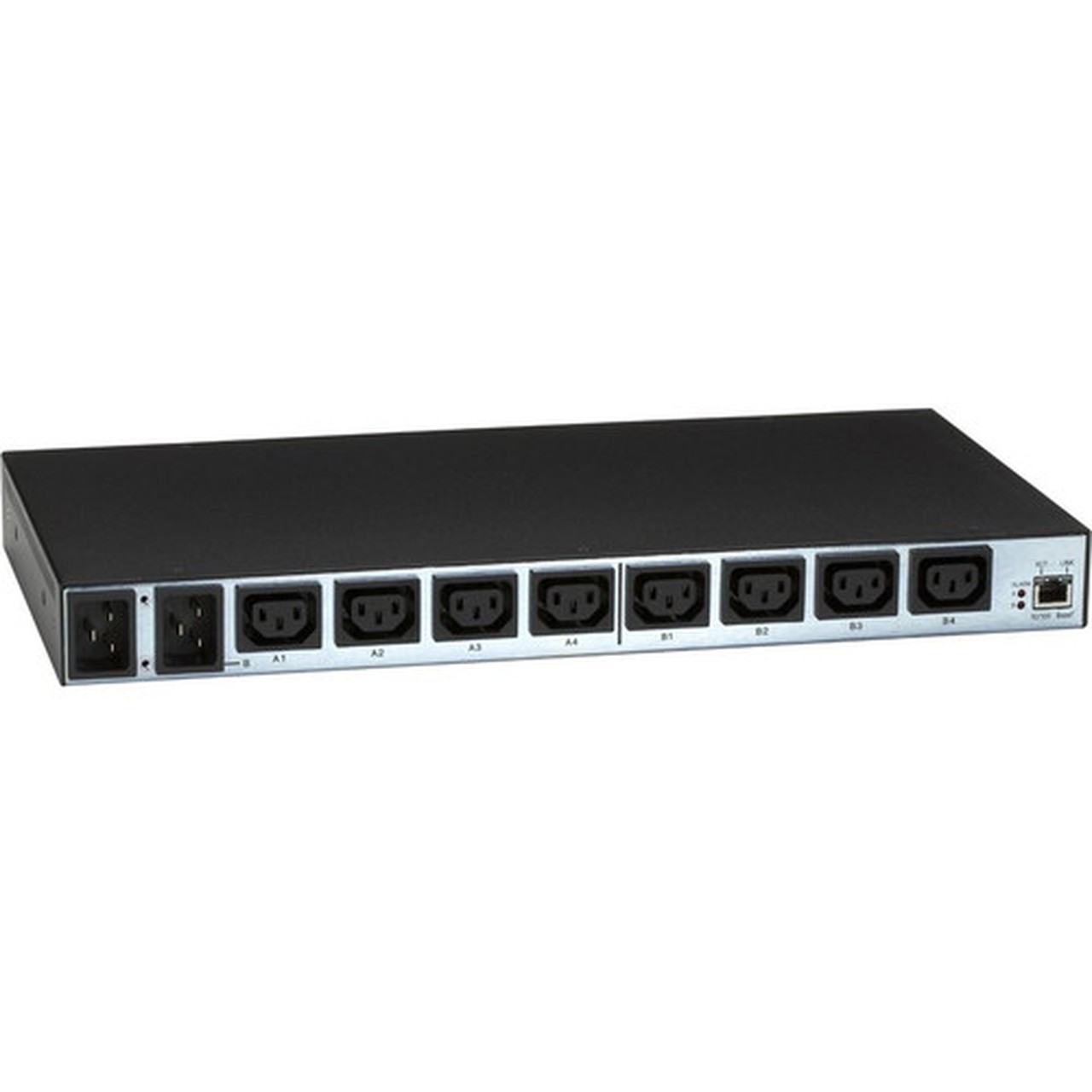

Black Box 8-Outlets PDU - C20 Inlet - 8 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable (PS582A-R2)

Marketing Information:

• Includes SNMP control (v1, v2c, v3), SSHv2 encryption, and an SSL Web browser (https) for setup and operation.
• Horizontal configuration.
• Feature individually controllable outlet plugs.
• This model is for 208 - 240-VAC equipment; versions are also available for 105 - 120 VAC, 100 - 120 VAC, and 100 - 125 VAC.
• Two levels of password protection and encrypted 64-bit password security.
• Only authorized users can make configuration changes.
• An RS-232 port is for modem or console connections. A 10BASE-T interface provides network connections.
• Takes up only 1U of space.
• Models with dual power circuits are also available.

No more traveling to reboot your equipment in the middle of the night! No more service calls just to flip a switch! This Black Box® Rackmount Remote Power Manager enables you to reboot up to 8 network devices from across your network, by modem, with Telnet, or even from the Internet.

Just type the power manager's IP address into your Web browser, enter your name and password, and you can access your network devices to switch them on, switch them off, or reboot. The power managers are perfect for remotely rebooting servers, routers, network switches, Webcams, firewalls, and many other network devices.

The Web browser interface works across any TCP/IP network - even the Internet - with any JavaScript-enabled Web browser. Its intuitive interface features easy-to-use menus. Control power by plug number or by name (such as ATM Switch 1, Gateway, Router 1, etc.) that you assign to each outlet.

You can also operate the Horizontal Rackmount Remote Power Manager through an ASCII command-line interface via Telnet™ over a TCP/IP network, through a modem connection, or from a local PC using a terminal emulator.

Horizontal Rackmount Remote Power Managers have built-in password security to prevent unauthorized users from switching your devices or changing your configuration. Both the Web browser and the command-line interface use 64-bit encryption.

Two levels of operational passwords provide an additional layer of security: System-level passwords provide access to all configuration and switching functions. The user-level limits switching to assigned plugs and cannot be used to change the power manager configuration.

Horizontal Rackmount Remote Power Managers feature an IP-addressed 10BASE-T interface for network connections and an RS-232 port for modem or console connections.

Plug/Connector Type: C20 Inlet

Plug/Connector Detail: 2 x C20 Inlet

Receptacle Type: IEC 60320 C13

Receptacle Detail: 8 x IEC 60320 C13

Protection Type: Circuit Protection,Password Protection

Input Voltage: 230 V AC

Input Current: 10 A

Management:

• HTTP
• Telnet
• RS-232
• SSHv2
• SSL

• v1
• v2c
• v3

Network (RJ-45): Yes

Mounting Orientation: Horizontal

Mount Type: Rack-mountable

Rack Height: 1U

Country of Origin: United States

Limited Warranty: 5 Year
