Black Box CAT6 A/B Switch - Latching RJ45 Remote Controlled Ethernet RS232, Dry Contact - 1 x Serial Port (SW1041A)
- Durable and reliable. Tested to 1,000,000 cycles

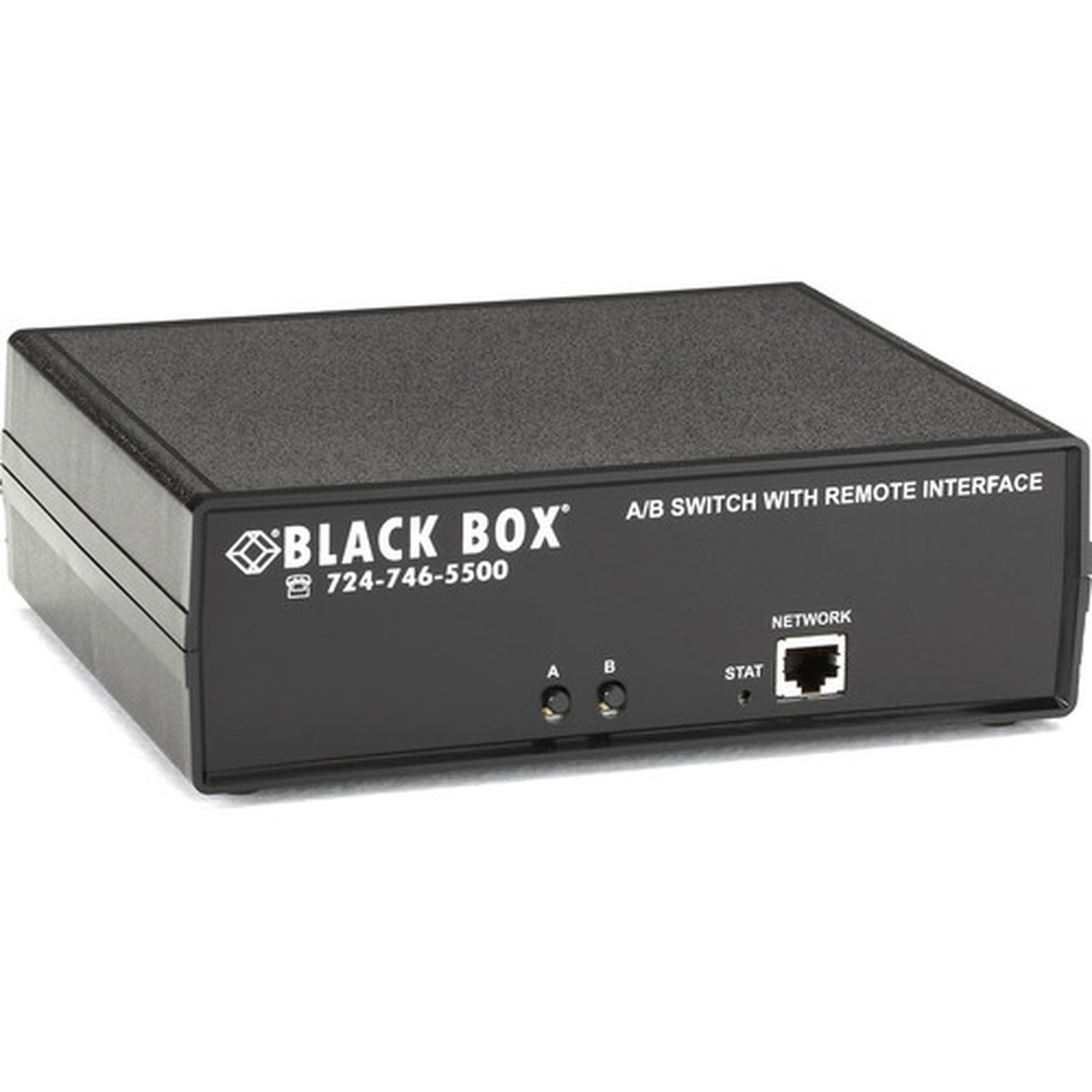

- Manual control of the switch port supported through A/B push button on the front.
- Can be switched remotely via Ethernet, RS-232, or dry contact as well.
Marketing Information:
Input Connector Type: Serial
Number of Serial Ports: 1
Height: 2.50" (63.50 mm)
Width: 6.25" (158.75 mm)
Depth: 8.10" (205.74 mm)
Weight (Approximate): 1.81 kg
Country of Origin: United States
Environmentally Friendly: Yes
Limited Warranty: 1 Year
- Switch ports are transparent to data rates, formats, and protocols and can handle speeds up to 10 Gbps.
- Supports serial remote control and can be switched using commands over a serial RS-232 communications line.
- supports Ethernet remote control and can be switched using commands sent over an Ethernet network.
- Manual control of the switch port connection state is supported through pushbutton switches on the front of the unit.
- The connection state will be maintained if power fails or is removed.
- Once the Ethernet remote control port has been configured, the A/B Switch can be switched using SNMP commands
- supports remote telnet access, and can be controlled via a telnet session using the same commands as supported by the RS-232 serial interface
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | SW1041A |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Model | SW1041A |
| Product Name | CAT6 Remotely Controlled Layer 1 A/B Switch, Latching, Ethernet, RS-232 |
| Product Type | Serial Switchbox |
| Interfaces/Ports | |
| Input Connector Type | Serial |
| Number of Serial Ports | 1 |
| Physical Characteristics | |
| Height | 2.50" (63.50 mm) |
| Width | 6.25" (158.75 mm) |
| Depth | 8.10" (205.74 mm) |
| Weight (Approximate) | 1.81 kg |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
