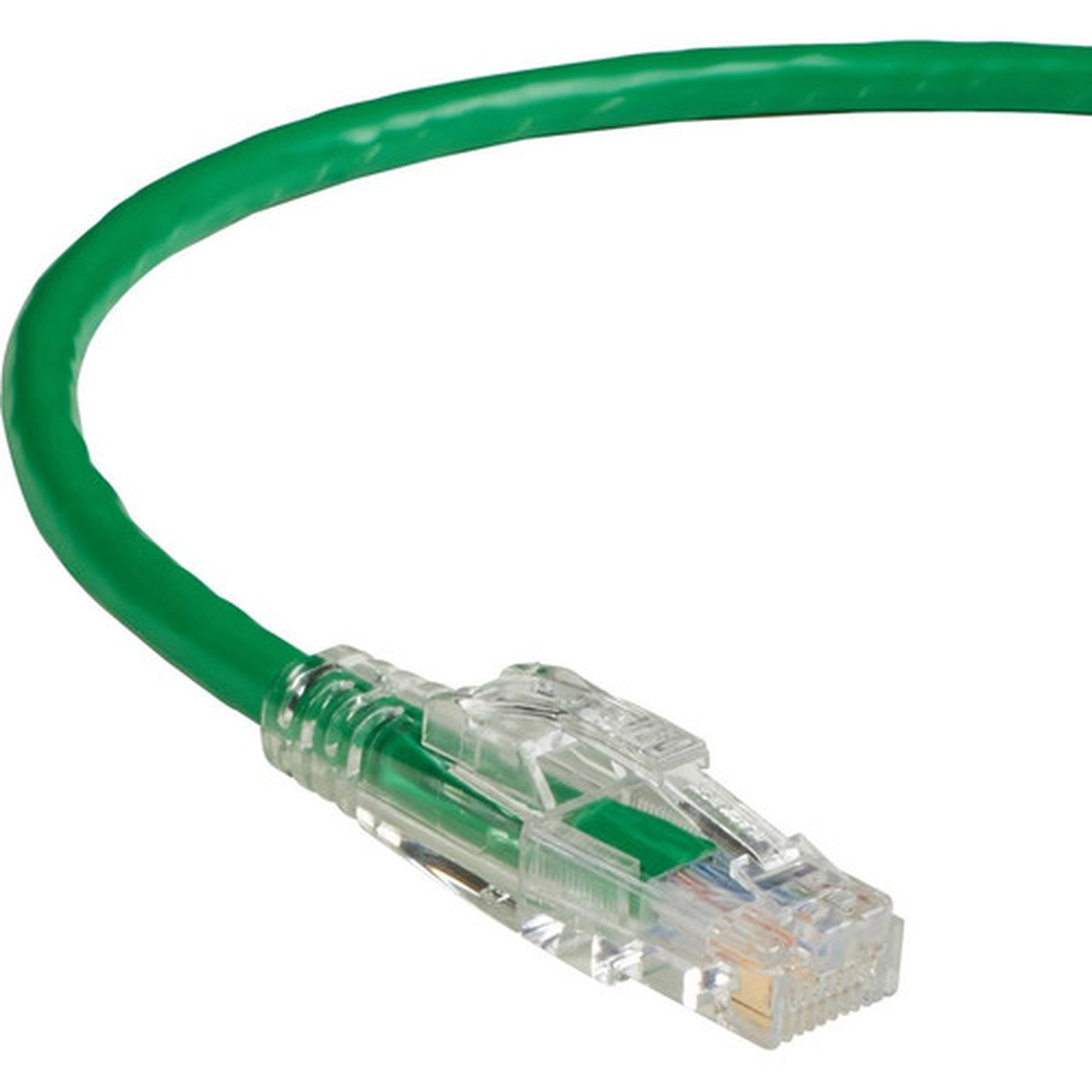

Black Box GigaTrue 3 Cat.6 UTP Patch Network Cable - 5 ft Category 6 Network Cable for Patch Panel, Wallplate, Network Device - First (C6PC70-GN-05)

Marketing Information:

Premium Performance

Black Box GigaTrue 3 Premium CAT6 Patch Cables exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Gigabit Ethernet applications and guaranteeing the transmission of your voice, data, audio/video, and PoE signals. Tested to 550-MHz and 1-Gbps performance, these cables exceed the 250-MHz CAT6 specification, greatly reducing impedance, structural return loss, and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.

These cables have connectors designed for an insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. The rugged, hard-polymer LockPORT boot and plug are integrated to provide increased strength in comparison to standard connectors.

Locking Options Available

These cables allow you to lock down critical network ports when required - without buying new patch cords. Secure your network ports by inserting a locking pin (sold separately) into the built-in locking tab on the patented snagless boot. To unplug the cable, release it with the removal key (sold separately).

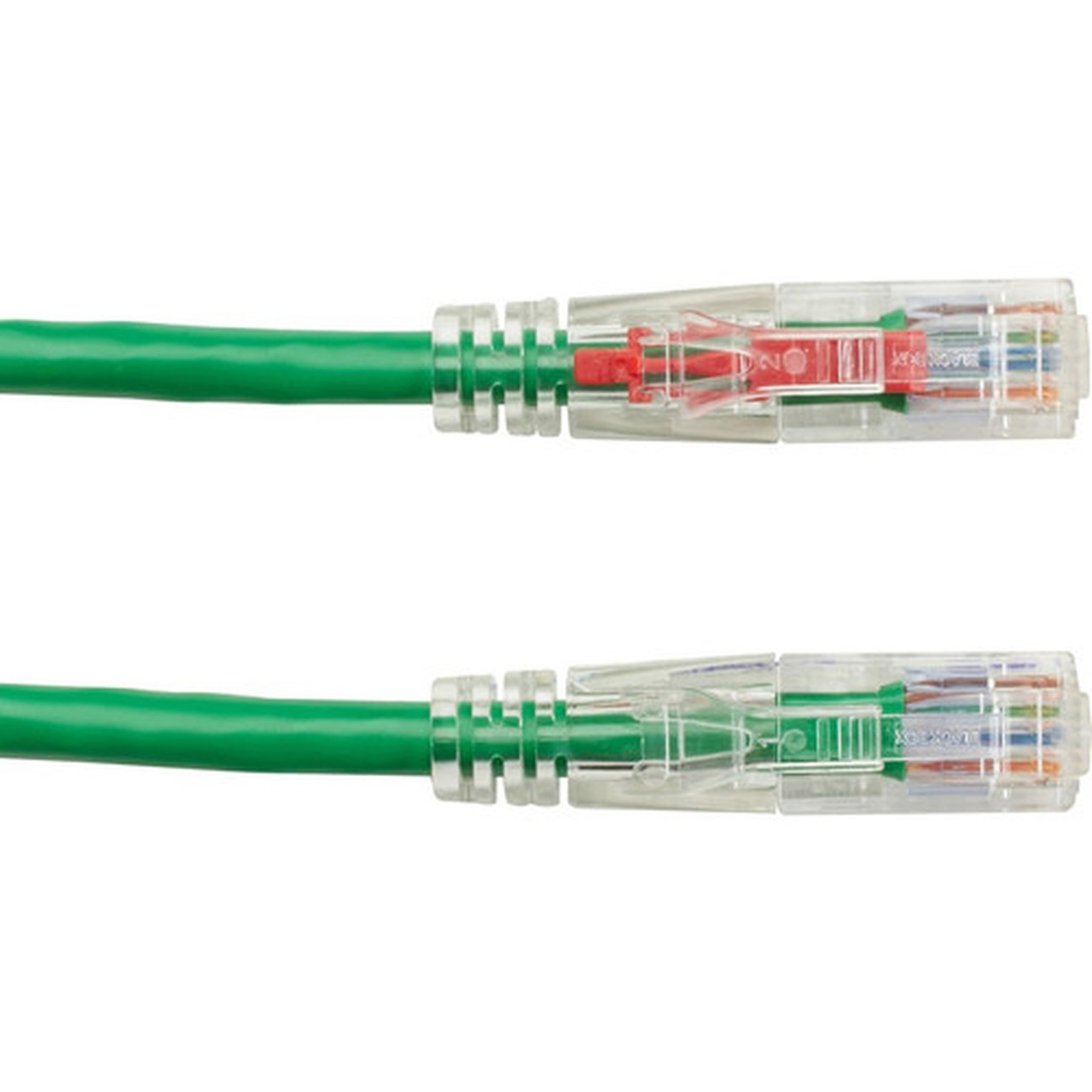

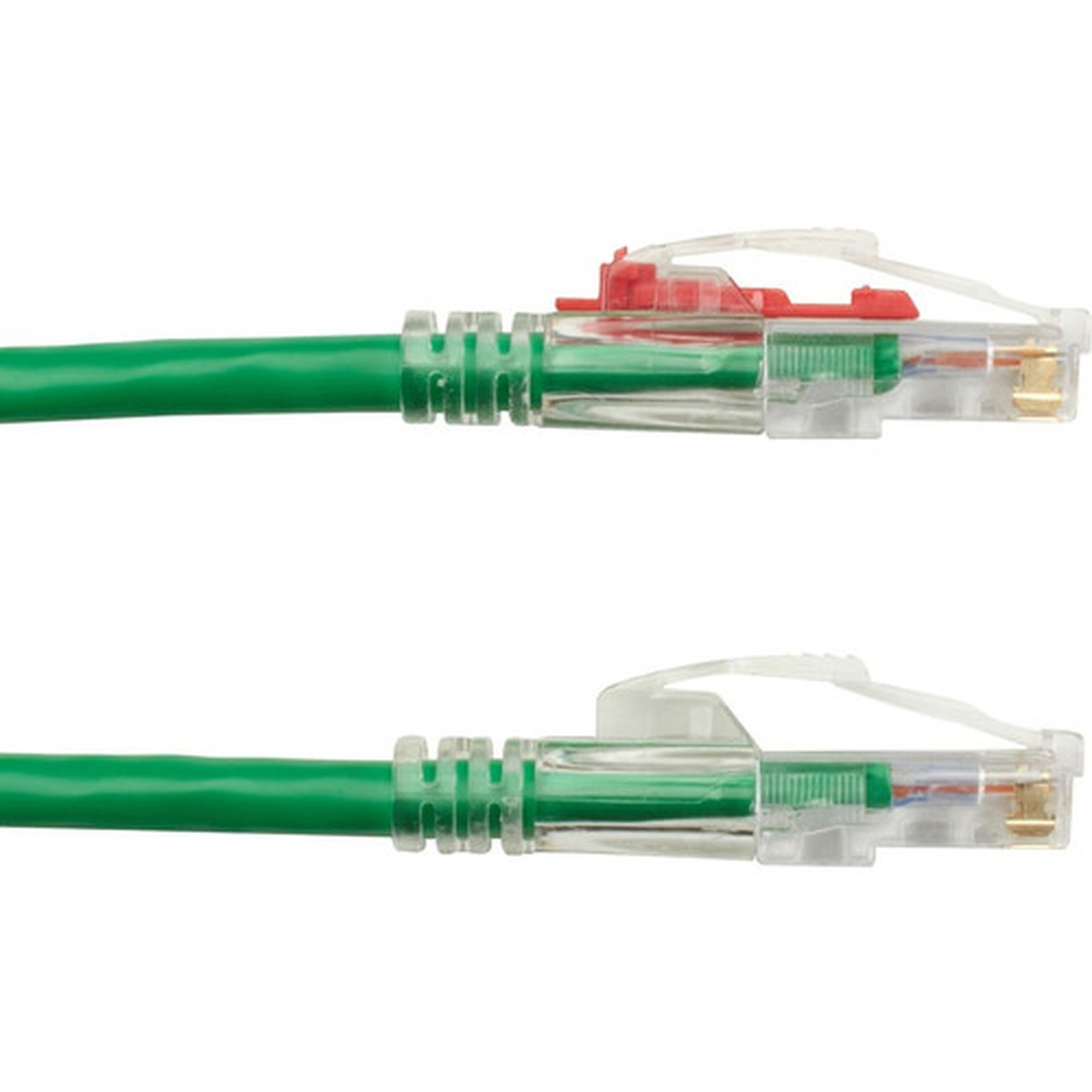

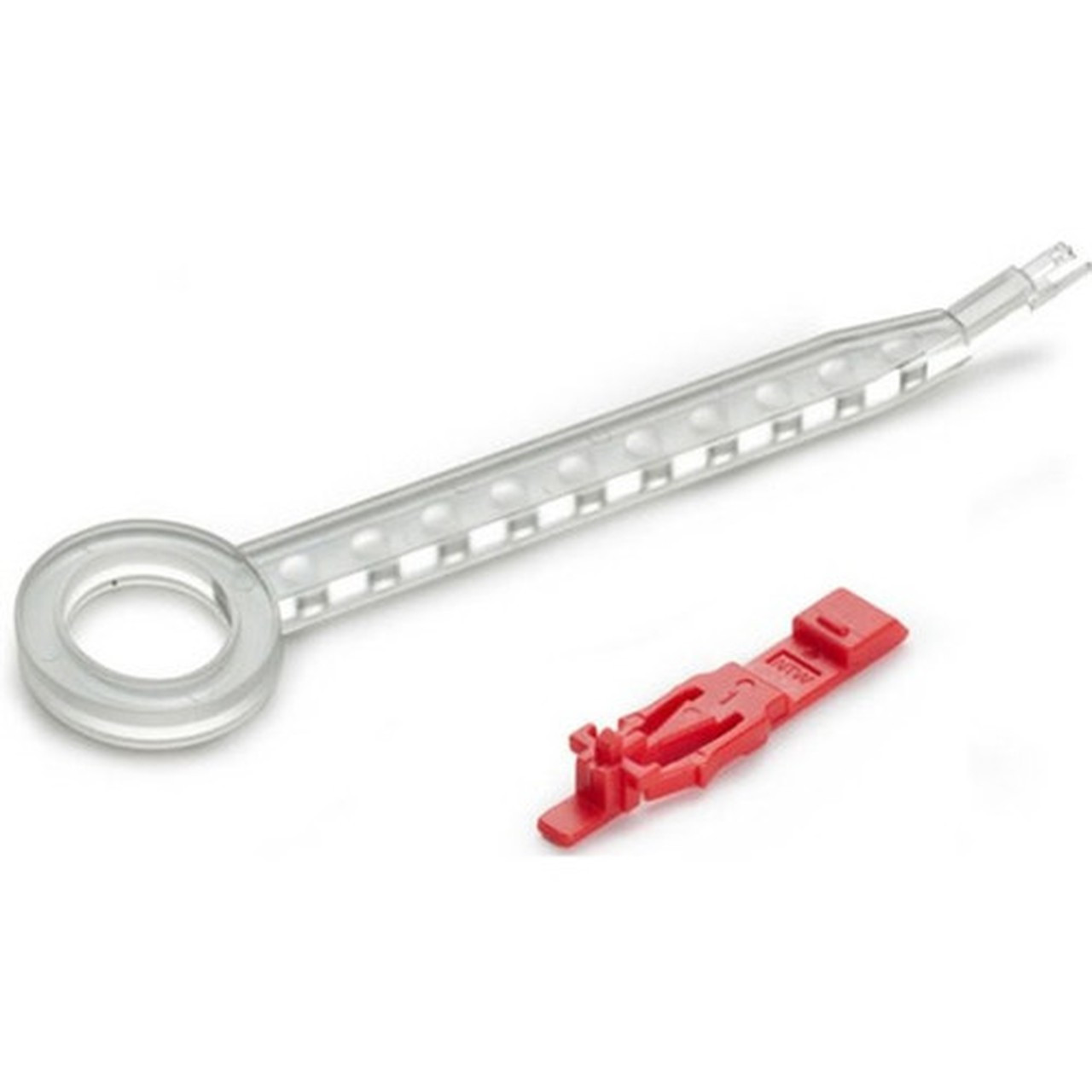

Locked: Red Pin Prevent unauthorized access to mission-critical and publicly accessible ports in government offices, lobbies, retail establishments, and more. To lock a port, insert the red locking pin into the patented LockPORT boot on the cable. Unlock the port with the LockPORT Locking Pin Removal Tool.

Secured: Green Pin Prevent accidental disconnects in the office, manufacturing and industrial applications and more. To secure a port, insert the green locking pin into the cable's LockPORT boot. To release the pin, squeeze its butterfly tabs and pull - no removal tool required.

Cable Type: Category 6

Cable Characteristic: Patch Cable

Cable Length: 5 ft

Connector Type on First End: RJ-45 Network - Male

Connector on First End Details: 1 x RJ-45 Network - Male

Connector Type on Second End: RJ-45 Network - Male

Connector on Second End Details: 1 x RJ-45 Network - Male

Contact Plating: Gold

Shielding: No

Jacket Type: CM

Device Supported: Patch Panel,Wallplate,Network Device

American Wire Gauge: 24 AWG

Data Transfer Rate: 1 Gbit/s

Boot Type: Snagless

Features: Stranded,Lockable,Booted,Damage Resistant,Near End Cross Talk (NEXT),Rugged,PoE

Product Color: Green

Jacket Material: Polyvinyl Chloride (PVC)

Environmentally Friendly: Yes

Country of Origin: China

Limited Warranty: Lifetime
