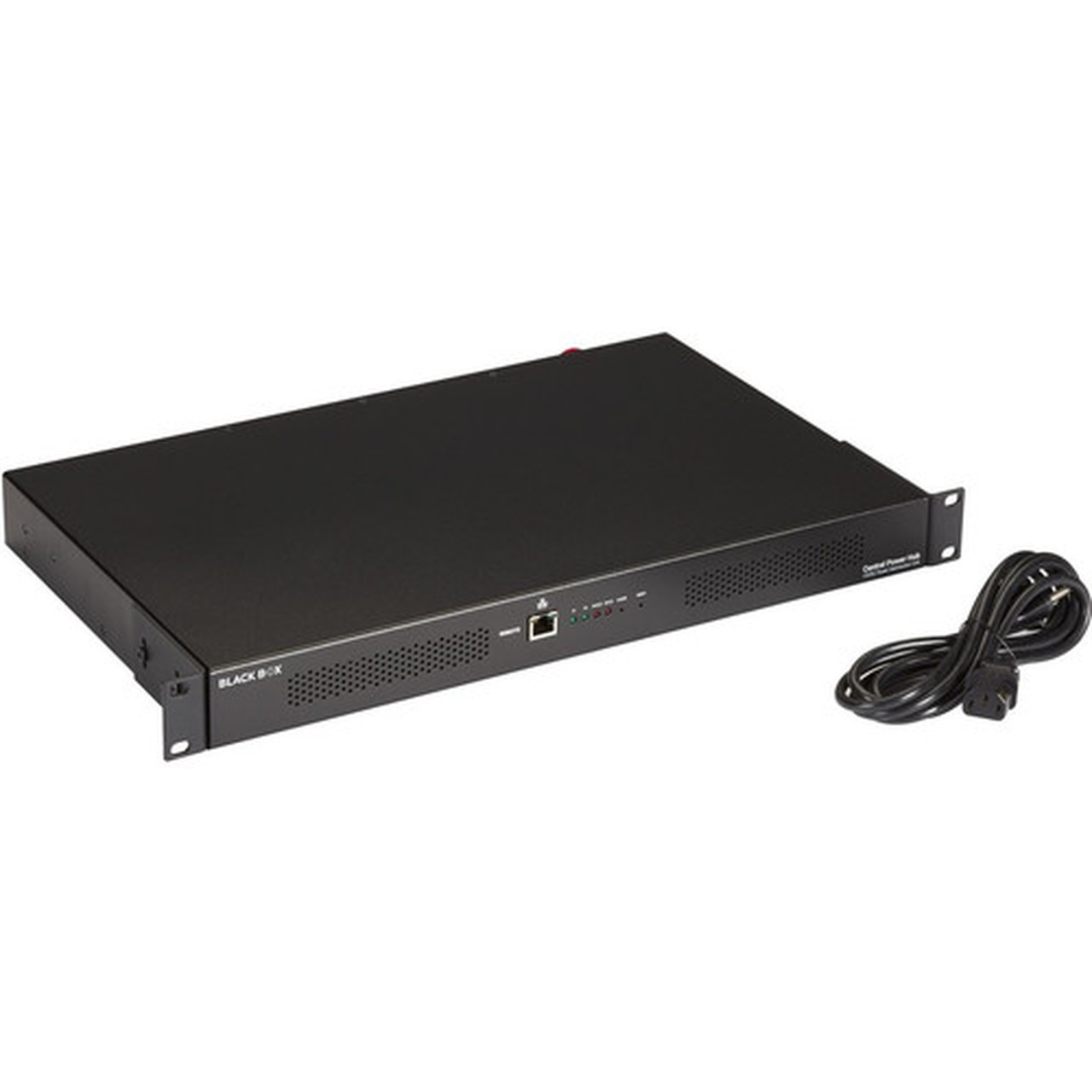

Black Box KVM Central Power Hub - 16-Port, 30W - Hot-swappable - IEC 60320 - 16 x AC Power - 120 V AC, 230 V AC - Network (RJ-45) - 1U (ACR1000-CPH16R-R2)

Marketing Information:

Manage power in one place.

These hubs provide up to eight or sixteen power outputs in one place. The power distribution units feature a single power supply with an optional secondary, to deliver full power redundancy. The Central Power Hub (CPH) supports 5VDC or 12VDC devices in a 1U chassis for convenient rack mounting. It provides power to grow your installation on demand.

The power output ports are lockable, preventing accidental disconnects. Each output is limited to 20 Watts at 12V.

Hot swappable power modules.

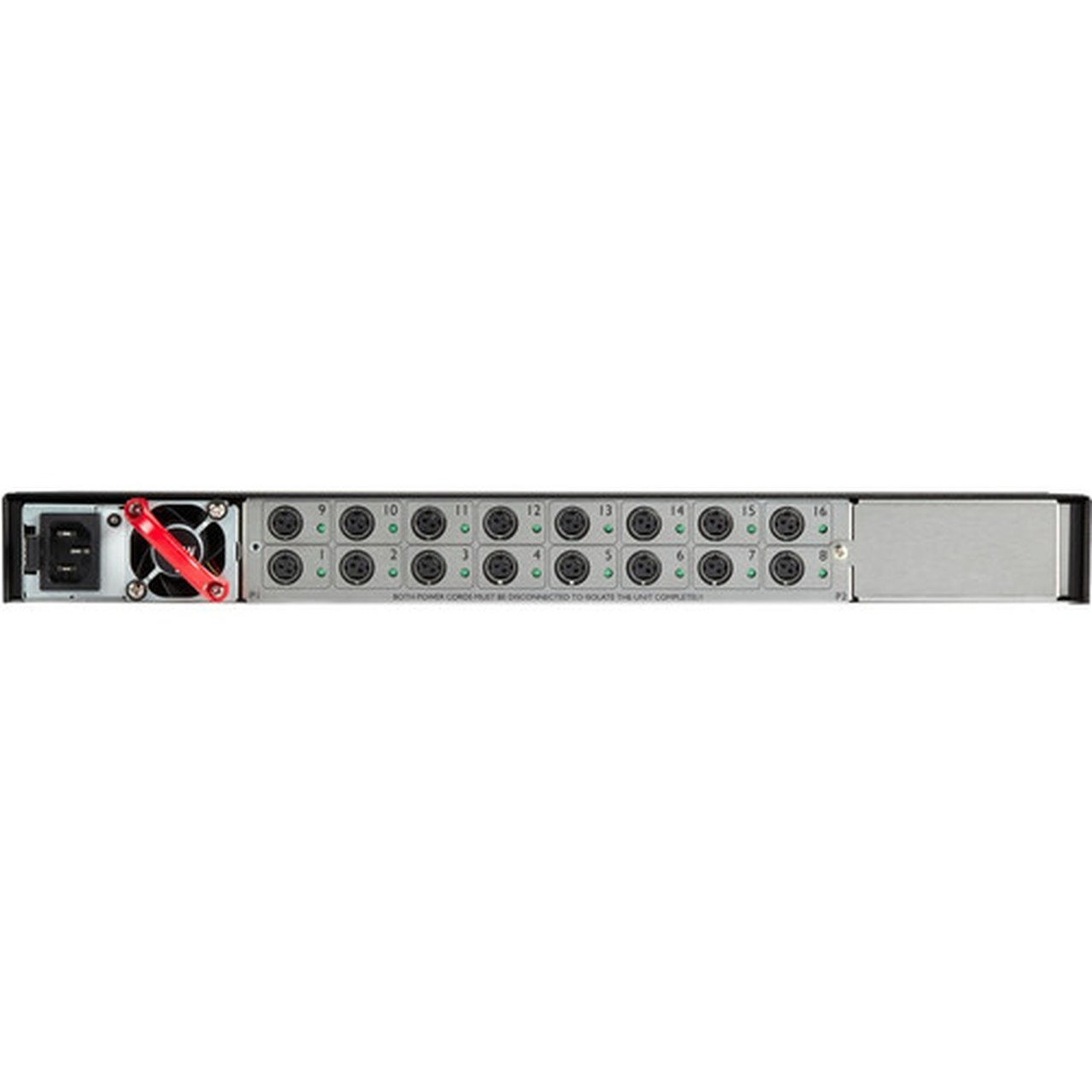

The chassis can supply two 460W power modules slot into the back of the Power Hub chassis. Conversion from the mains AC supply to DC voltage occurs within these modules. In situations where redundancy is required, the Power Hub will equally balance a normal load between them. In the case of one module ceasing operation, the Hub automatically transfers the full load to the remaining module, which can easily handle the needs of up to 8 respectively 16 ports.

Protection.

Power integrity, safety, and management are at the heart of the Central Power Hub system. At start-up, the CPH automatically checks the validity of the power modules. It then enables each power output in sequence so they are do not overload the modules by starting simultaneously. As the system provides steady power to your installation, protections are in place to ensure against excess demand by anyone connected device.

Remote management.

The Central Power Hub can be controlled and monitored by a web interface. Temperature, fan speeds, and current measurements are viewable. Each output can be individually controlled.

• Support for dual power supplies for redundancy, unit comes with one power supply.
• Supports eight or sixteen 5VDC or 12VDC devices in a 1U chassis for convenient rack mounting.

PDU Type: Hot-swappable

Plug/Connector Type: IEC 60320

Plug/Connector Detail: 2 x IEC 60320

Receptacle Type: AC Power

Receptacle Detail: 16 x AC Power

Input Voltage: 120 V AC,230 V AC

Output Voltage: 12 V DC

Power Rating (Watt): 30 W

Input Current: 1.60 A

Network (RJ-45): Yes

Form Factor: Rack

Rack Height: 1U

Height: 1.73" (43.94 mm)

Width: 17.13" (435.10 mm)

Depth: 10.80" (274.32 mm)

Weight (Approximate): 4.50 kg

Package Contents:

• KVM Central Power Hub - 16-Port, 30W
• 1 x Power Supply
• 1 x Power Cord
• 1 x Safety Insert Envelope

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Waste Electrical and Electronic Equipment Directive (WEEE)
