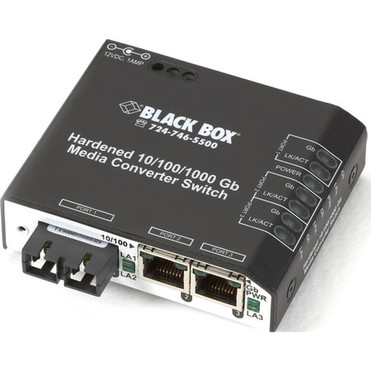

Black Box Dual RJ45 To SC Multimode Gigabit Media Converter Transceiver For Robust Fiber Network Expansion LBH2001A-H-SC-24
Write a Review
Black Box
Black Box Dual RJ45 To SC Multimode Gigabit Media Converter Transceiver For Robust Fiber Network Expansion LBH2001A-H-SC-24
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- LBH2001 Transceiver/Media Converter
- Metal Panel Mounting Clips
Total Number of Ports: 3
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Number of SC Ports: 1
Media Type Supported: Optical Fiber,Twisted Pair
Fiber Mode Supported: Multi-mode
Fiber Optic Cable Wavelength: 850 nm
Maximum Distance Supported: 0.55 km (0.34 Mile)
Fiber Optic Cable Core/Cladding Specification: 50 µm
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T,1000Base-SX
Power Source: DC
Form Factor: DIN Rail Mountable,Rack-mountable,Panel-mountable
Height: 3.50" (88.90 mm)
Width: 3" (76.20 mm)
Depth: 1" (25.40 mm)
Weight (Approximate): 4.80 oz (136.08 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: United States
TAA Compliant: Yes
Limited Warranty: 3 Year
- A combination hardened edge switch and media converter.
- Enables you to convert copper to optical fiber.
- Includes two 10-/100-/1000-Mbps copper switch ports and one 1000-Mbps fiber multimode SC port.
- Converts 1000BASE-T to 1000BASE-SX multimode fiber.
- Withstands temperatures of -13 to +140º F (-25 to +60º C).
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LBH2001A-H-SC-24 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Name | LBH2001 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 50 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-SX |
| Power Description | |
| Power Source | DC |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable,Rack-mountable,Panel-mountable |
| Height | 3.50" (88.90 mm) |
| Width | 3" (76.20 mm) |
| Depth | 1" (25.40 mm) |
| Weight (Approximate) | 4.80 oz (136.08 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Black Box Rackmount Tray for LBHxxxA, LE15xxA, and LP004A Series - For Media Converter, LAN Switch - 1U Rack Height - Rack-mountable |
| SKU | LH1505P-RACK |
| Sale Price | $344.04 |
| Product | Black Box Din Rail Mount for Switch |
| SKU | DIN-RAIL MC2 |
| Sale Price | $48.14 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
Warranty Information
3 Year| Qty | Price | Available |
|---|
