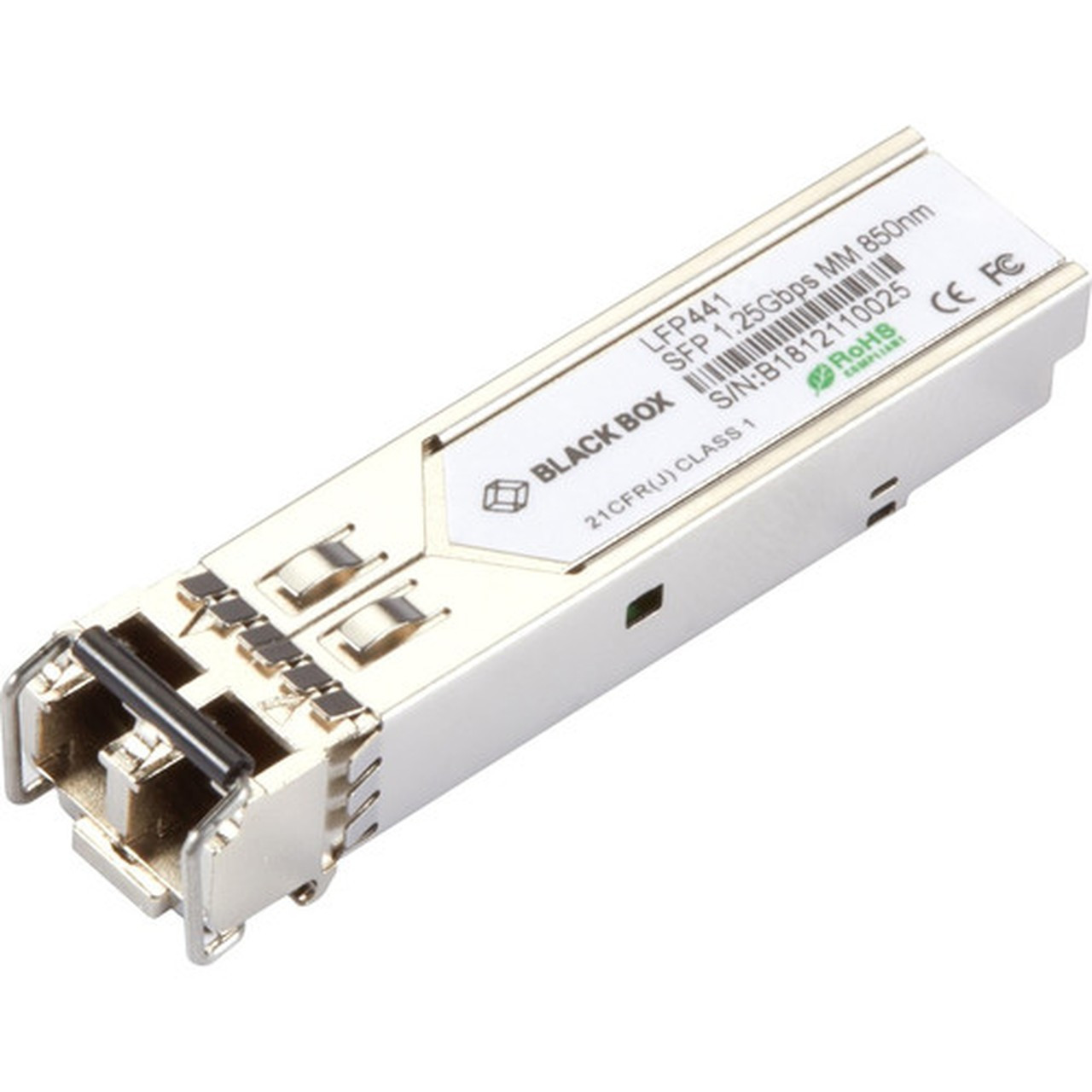

Black Box LFP440 SFP (mini-GBIC) Module - For Data Networking, Optical Network - 1 x LC Duplex 1000Base-SX Network - Optical Fiber - - (LFP441)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Write a Review
Black Box
Black Box LFP440 SFP (mini-GBIC) Module - For Data Networking, Optical Network - 1 x LC Duplex 1000Base-SX Network - Optical Fiber - - (LFP441)
- Black Box 52-port Gigabit Ethernet (GBE) Managed Switch
- Black Box 28-port Gigabit Ethernet (GBE) Managed Switch
Application/Usage: Data Networking,Optical Network
Total Number of Ports: 1

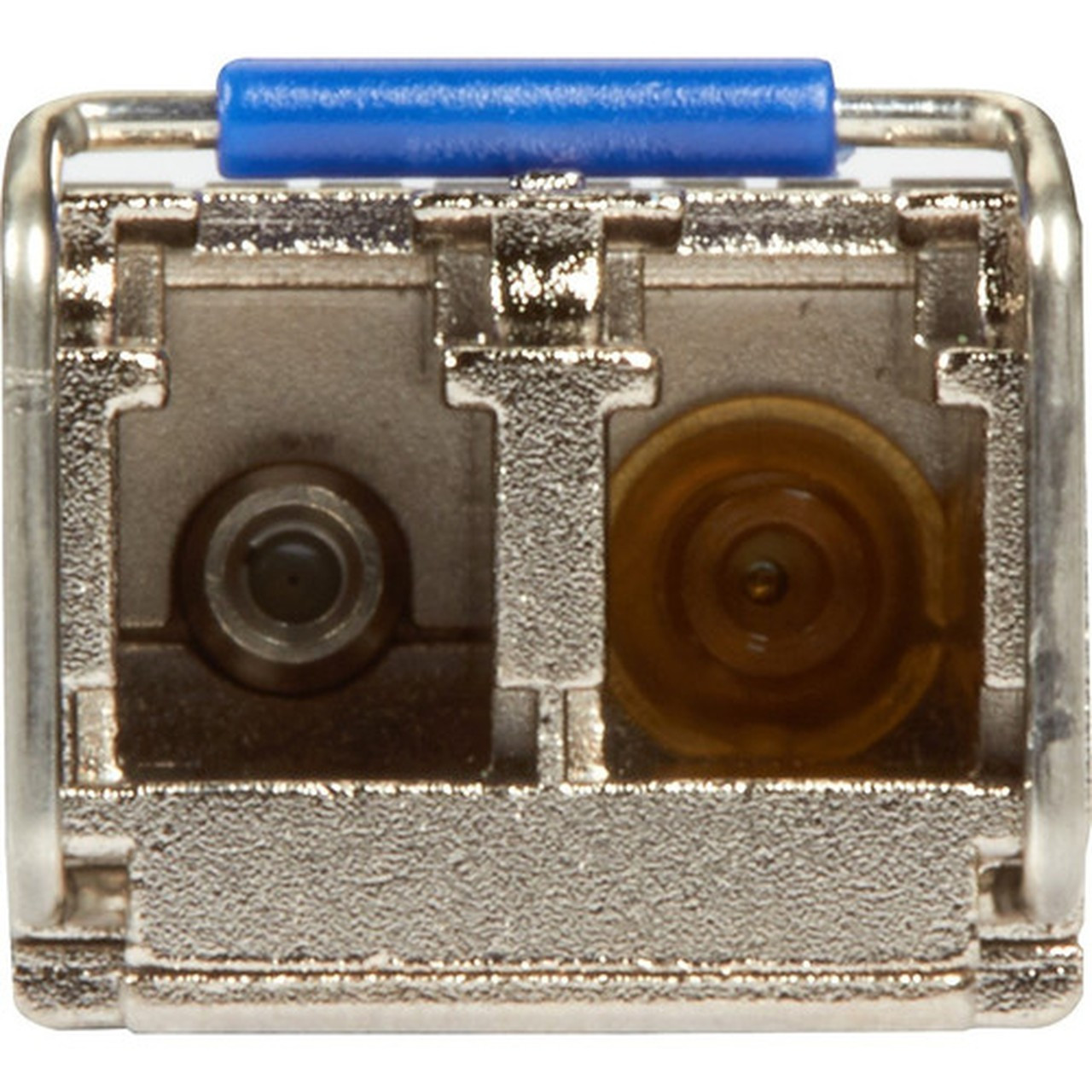

Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 1000Base-SX Network
Media Type Supported: Optical Fiber
Fiber Mode Supported: Multi-mode
Ethernet Technology: 1.25 Gigabit Ethernet,Gigabit Ethernet
Network Technology: 1000Base-SX,Fiber Channel
Maximum Distance Supported: 0.55 km
Maximum Data Transfer Rate: 1.25 Gbit/s
Height: 0.20" (5.08 mm)
Width: 0.50" (12.70 mm)
Depth: 2.20" (55.88 mm)
Weight (Approximate): 16.3 g
Compatibility:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 1 Year
- With 1000Base-SX technology, enjoy up to 1000Mbps data transfer rate over optical fiber cable
- Up to 10x faster than standard Ethernet connection and provides high-performance
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Typically used for short distance, multi-mode fiber optic is ideal to carry data and transmit audio/video applications within a building
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LFP441 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Series | LFP440 |
| Product Name | LFP440 SFP (mini-GBIC) Module |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-SX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 1.25 Gigabit Ethernet,Gigabit Ethernet |
| Network Technology | 1000Base-SX,Fiber Channel |
| Maximum Distance Supported | 0.55 km |
| Maximum Data Transfer Rate | 1.25 Gbit/s |
| Physical Characteristics | |
| Height | 0.20" (5.08 mm) |
| Width | 0.50" (12.70 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 16.3 g |
| Miscellaneous | |
| Compatibility |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
Additional-pdf3
Additional-pdf4
[/custom-user-manual]
Warranty Infomartion
1 Year
