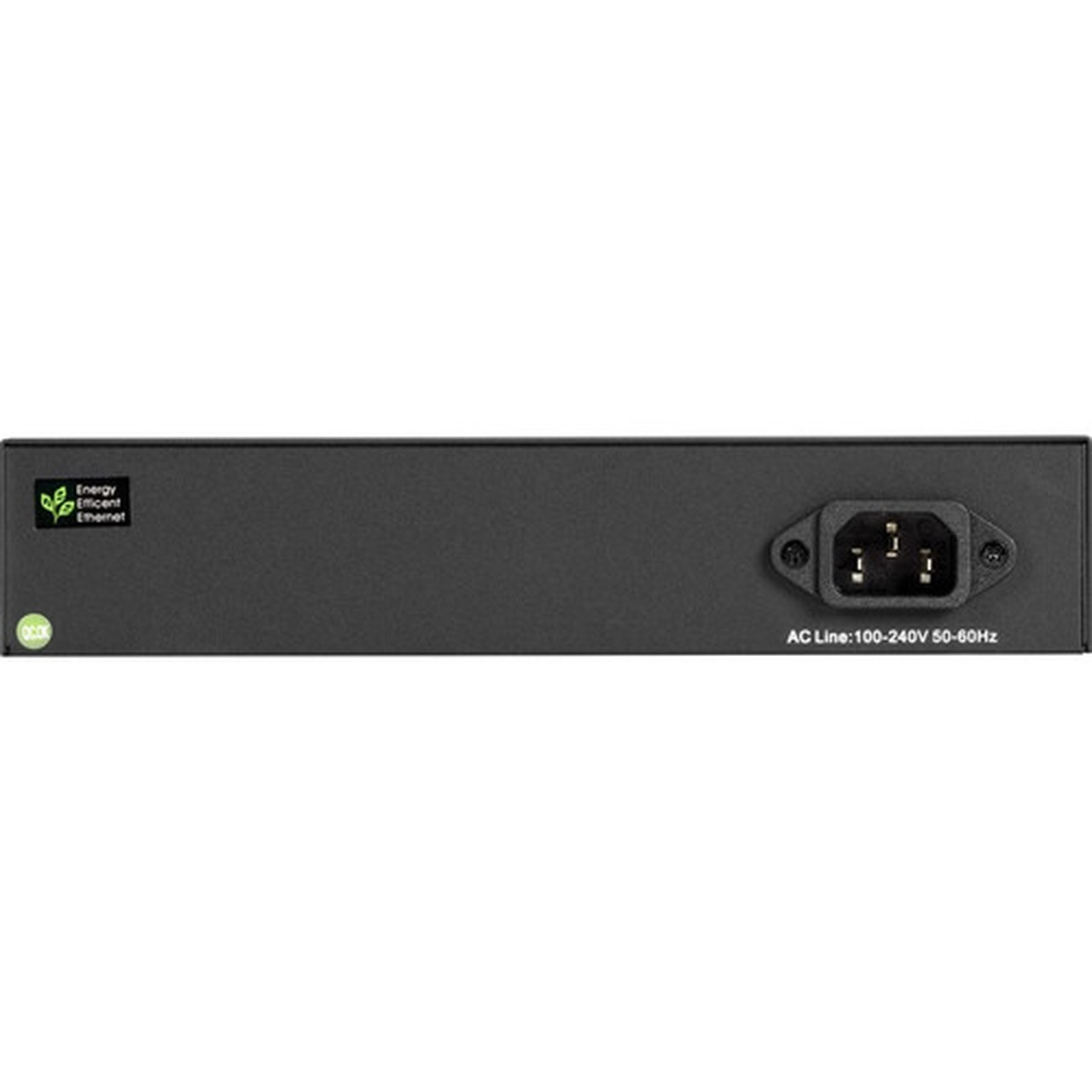

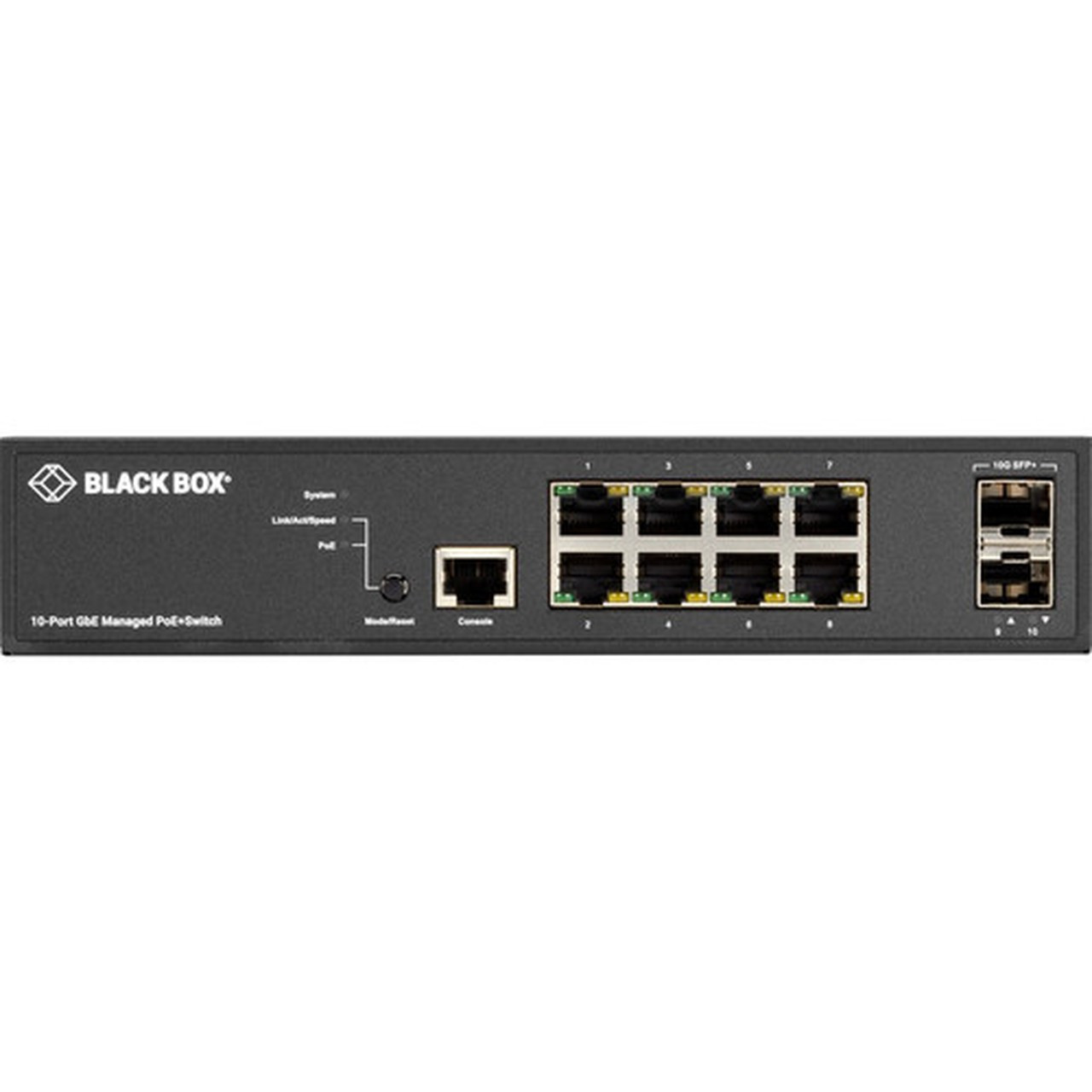

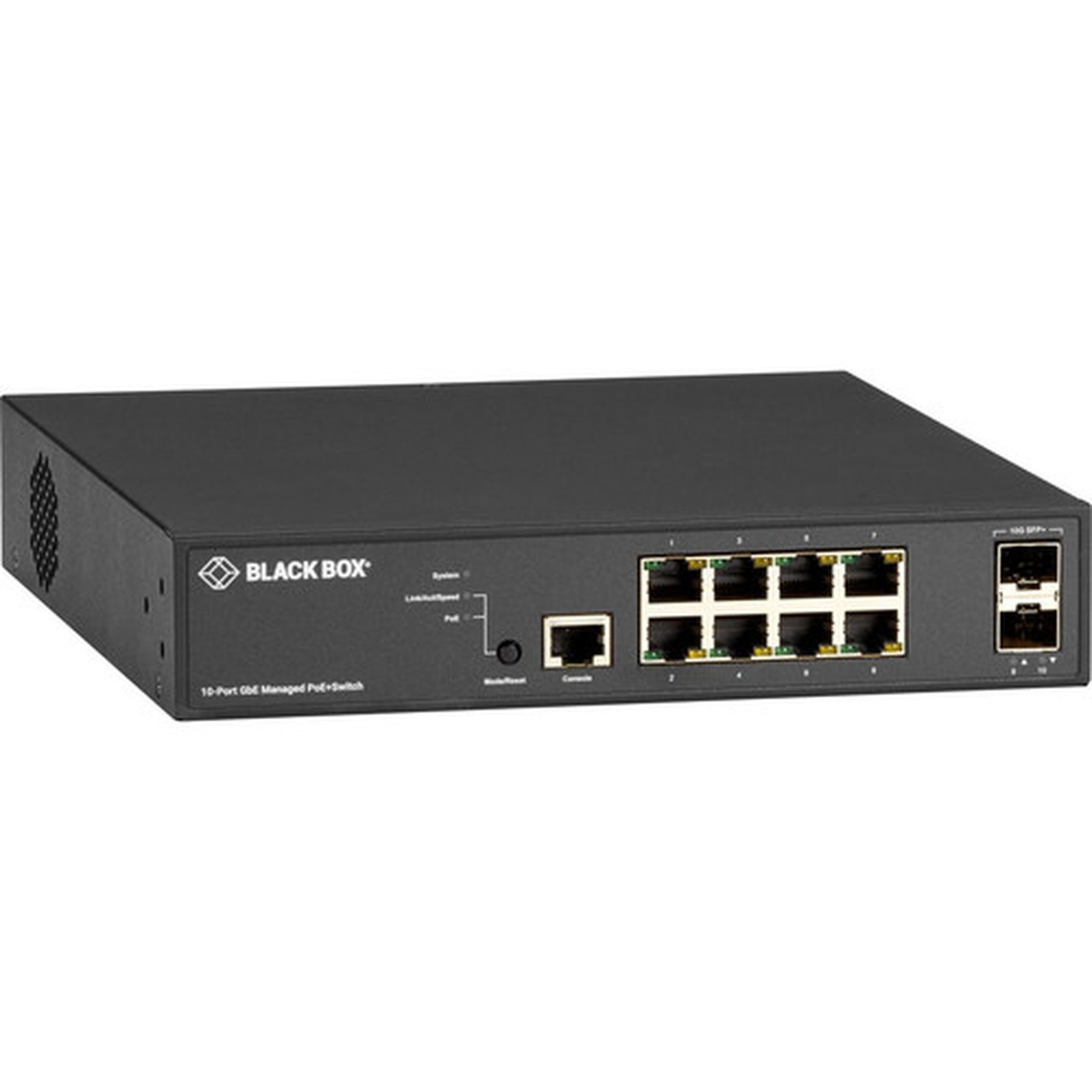

Black Box LPB3000 Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - TAA (LPB3010A)

Marketing Information:

The Gigabit Ethernet Managed Switches add high-speed ports while offering the management and security features your enterprise network needs. Provides 10/100/1000BASE-T UTP ports and 1G/10G SFP+ ports.

Fully Manageable
The switch is fully managed, supporting SNMP versions 1, 2c, and 3. The embedded RMON software agents support RMON groups 1 (history), 2 (statistics), 3 (alarms), and 9 (events).

The integral webserver enables web-based management via a web browser. This GUI interface enables switch configuration, system dashboard, maintenance, and monitoring.

The wide range of management and support features also includes dual image, port mirroring, LLDP, sFlow®, UPnP®, IPv6, SSH, RADIUS, DHCP Client/DHCPv6 Client, SNTP, cable diagnostics, ping, Syslog, and Telnet client with SSH security.

Support for VLAN and QoS
Support for up to four simultaneous VLANs enables you to segment traffic with port-based, 802.1Q tag-based, or MAC-based VLANs. VoIP traffic is automatically assigned to a voice-specific VLAN to maintain quality. 802.1p Layer 2 quality of service (QoS) enables prioritization of time-sensitive applications such as VoIP and video.

Secure
You get enterprise-class security features, too. 802.1X port-based network access control authenticates devices connecting to your network. The switch also supports SNMPv3 cryptographic security, SSH, and SSL. Plus, you can set up a guest VLAN that enables visitors to access the Internet without also giving them access to the corporate network.

10-GE Uplinks
This switch features 10-GE uplinks that increase backplane capacity.

Super-Fast Switch Control Processor
The Gigabit Ethernet Managed Switch has a powerful switch control processor that improves IGMP performance.

Green
The PoE+ Gigabit Managed Switch Eco features IEEE 802.3az energy-efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%.

Cable length detection adjusts signal strength to the cable length, reducing power consumption on shorter cable runs.

This product is covered by one or more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.

Total Number of Network Ports: 8

Uplink Port: Yes

Modular: Yes

Port/Expansion Slot Details: 8 x Gigabit Ethernet PoE+,2 x 10 Gigabit Ethernet SFP+ Expansion Slot

Media Type Supported: Optical Fiber,Twisted Pair

Ethernet Technology: Gigabit Ethernet,10 Gigabit Ethernet

Network Technology: 10/100/1000Base-T,10GBase-X

Total Number of Expansion Slots: 2.0

Expansion Slot Type: SFP+

Number of SFP+ Slots: 2

Layer Supported: 2

Manageable: Yes

PoE (RJ-45) Port: Yes

Form Factor: Wall Mountable

Package Contents:

• LPB3000 Ethernet Switch
• 1 x AC Power Cord
• 4 x Adhesive Rubber Feet
• 1 x Mounting Kit
• 1 x RJ-45 to DB9 Serial Console Cable

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Taiwan

TAA Compliant: Yes

Limited Warranty: 1 Year
