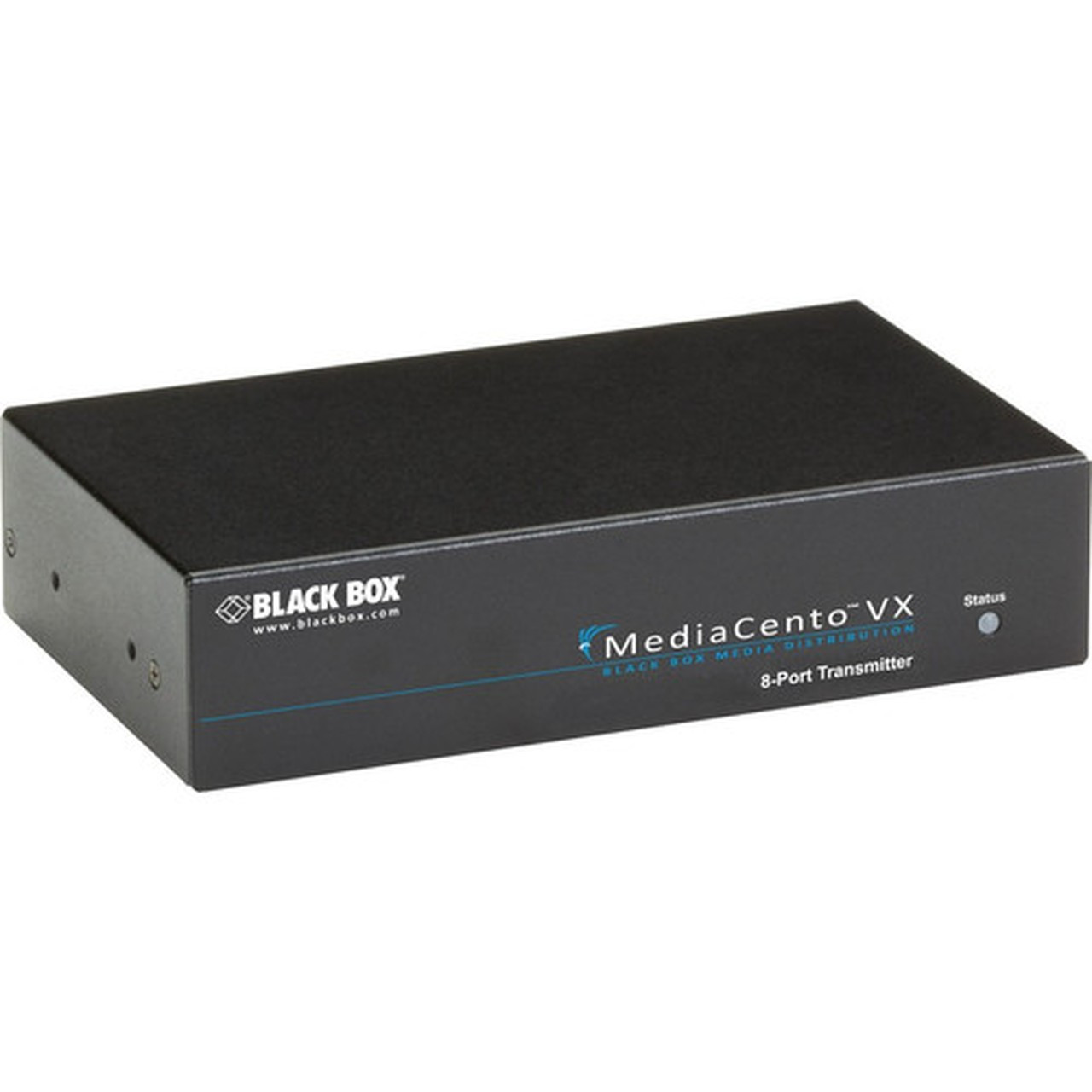

Black Box MediaCento VX 8-Port Transmitter - 1 Input Device - 984.25 ft (300000 mm) Range - 9 x Network (RJ-45) - 1 x VGA In - 1 x VGA (AVX-VGA-TP-TX-8)

Marketing Information:

Economically extend multichannel VGA video, stereo audio, and serial signals over CATx-and easily manage groups of ports.

• Use ordinary CATx cable instead of expensive VGA cable to extend high-quality multimedia.
• Broadcasts high-quality VGA plus audio and serial signals over standard UTP cabling.
• Features an icon-based GUI for easily managing groups of extender connections.

Connectivity Technology: Wired

Number of Input Devices Supported: 1

Maximum Operating Distance: 984.25 ft (300000 mm)

Graphics Modes: WUXGA

Maximum Video Resolution: 1920 x 1200

Network (RJ-45): Yes

VGA In: Yes

VGA Out: Yes

Number of Network (RJ-45) Ports: 9

Number of VGA Inputs: 1

Number of VGA Outputs: 1

Media Type Supported: Twisted Pair

Twisted Pair Cable Standard: Category 5

Transmitter Height: 1.60" (40.64 mm)

Transmitter Width: 6.75" (171.45 mm)

Transmitter Depth: 4" (101.60 mm)

Transmitter Weight (Approximate): 725.7 g

Package Contents:

• MediaCento VX 8-Port Transmitter
• Power Supply With 6-ft. (1.8-m) Cord
• 3.5-mm Stereo Audio Cable
• RJ-11 Control Cable
• RJ-11-to-DB9 Serial Converter
• Ground Cable
• 4 x Rubber Feet
• User Manual and Driver on CD

Country of Origin: Taiwan

Environmentally Friendly: Yes

Limited Warranty: 3 Year
