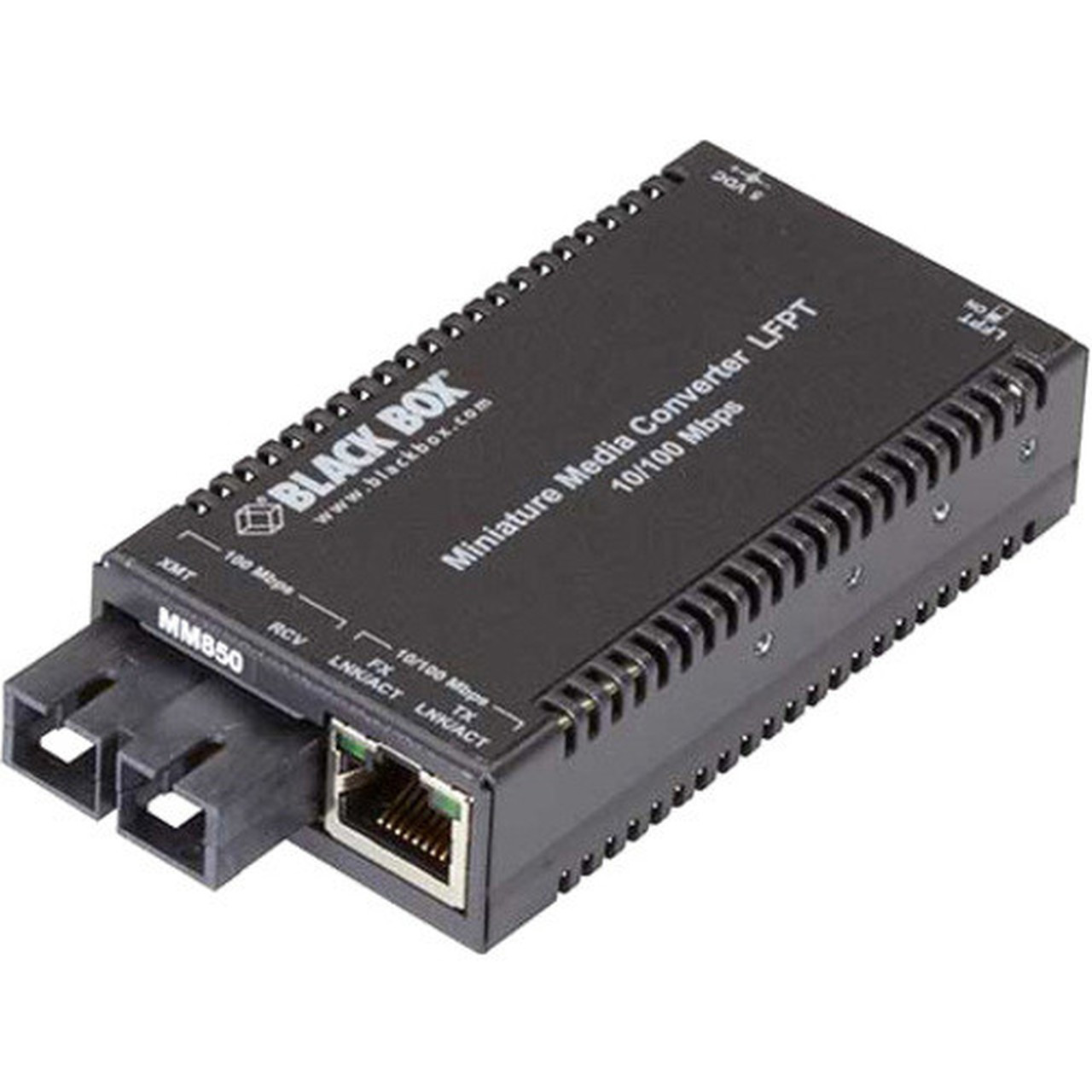

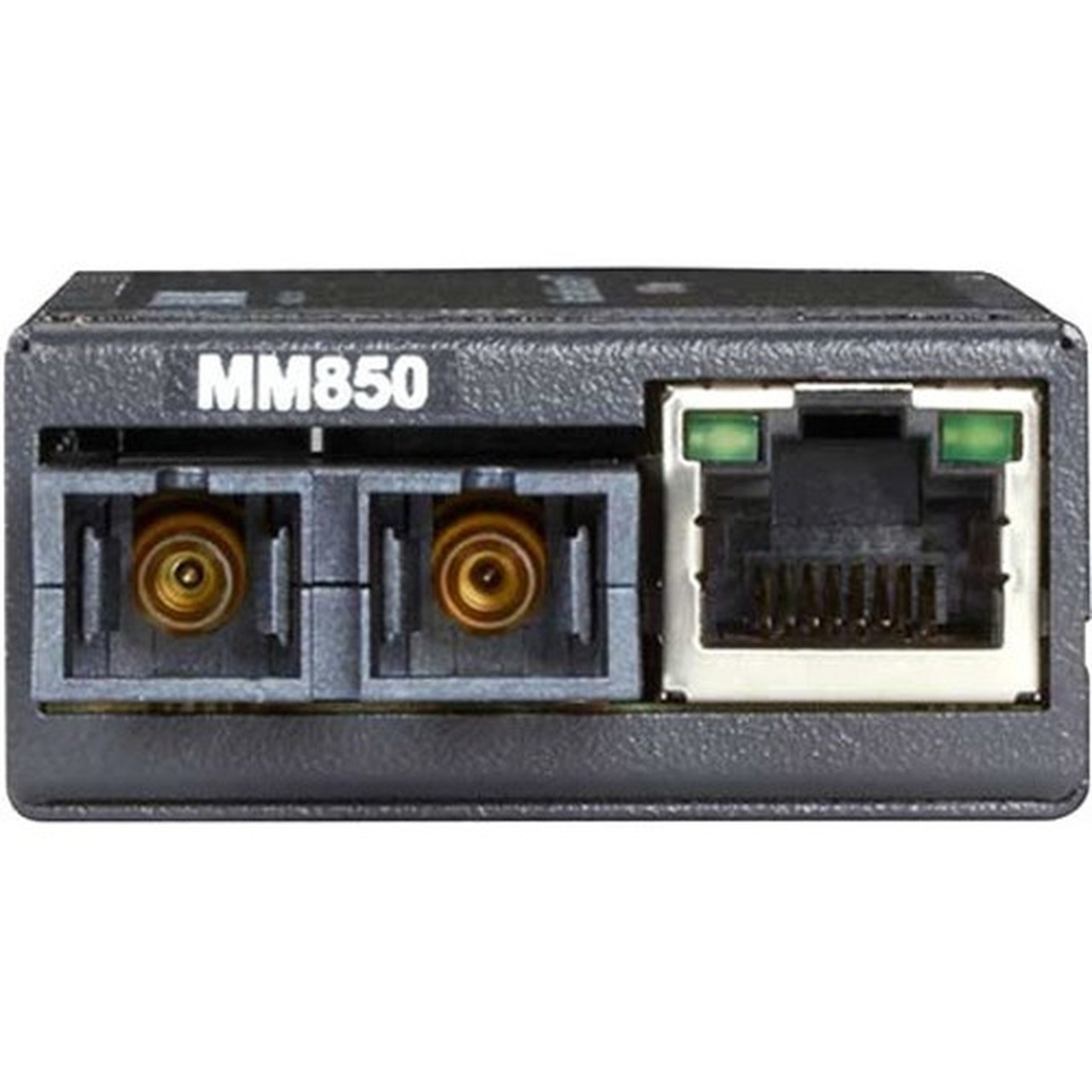

Black Box MultiPower Miniature Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - Fast - (LHC041A-R4)

Marketing Information:

Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC. The converters not only link 10- and 100-Mbps segments to fiber cabling, they also work as data rate converters, performing 10/100 autonegotiation on the twisted-pair port. Choose from multimode duplex, single-mode duplex, and single-mode single-strand duplex fiber versions. For extra versatility, you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (LHC021A), which plugs into a PC's USB port and is sold separately, or through the optional rackmount PowerTray (LHC018A-AC-R2).

Total Number of Ports: 2

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 1

Number of SC Ports: 1

SC Port Type: Duplex

Media Type Supported: Optical Fiber,Twisted Pair

Fiber Mode Supported: Multi-mode

Fiber Optic Wavelength: 850 nm

Maximum Distance Supported: 0.50 km

Fiber Optic Cable Standard: 50/125 µm,62.5/125 µm

Ethernet Technology: Fast Ethernet

Network Technology: 10/100Base-T,100Base-SX

Power Source: Power Supply

Form Factor: Desktop,Rack-mountable

Height: 1" (25.40 mm)

Width: 2" (50.80 mm)

Depth: 4.70" (119.38 mm)

Weight (Approximate): 544.3 g

Package Contents:

• MultiPower Miniature Transceiver/Media Converter
• AC Power Supply

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Taiwan

TAA Compliant: Yes

Limited Warranty: 6 Year

Additional Warranty Information:

Double Diamond™ Warranty (Standard)

Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.

The Double Diamond Warranty is our warranty that protects your Black Box® brand products from accidental damage, including drops, water, and power surges.

The FST ETH MED CONV 10/100Mbps COP to 100Mbps MM FBR 850nm 0.5km SC comes with a standard 6 Year Double Diamond™ Warranty (Standard) warranty already included.

During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!
