Black Box Pure Networking Transceiver Media Converter With RJ45 Network And SC Duplex Port Multimode 850 Nm Fiber LGC211A LGC211A-R2
Write a Review
Black Box
Black Box Pure Networking Transceiver Media Converter With RJ45 Network And SC Duplex Port Multimode 850 Nm Fiber LGC211A LGC211A-R2
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance

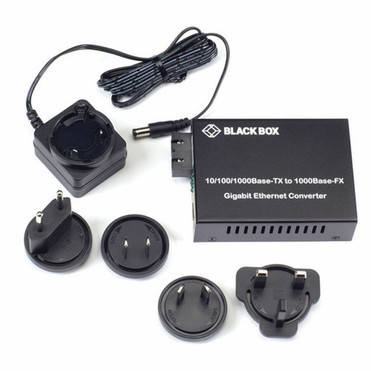

- Pure Networking Transceiver Media Converter
- 1 x 5-VDC Power Adapter (US, EU, UK and AU Power Clips)
Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media Type Supported: Optical Fiber,Twisted Pair
Fiber Mode Supported: Multi-mode
Fiber Optic Cable Wavelength: 850 nm
Maximum Distance Supported: 0.55 km (0.34 Mile)
Fiber Optic Cable Core/Cladding Specification: 50/125 µm,62.5/125 µm
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-TX,1000Base-SX
Power Source: AC Adapter
Plug/Connector Type: Barrel
Form Factor: Standalone,Rack-mountable
Height: 1" (25.40 mm)
Width: 3.70" (93.98 mm)
Depth: 2.70" (68.58 mm)
Weight (Approximate): 11.20 oz (317.51 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 3 Year
Additional Warranty Information:
Double Diamond Warranty (Standard)
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over optical fiber cable
- Rack mounting enables you to organize wires & secure cables for professional installation
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LGC211AR2 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | Pure Networking |
| Product Name | Pure Networking Transceiver Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm,62.5/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX,1000Base-SX |
| Power Description | |
| Power Source | AC Adapter |
| Plug/Connector Type | Barrel |
| Physical Characteristics | |
| Form Factor | Standalone,Rack-mountable |
| Height | 1" (25.40 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 2.70" (68.58 mm) |
| Weight (Approximate) | 11.20 oz (317.51 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Double Diamond Warranty (Standard) |
[/custom-specifications]
[custom-options]
| Product | Black Box Pure Networking Media Converter Chassis - 2 x Number of Power Supplies Installed - 14 Slot - 2U - Rack-mountable |
| SKU | LHGC-RACK |
| Sale Price | $417.38 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Information
3 Year| Qty | Price | Available |
|---|
