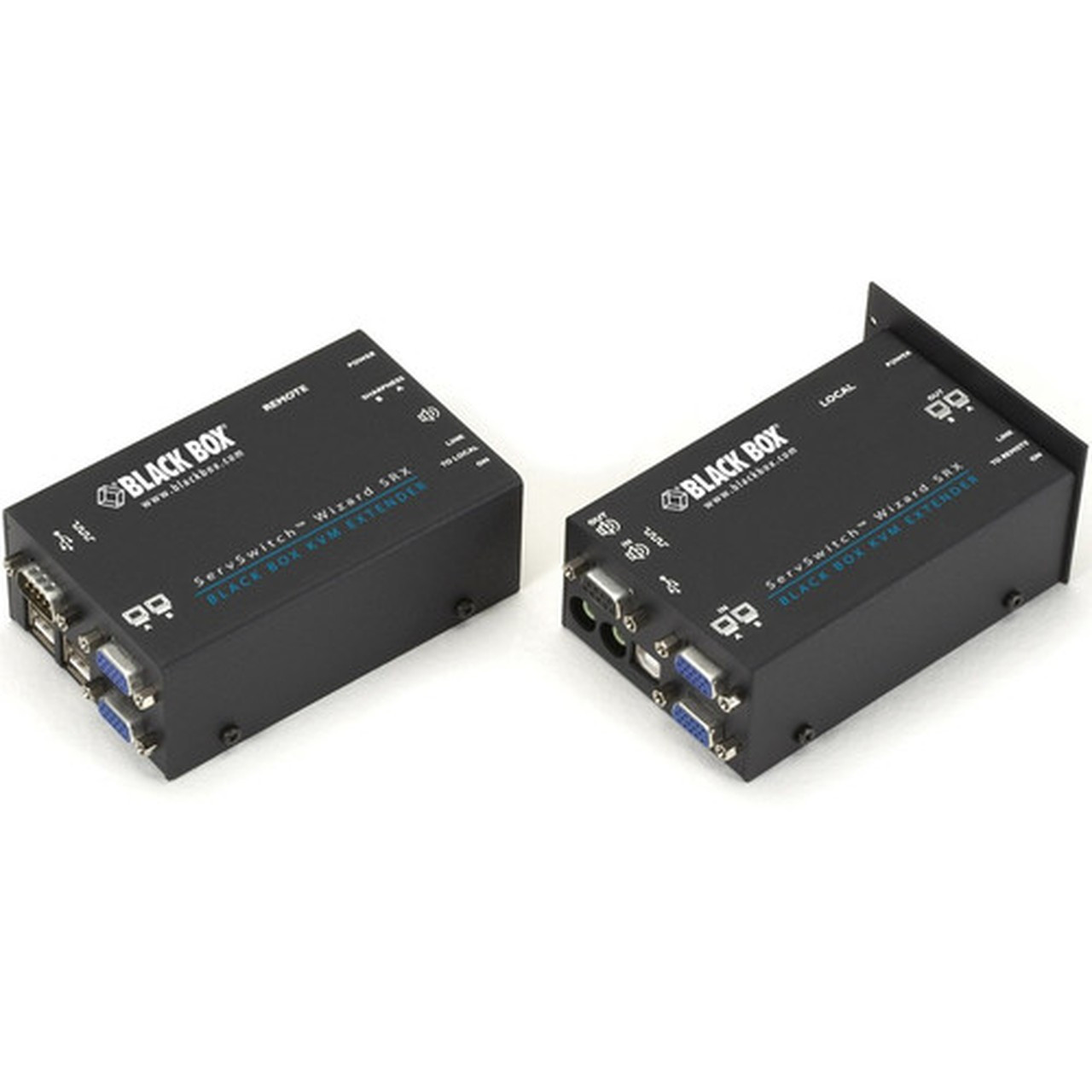

Black Box ServSwitch Wizard USB SRX KVM Extenders, Dual-Video, USB, Audio, and RS-232 - 1 Computer(s) - 1 Local User(s) - 1 Remote - - (ACU5052A)

Marketing Information:

The power of transparent USB
ServSwitch Wizard™ USB SRX KVM Extender, Dual-Video, from Black Box combines VGA, USB 1.1 or USB 2.0, audio, and RS232 and sends them up to 164 feet across a single CATx cable. It's easy to fine-tune the video image on the remote unit and get crystal-clear stereo audio and transparent USB.

DDC EDID read and store support
Modern graphics adapter cards - even with analog output - require the presence of Display Data Channel (DDC) information. Without it, they output low-quality video or none at all. The ServSwitch Wizard USB SRX Extender reads the DDC information from the attached display and stores it in the local unit's non-volatile memory.

Small form factor
The ServSwitch Wizard USB SRX KVM Extender's compact chassis enables you to mount it side by side in the Rackmount Chassis for ServSwitch KVM Extender (ACU5000A). Use it to mount up to eight dual-video versions in just 2U.

Support for RS232
This model of the SRX series uses two CATx links to transmit the signals. The second video link carries a transparent RS232 port up to 19.2 kbps.

Local access
The local unit has audio and VGA feed-through, giving you local access just by plugging a keyboard and mouse directly into the spare PC USB ports.

Connectivity Technology: Wired

Number of Computers Supported: 1

Number of Local Users Supported: 1

Number of Remote Users Supported: 1

Maximum Operating Distance: 164.04 ft (50000 mm)

Maximum Video Resolution: 1920 x 1440

Network (RJ-45): Yes

USB: Yes

VGA: Yes

Number of VGA Ports: 6

Number of Network (RJ-45) Ports: 4

Number of USB Ports: 5

Input Voltage: 110 V AC,220 V AC

Form Factor: Rack-mountable

Transmitter Height: 2" (50.80 mm)

Transmitter Width: 2.90" (73.66 mm)

Transmitter Depth: 4.90" (124.46 mm)

Receiver Height: 2" (50.80 mm)

Receiver Width: 2.90" (73.66 mm)

Receiver Depth: 4.90" (124.46 mm)

Transmitter Weight (Approximate): 226.8 g

Receiver Weight (Approximate): 226.8 g

Package Contents:

• Local Unit
• Remote Unit
• Power Supply
• IEC 320 Power Cord
• 2 x VGA Cables
• USB Cable A-B
• Audio Cable
• DB9 Serial Cable
• Mounting Plate for Local or Remote Unit
• Safety Guide

Environmentally Friendly: Yes

Country of Origin: United Kingdom

Limited Warranty: 2 Year
