Black Box

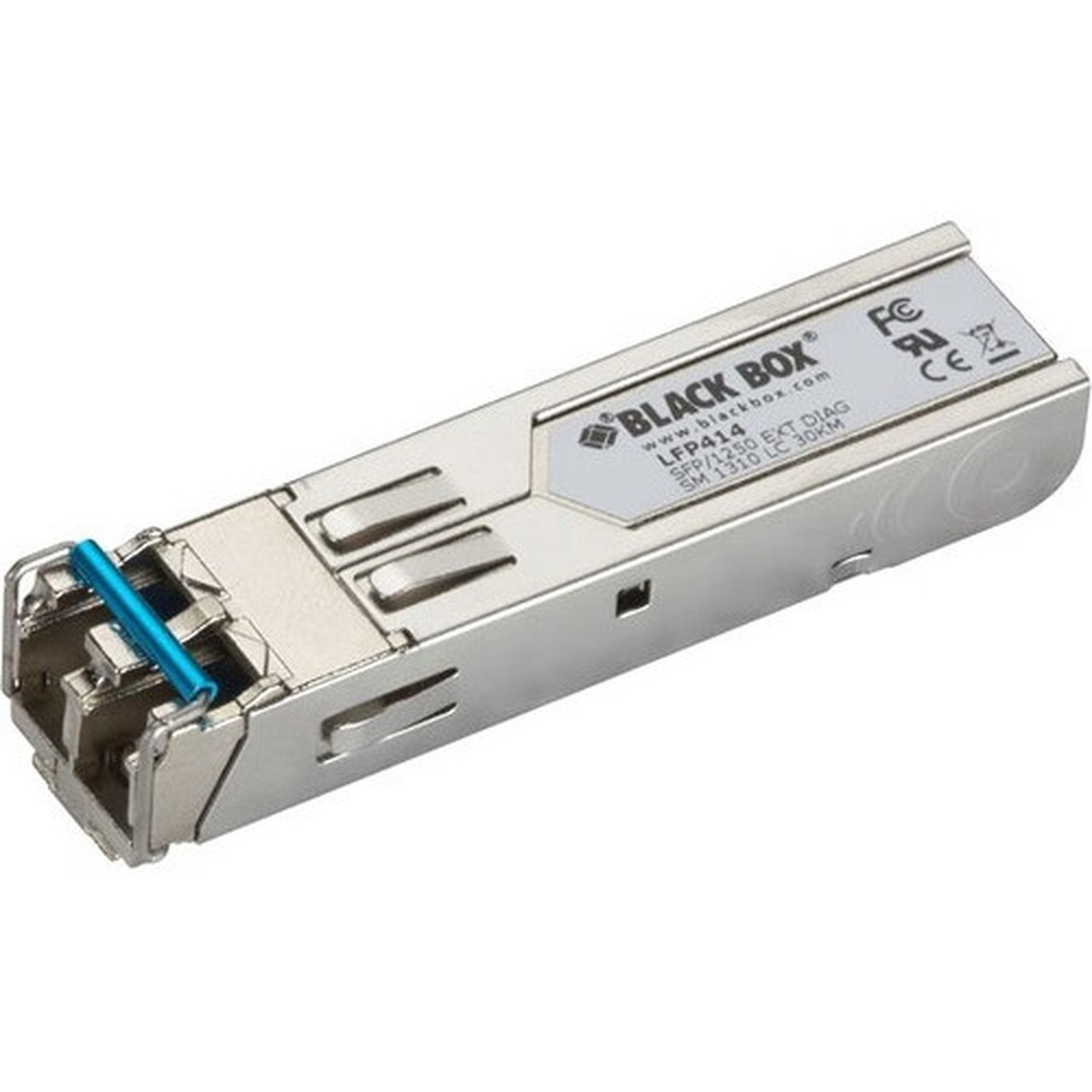

Black Box SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, LC, 30 km - For Data Networking, Optical Network - 1 x (LFP414)
- Support for throughput up to 1250 Mbps makes this SFP ideal for use with high-speed applications such as 1000-Mbps Ethernet.
- Reports basic link characteristics such as SFP type, length of fiber link, wavelength, and bit rate.
- Extended diagnostics enable this SFP to also report information such as temperature, TX and RX power, voltage, and bias current.
- Hot-pluggable interface enables you to change SFPs on the fly when your network requirements change.
- Compatible with SFP slots on most network devices. For details, contact our FREE Tech Support.
Marketing Information:
Application/Usage: Data Networking,Optical Network
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC 1000Base-X Network
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-X
Maximum Distance Supported: 30 km
Form Factor: Hot-pluggable
Height: 2.20" (55.88 mm)
Width: 0.60" (15.24 mm)
Depth: 0.50" (12.70 mm)
Weight (Approximate): 16.3 g
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Limited Warranty: 1 Year
- With 1000Base-X technology, get up to 1000Mbps data transfer rate over supported network cable
- Gigabit Ethernet port for ultra-fast network speeds
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LFP414 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Name | SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, LC, 30 km |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 1000Base-X Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Maximum Distance Supported | 30 km |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Height | 2.20" (55.88 mm) |
| Width | 0.60" (15.24 mm) |
| Depth | 0.50" (12.70 mm) |
| Weight (Approximate) | 16.3 g |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
Warranty Infomartion
1 Year
