- PDU provides power control as remote controlled relay & load monitoring
- You can always avoid potential overloads with PDU meter

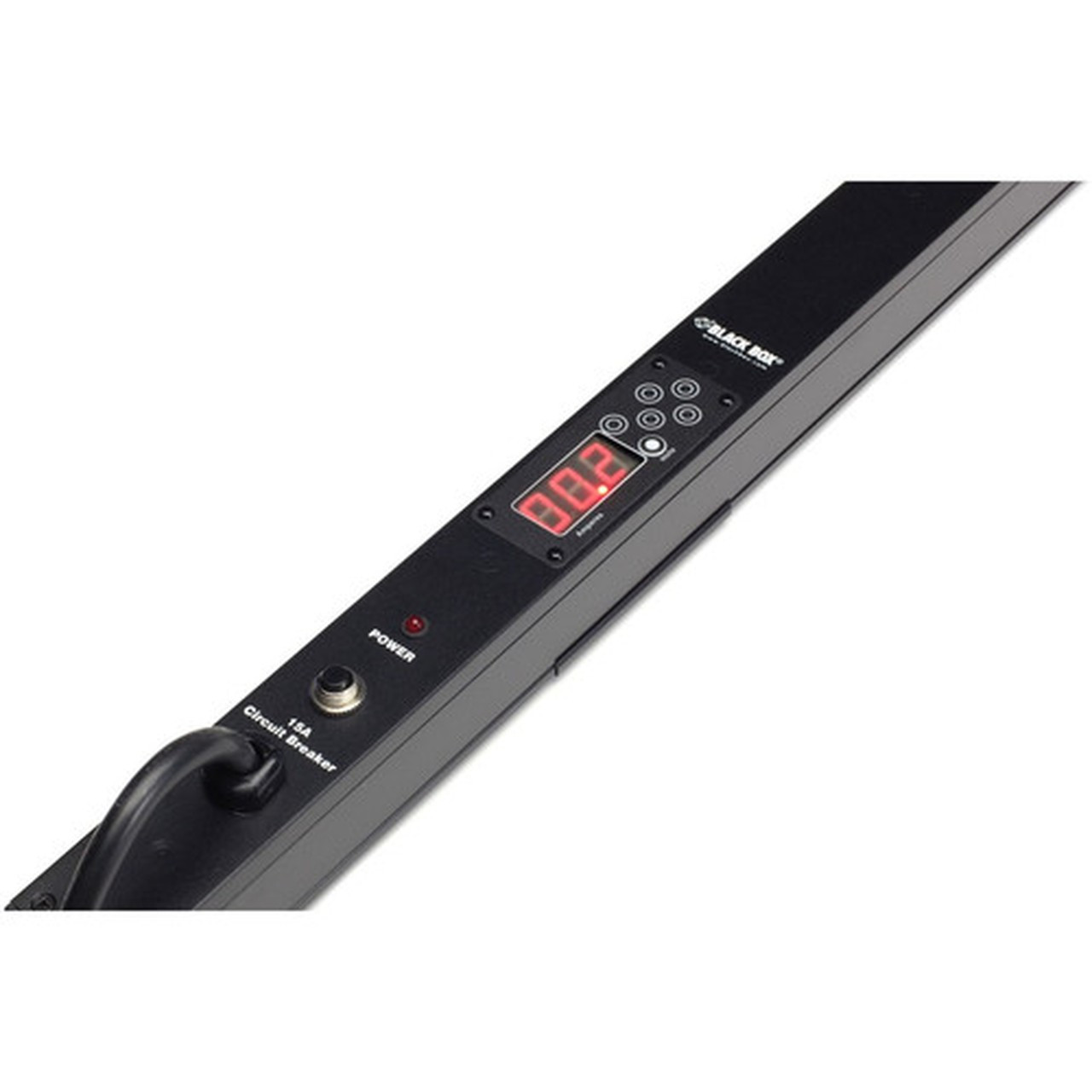

Marketing Information: The metered PDU LCD display shows the current power draw in amps. The metered PDU only has one function button, MUTE, located next to the display. The metered PDU's alarm sounds when the current draw reaches 80% of capacity. The alarm can be turned off by pressing the MUTE button. When the current draw exceeds 90% of the maximum current rating, the alarm cannot be muted, and the PDU alarms until the current draw is reduced.PDU Type: MeteredPlug/Connector Type: NEMA 5-15PReceptacle Type: NEMA 5-15RReceptacle Detail: 24 x NEMA 5-15RProtection Type: Circuit ProtectionInput Voltage: 120 V ACInput Current: 15 AMounting Orientation: VerticalMount Type: - Cabinet-mountable
- Rack-mountable
Height: 3" (76.20 mm)Width: 4.75" (120.65 mm)Depth: 65" (1651 mm)Length: 60" (1524 mm)Weight (Approximate): 2.27 kgPackage Contents: - Vertical Metered PDU - 15-Amp Single Circuit, 120V, 24-Outlet, 5-15R, 5-15P
- 2 x Mounting Brackets
- 4 x Mounting Screws
- Specification Sheet
Environmentally Friendly: YesCountry of Origin: ChinaLimited Warranty: 1 Year
[custom-specifications]
SpecificationsManufacturer: Black Box Corporation
Manufacturer Part Number: PDUMV24-S15-120V
Manufacturer Website Address: http://www.blackbox.com
Brand Name: Black Box
Product Name: Vertical Metered PDU - 15-Amp Single Circuit, 120V, 24-Outlet, 5-15R, 5-15P
Product Condition: Refurbished
Packaged Quantity: 1
Product Type: PDU
Technical InformationPDU Type: Metered
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 24 x NEMA 5-15R
Protection Type: Circuit Protection
Power DescriptionInput Voltage: 120 V AC
Input Current: 15 A
Physical CharacteristicsMounting Orientation: Vertical
Mount Type:
- Cabinet-mountable
- Rack-mountable
Height: 3" (76.20 mm)
Width: 4.75" (120.65 mm)
Depth: 65" (1651 mm)
Length: 60" (1524 mm)
Weight (Approximate): 2.27 kg
MiscellaneousPackage Contents:
- Vertical Metered PDU - 15-Amp Single Circuit, 120V, 24-Outlet, 5-15R, 5-15P
- 2 x Mounting Brackets
- 4 x Mounting Screws
- Specification Sheet
Environmentally Friendly: Yes
Country of Origin: China
WarrantyLimited Warranty: 1 Year
