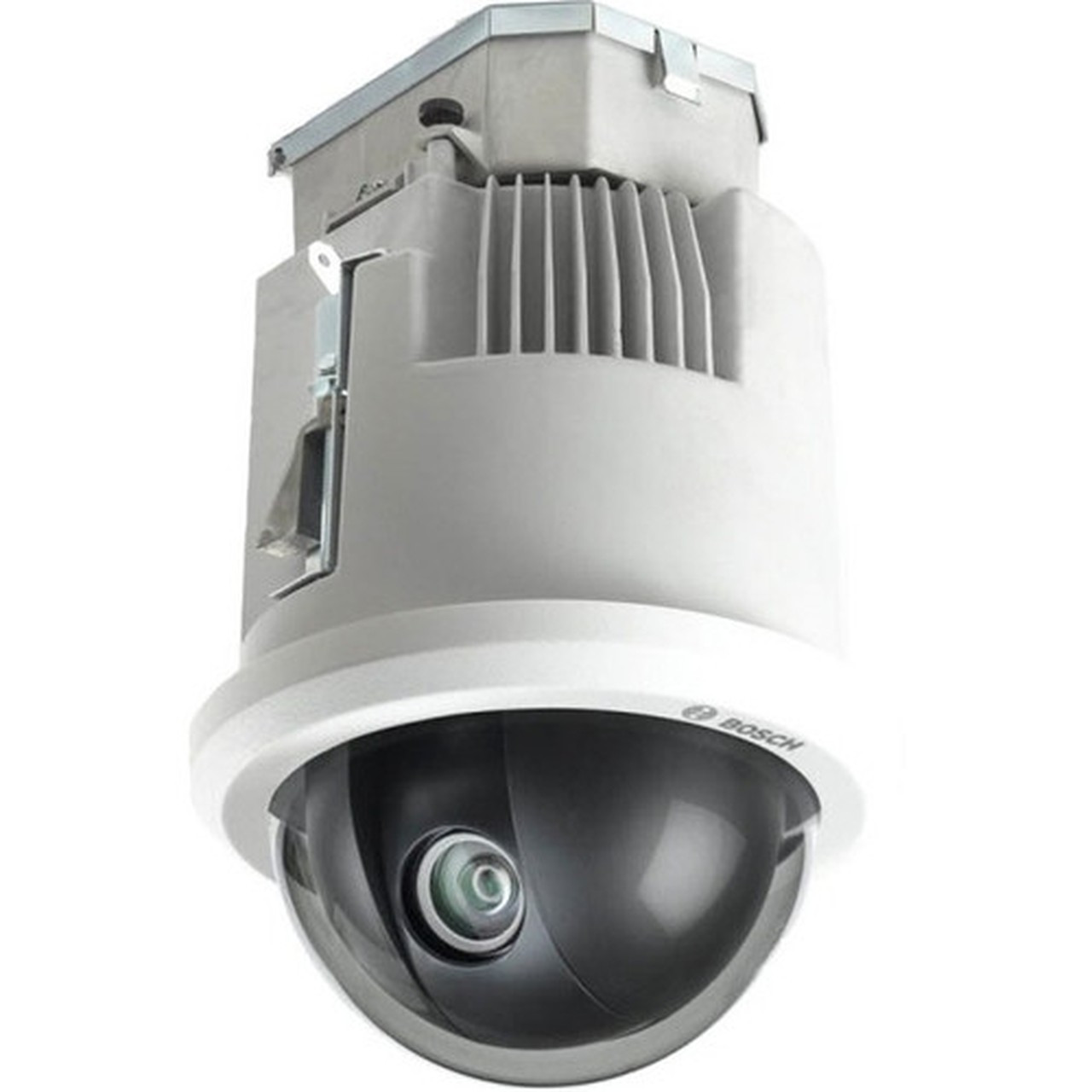

Bosch AutoDome IP Starlight 2 Megapixel Indoor/Outdoor HD Network Camera - 1 Pack - Dome - TAA Compliant - H.265, H.264, MJPEG - 1920 (NDP-7512-Z30CT)

Marketing Information: The AUTODOME IP starlight 7000i camera incorporates the latest in Video Analytics, starlight technology, and video streaming. With starlight imaging technology for excellent low-light sensitivity and the most robust Intelligent Video Analytics on the market, the camera delivers unmatched picture quality. Even under the most challenging light conditions, the 30x PTZ dome camera delivers highdefinition (HD) 1080p video. Easy to install, the camera is available in either a field-proven, outdoor pendant housing or an indoor, in-ceiling housing.

Functions

Exceptional low-light performance
The latest sensor technology combined with the sophisticated noise suppression results in an exceptional sensitivity in color. The low-light performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light.

High dynamic range
The dynamic range of the camera is outstanding and is obvious in real-world performance comparisons. In extended dynamic range mode, the camera uses an electronic shutter to capture four images with different exposure time and reproduce a high-contrast frame. The result is that you can view details in both the bright areas (highlights) and the dark areas (shadows) of a scene at the same time. You can easily distinguish objects and features (for example, faces) with bright backlight.

H.265 high-efficiency video encoding
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 is the new compression standard of choice for IP video surveillance systems.

Snap to zoom
Drawing a box in the image will trigger the camera to zoom to the correct position.

Intelligent Video Analytics on the edge
With built-in video content analysis (VCA), the camera reinforces the Intelligence-at-the-Edge concept where edge devices become increasingly intelligent. The camera comes with the state-of-the-art VCA method by Bosch, Intelligent Video Analytics, that reliably detects, and analyzes moving objects while suppressing unwanted alarms from spurious sources in the image. With this method, the camera is able to detect idle and removed objects as well as loitering, multiple line crossing, and trajectories. This method also supports BEV (Bird's Eye View) People counting.

Video analytics while camera is moving
Outside of pre-positions and even while the PTZ camera is moving, whether on guard tours or manually, the Intelligent Video Analytics application can detect and start alarms when objects are in alarm fields. These alarm fields are defined once across all PTZ camera views. The camera can automatically trigger an alarm if any part of a field within the camera's view becomes active while on a guard tour sweeping across the monitored areas.

Camera Trainer
Based on examples of target objects and non-target objects, the new Camera Trainer program uses machine learning to allow the user to define objects of interest and generate detectors for them. In contrast to the moving objects that the Intelligent Video Analytics application detects, the Camera Trainer program detects both moving and non-moving objects and classifies them immediately. Using Configuration Manager, you can configure the Camera Trainer program using both live video as well as recordings available through the respective camera. The resulting detectors can be downloaded and uploaded for distribution to other cameras.

HD Recording: Yes

Recording Formats: Full HD

Night Vision: Yes

Image Sensor Type: CMOS

Image Sensor Size: 1/2.8"

Color Supported: Color,Monochrome

Field of View: 2.3° to 64.7°

Effective Camera Resolution: 2.3 Megapixel

Video Formats: H.265,H.264,MJPEG

Maximum Video Resolution: 1920 x 1080

Maximum Frame Rate: 60 fps

Lens Type: Zoom

Minimum Focal Length: 4.3 mm

Maximum Focal Length: 129 mm

Lens Included: Yes

Minimum Aperture: f/4.7

Maximum Aperture: f/1.6

Optical Zoom: 30x

Shortest Shutter Speed: 1/30000 Second

Longest Shutter Speed: 1/1 Second

Connectivity Technology: Wired

Remote Management: Yes

Ethernet Technology: Ethernet

Protocols: IPv4,IPv6,UDP,TCP,HTTP,HTTPS,RTP/RTCP,ICMP,ICMPv6,RTSP,FTP,ARP,DHCP,LLDP,CHAP,SOAP,DNS,DNSv6,DDNS,SNMPv1 (MIB2),SNMPv3 (MIB2),APIPA,UPnP (SSDP),UPnP,iSCSI,SMTP

Storage Type: Memory Card

Network (RJ-45): Yes

Input Voltage: 24 V AC

Power Source Type: AC

Color Family: White

Product Color: White

Mount Type: Corner Mount,Pole Mount,Pipe Mount,Roof Mount,Ceiling Mount

Form Factor: Dome

Durability: Corrosion Resistant

Height: 11.79" (299.40 mm)

Width: 8.82" (224 mm)

Diameter: 8.82" (224 mm)

Weight (Approximate): 2.60 kg

Minimum Operating Temperature: 14°F (-10°C)

Maximum Operating Temperature: 104°F (40°C)

Maximum Operating Humidity: 100%

Features: SD Card Local Storage,Day/Night,Privacy Masking,Auto Gain Control,White Balance,Wide Dynamic Range,Noise Reduction,Defog

Indoor/Outdoor: Indoor/Outdoor

Ingress Protection Rating: IP54

TAA Compliant: Yes

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
