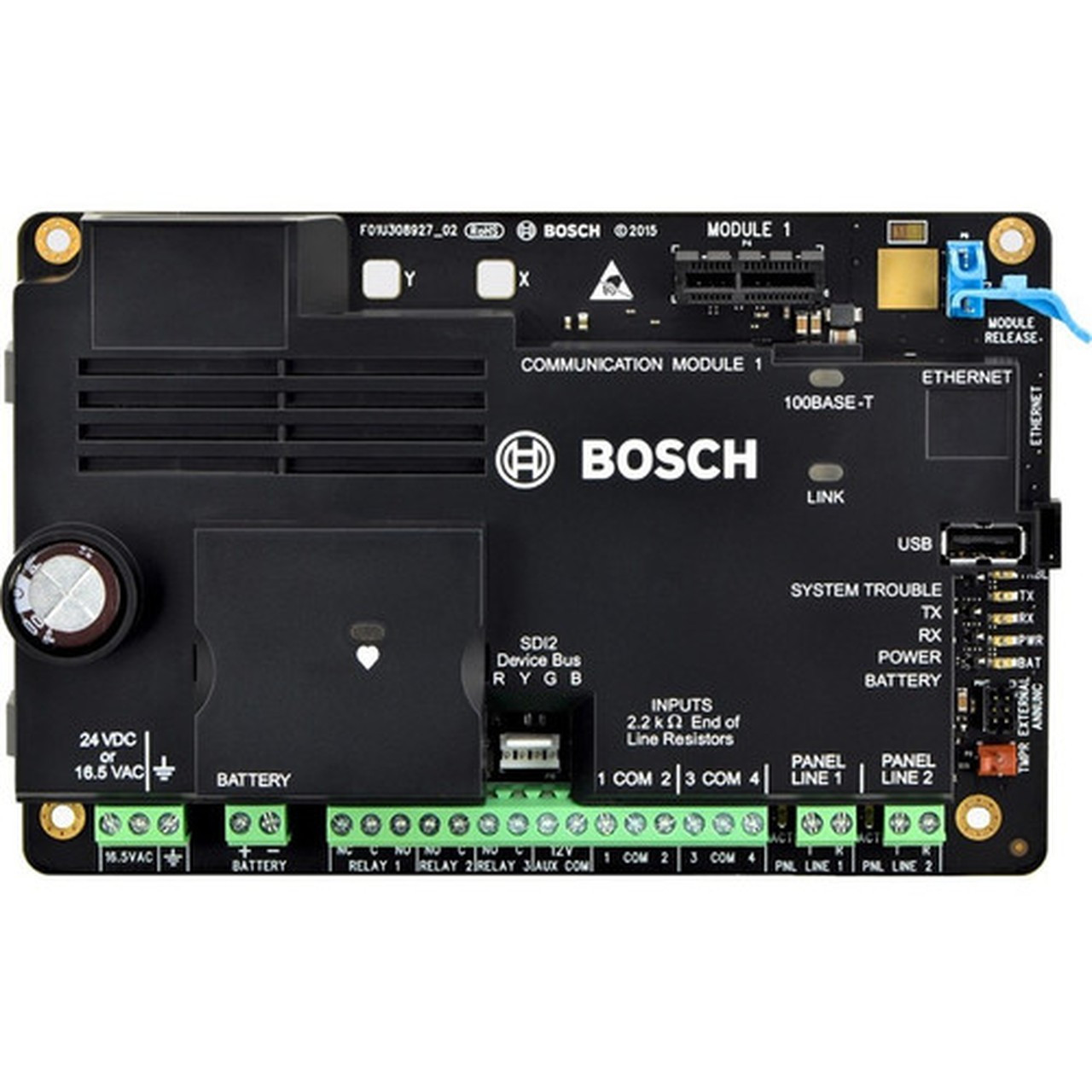

Bosch B465 Universal Dual Path Communicator - For Control Panel (B465)

Marketing Information: The B465 Conettix Universal Dual Path Communicator converts the Public Switch Telephone Network (PSTN) digital dialer, or dry contact outputs from an intrusion/ fire control panel to an IP signal for transmission over the Ethernet or cellular network. The B465 Conettix Universal Dual Path Communicator is UL 864 10th Edition approved per NFPA 72 version 2013.
The module can use its built-in Ethernet connection, and/or an optional Conettix plug-in cellular module (B440/B441/B442/B443) to send reports to the central station receiver.
Automation programming for the supported control panel remains unchanged with the installation of the B465 module, thus simplifying the installation process This allows for a smooth transition from the PSTN realm into IP. All messages generated internally by the B465 are shown in Contact ID format at the central station.
The module can be powered from a 16.5 VAC transformer or 24 VDC power supply.

Device Supported: Control Panel

Input Voltage: 24 V DC

Height: 3.11" (78.99 mm)

Width: 5.03" (127.76 mm)

Depth: 1.50" (38.10 mm)

Package Contents:

• B465 Universal Dual Path Communicator
• 1 x Hardware Pack
• 1 x Quick Start Guide (hardcopy)
• 1 x Wiring Label (hardcopy)
• 1 x Literature (mini-CD)

Additional Information:

• Compatible with any control panel using Contact ID,SIA, Pulse 3/1 or Pulse 4/2 communication formats (auto detecting)
• No control panel reprogramming required to install
• Supports Ethernet directly and optional plug-in cellular communication technologies in single, or multi-path configurations
• Supports four configurable inputs and three configurable outputs
• Approved for Commercial Fire/Burglary applications as sole, primary, or secondary communication path

Compatibility: Compatible PSTN Input Formats:

• Ademco Contact ID (SIA DC-05) +10 digit account codes
• Pulse 3/1, 3/1 Checksum (2300 Hz ACK Tone)
• Pulse 3/1, 3/1 Checksum (1400 Hz ACK Tone)
• Pulse 4/2 (2300 Hz ACK Tone)
• Pulse 4/2 (1400 Hz ACK Tone)
• SIA (SIA8, SIA20) - 110 and 300 baud

• D6600
• D6100i
• D6100IPv6

• B440 Conettix Plug-in Communicator,Cellular (3G)
• B441 Conettix Plug-in CDMA CellularCommunicator
• B442 Conettix Plug-in GPRS CellularCommunicator
• B443 Conettix Plug-in HSPA+ CellularCommunicator

• B46 External Annunciator

• B10 Medium Control Panel Enclosure
• B10R Medium Control Panel Enclosure(Red)
• B11 Small Control Panel Enclosure
• B11R Small Control Panel Enclosure(Red)
• D8103 Universal Enclosure
• D8108A Attack Resistant Enclosure

• D1640 transformer 120 VAC input,16.5 VAC, 40 VA output plug-in
• D1640-CA transformer 120 VAC input,16.5 VAC, 40 VA output plug-in
• D1640-120WI transformer 120 VAC input, 16.5 VAC, 40 VA output wired in

Certifications & Standards:

• UL
• FCC
• CSFM
• NIST FIPS 197 AES
• ULC

Country of Origin: China
