Device Supported: Control PanelInput Voltage: 12 V DCProduct Color: BlackProduct Material: - Polymethyl Methacrylate (PMMA)
- ABS Plastic
Height: 4.70" (119.38 mm)Width: 6.20" (157.48 mm)Depth: 0.65" (16.51 mm)Weight (Approximate): 320 gAdditional Information: - Display window:Touch screen Multi-line messages
- Indicators Power indicator LED Status indicators Main icon Warning and indicating tones
- Inputs 4 (four) 1k Ω supervised inputs
- Output 1 (one) NO (normally open) contact
- Relative humidity 5% to 93% at +32°C (+90°F) non-condensing
- Temperature (operating) 0°C to +50°C (+32°F to +122°F)
- Current with proximity reader disabled Standby: 200 mA Alarm: 300 mA
- Current with proximity reader enabled Standby: 300 mA Alarm: 400 mA
- Voltage (input) 12 VDC nominal
- Terminal wire size:18 AWG to 22 AWG (1.02 mm to 0.65 mm)
- SDI2 wiring with prox detector disabled Maximum distance - wire size (unshielded wire only): 200 ft (61 m) - 22 AWG (0.65 mm) 520 ft (159 m) - 18 AWG (1.02 mm)
- SDI2 wiring with prox detector enabled Maximum distance - wire size (unshielded wire only): 150 ft (46 m) - 22 AWG (0.65 mm) 390 ft (119 m) - 18 AWG (1.02 mm)
- On-board points voltage ranges Open: 2.2 to 5.0 VDC Normal: 1.4 to 1.8 VDC Short: 0.0 to 1.0 VDC Short circuit current: 2.3 mA
- Relay contact rating 24 VDC, 1 A, power factor: 1
Certifications & Standards: CSFM
[custom-specifications]
SpecificationsManufacturer: The Bosch Group
Manufacturer Part Number: B942
Manufacturer Website Address: http://www.bosch.com
Brand Name: Bosch
Product Model: B942

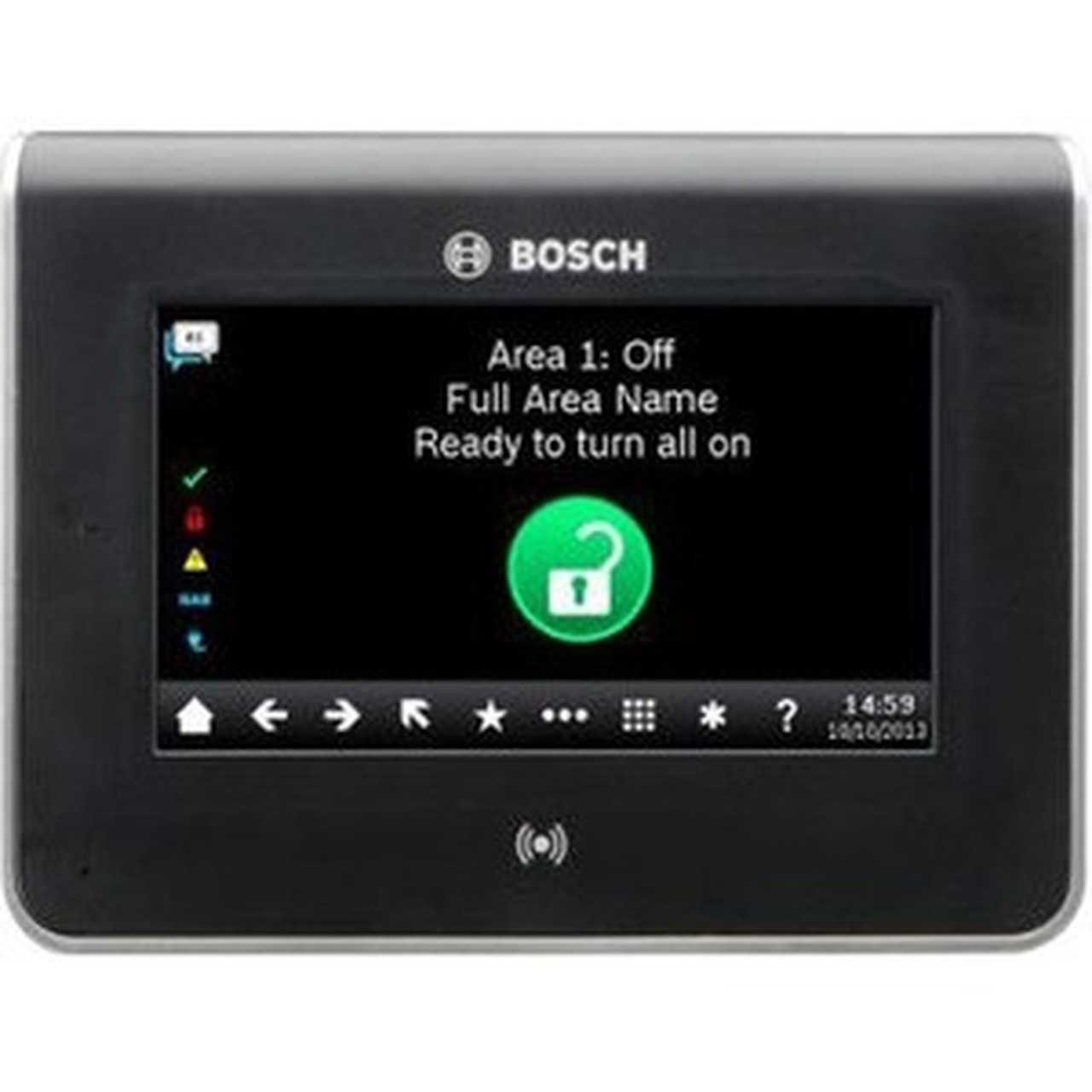

Product Name: B942 Touch Screen KP Prox/Input/Output, Black
Product Type: Security Touchscreen Keypad
Technical InformationDevice Supported: Control Panel
Power DescriptionInput Voltage: 12 V DC
Physical CharacteristicsProduct Color: Black
Product Material:
- Polymethyl Methacrylate (PMMA)
- ABS Plastic
Height: 4.70" (119.38 mm)
Width: 6.20" (157.48 mm)
Depth: 0.65" (16.51 mm)
Weight (Approximate): 320 g
MiscellaneousAdditional Information:
- Display window:Touch screen Multi-line messages
- Indicators Power indicator LED Status indicators Main icon Warning and indicating tones
- Inputs 4 (four) 1k Ω supervised inputs
- Output 1 (one) NO (normally open) contact
- Relative humidity 5% to 93% at +32°C (+90°F) non-condensing
- Temperature (operating) 0°C to +50°C (+32°F to +122°F)
- Current with proximity reader disabled Standby: 200 mA Alarm: 300 mA
- Current with proximity reader enabled Standby: 300 mA Alarm: 400 mA
- Voltage (input) 12 VDC nominal
- Terminal wire size:18 AWG to 22 AWG (1.02 mm to 0.65 mm)
- SDI2 wiring with prox detector disabled Maximum distance - wire size (unshielded wire only): 200 ft (61 m) - 22 AWG (0.65 mm) 520 ft (159 m) - 18 AWG (1.02 mm)
- SDI2 wiring with prox detector enabled Maximum distance - wire size (unshielded wire only): 150 ft (46 m) - 22 AWG (0.65 mm) 390 ft (119 m) - 18 AWG (1.02 mm)
- On-board points voltage ranges Open: 2.2 to 5.0 VDC Normal: 1.4 to 1.8 VDC Short: 0.0 to 1.0 VDC Short circuit current: 2.3 mA
- Relay contact rating 24 VDC, 1 A, power factor: 1
Certifications & Standards: CSFM
