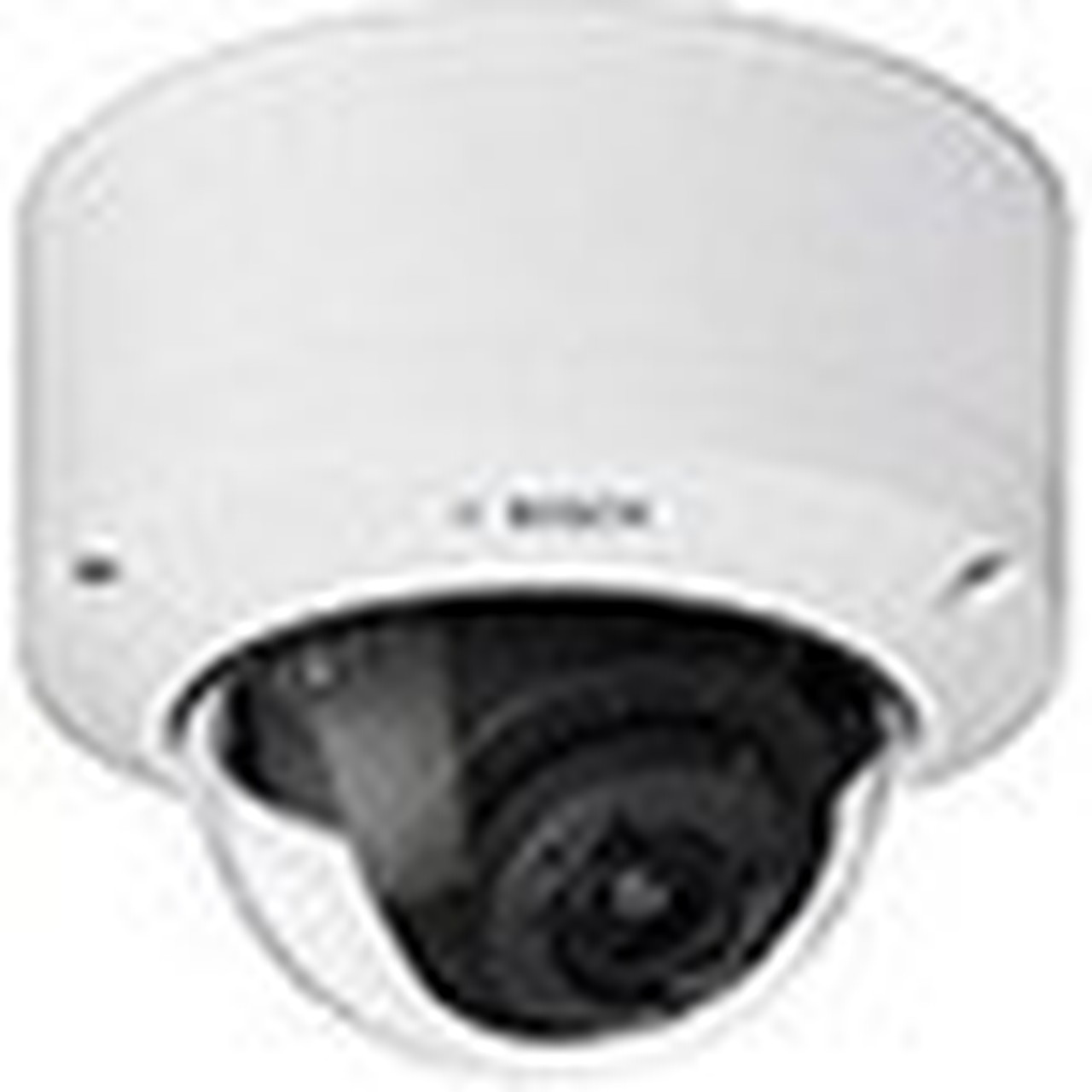

Bosch FlexiDome 5 Megapixel Indoor Network Camera - Color, Monochrome - Dome - Infrared Night Vision - H.264, H.265/HEVC, H.265, MJPEG (NDV-5703-A)

Marketing Information:

The camera is a versatile and professional surveillance camera for indoor monitoring. It delivers exceptional image quality, starlight performance and High Dynamic Range at 5 MP resolution for highly detailed image for demanding security and surveillance network requirements.

Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts.

The cameras offer a 1/2.7'' sensor and HDR technology at 5 MP resolution that provides high performance in extreme low light environments. The modular structure design uses a click and rotate mechanism on mounting plate or base that requires no hardware to secure the camera to housing for fast installation, including compatibility with various mounting options.

Functions

H.265 high-efficiency video encoding

The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems.

Intelligent Video Analytics Pro (IVA Pro)

The camera comes with IVA Pro Buildings pre-installed and brings highly reliable deep-learning based detection and tracking of persons and vehicles to scenes ranging from sterile zones to crowded and congested. Being extremely resistant to false triggers caused by challenging environments with rain, wind (moving trees), snow, hail, and water reflections as well as shadows and bugs, it reliable detects, tracks, and classifies objects. A smart set of alarm and counter rules allows to alert you when predefined alarms are triggered, and to forensically search with high efficiently though recordings. Configuration effort is minimized and made easy by removing the need for calibration.

Optionally the camera can be licensed with IVA Pro Perimeter or IVA Pro Traffic to optimize the camera analytics for specific enterprise use-cases.

Two-way audio

Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. By using the external microphone, audio detection can be used to generate alarms to alert the security operator quicker and act more proactively.

DORI coverage

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The maximum distance at which a camera/lens combination can meet these criteria is shown below:

HD Recording: Yes

Night Vision: Yes

Night Vision Type: Infrared

Image Sensor Type: CMOS

Image Sensor Size: 1/2.7"

Color Supported: Color,Monochrome

Field of View: Horizontal field of view 96º - 29º Vertical field of view 71º - 22º

Effective Camera Resolution: 5 Megapixel

Video Formats: H.264,H.265/HEVC,H.265,MJPEG

Maximum Video Resolution: 2592 x 1944

Maximum Frame Rate: 30 fps

Lens Type: Varifocal

Minimum Focal Length: 3.2 mm

Maximum Focal Length: 10.5 mm

Lens Included: Yes

Maximum Aperture: f/1.6

Optical Zoom: 3.3x

Connectivity Technology: Wired & Wireless

Remote Management: Yes

Ethernet Technology: Fast Ethernet

Protocols: IPv4,IPv6,UDP,TCP,HTTP,HTTPS,RTP/RTCP,IGMP v2,IGMP v3,ICMP,ICMPv6,RTSP,FTP,ARP,DHCP,APIPA,NTP,SNTP,SNMPv1 (MIB2),SNMPv3 (MIB2),802.1X,EAP/TLS,DNS,DNSv6,DDNS,DynDNS,SMTP,iSCSI,UPnP (SSDP),DiffServ (QoS),LLDP,SOAP,CHAP,Digest Authentication

Storage Type: Memory Card/Cloud

USB: Yes

Network (RJ-45): Yes

Input Voltage: 48 V DC

Power Source Type: PoE,DC

Mount Type: Wall Mount,Pipe Mount,In-ceiling,Surface Mount,Junction Box Mount,Gang Box Mount

Form Factor: Dome

Durability: Rain Resistant,Dust Resistant,Tamper Resistant,Vandal Resistant,Impact Resistant

Height: 4.80" (122 mm)

Diameter: 5.83" (148 mm)

Weight (Approximate): 920 g

Minimum Operating Temperature: -4°F (-20°C)

Maximum Operating Temperature: 122°F (50°C)

Maximum Operating Humidity: 100%

Features: SD Card Local Storage,White Balance,Automatic White Balance,Audio Compression,Privacy Masking,Vehicle Detection,Human Detection,Audio Detection,Alarm Triggering,Wide Dynamic Range,Back Light Compensation (BLC)

Indoor/Outdoor: Indoor

Impact Protection Rating: IK10

Ingress Protection Rating: IP54
