Bosch Mounting Pipe for Surveillance Camera - Signal White - 1 (NDA-U-PMTS)

Marketing Information:

The modular camera mounts & accessories are a family of mounts, mounting adapters, pendant interface plates and surveillance cabinets which can be used with a wide range of Bosch cameras. The accessories are easy to install and can be combined to simplify installation in multiple locations whilst retaining the same look and feel.

Functions

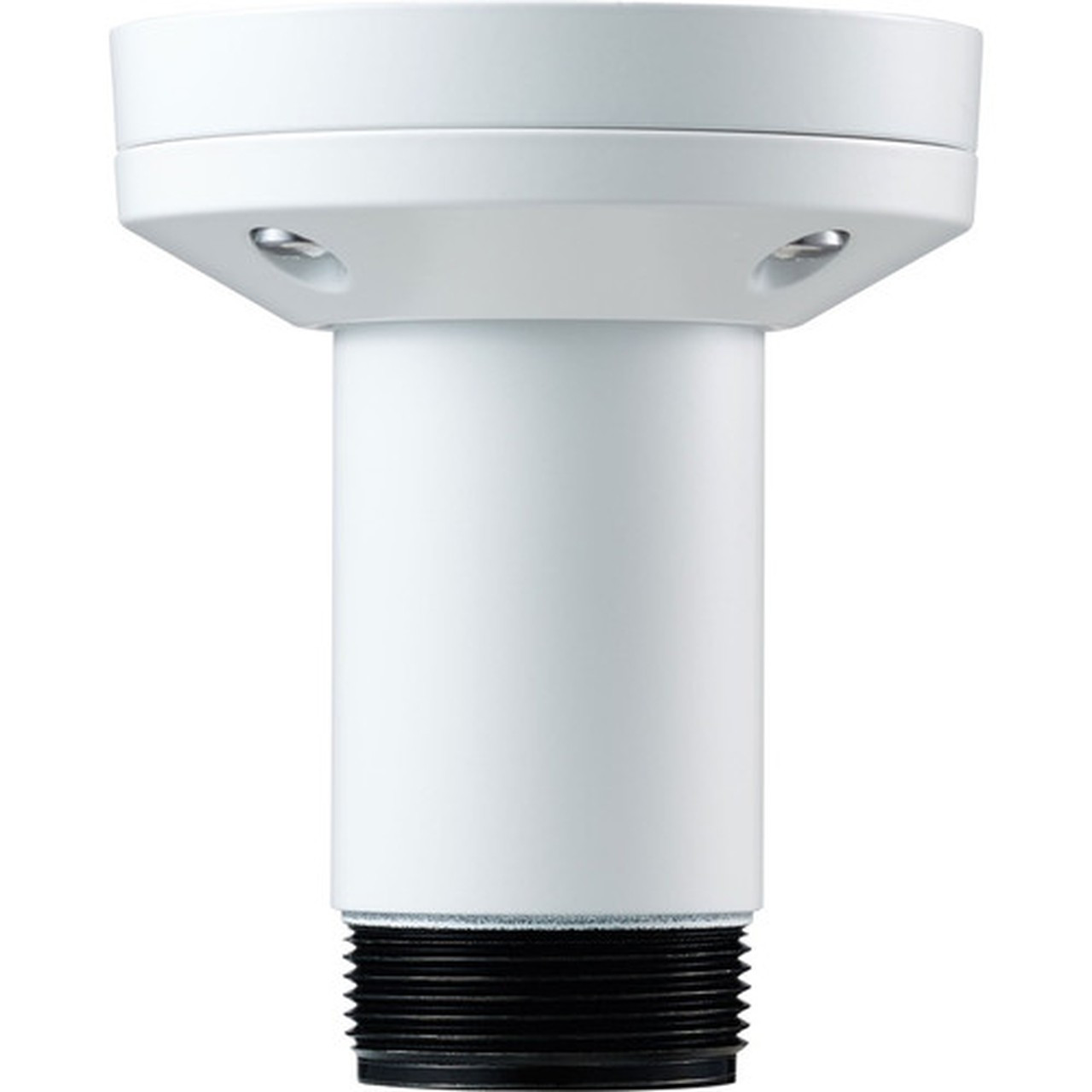

Short pendant pipe mount The short pendant pipe mount allows the installation of a camera suspended from a ceiling. The mount supports easy cable management or can be combined with an additional surface mount box for conduit connections.Universal accessory combinations It provides a safe and robust solution to mount cameras directly to a ceiling, or it can be used in combination with:

• NDA-U-PSMB Pendant wall/ceiling mount SMB
• NDA-U-PA0/1/2 Surveillance cabinet
• NDA-U-WMP Wall mount plate

Device Supported: Surveillance Camera

Features: Weather Resistant,Vandal Resistant,Salt Resistant,Vibration Resistant,Shock Resistant,Impact Resistant,IK10

Product Color: Signal White

Product Material: Aluminum

Length: 4" (101.60 mm)

Diameter: 4" (101.60 mm)

Weight (Approximate): 351 g

Package Contents:

• 1 x Pendant Pipe Mount, 4" (11 cm)
• 1 x Universal Flange Cover
• 1 x Universal Direct Connect Plate
• 4 x M5 x 16 mm Pan Head Torx Screw with Zinc Coating
• 1 x T25 Torx Key
• 1 x Thread Seal Tape: PTFE Tape
• 1 x Quick Installation Guide

Application/Usage: Pipe,Indoor/Outdoor

Country of Origin: Taiwan
