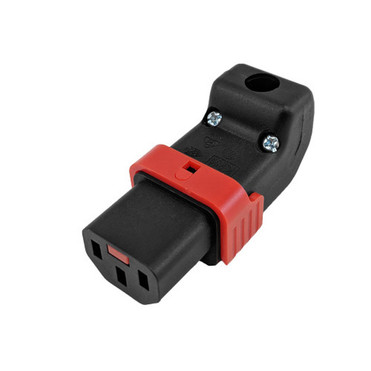

C13 Locking Power Cord Connector - Screw On - Right or Left Angle (IEC-Lock Part #: PA130100RBK)
Have questions?
Proud Canadian team since 2007
Consulting & Technicians services
From VoiP phone to Cluster servers
Shipped Trough UPS & Purolator
This C13 locking power cord connector is designed to prevent accidental disconnection of computers, servers to PDU's and other networking devices. The locking mechanism allows for easy disconnection on all sides and does not require any other equipment or inlets to secure it. The orientation of this connector can be changed from down-angle to up-angle.
Physical Characteristics | |
---|---|
Connection Type | Cable Mount |
Color | Black |
Wire Gauge Compatibility | 14-18AWG |
Rating | 15A/250V (North America), 10A/250V (Europe) |
Material Rating | Low Smoke Zero Halogen (LSZH) |
Rewireable | Yes |
Terminal Screw Nominal Torque | 0.4Nm |
Relative Humidity | 5 - 95% non-condensing, non-corrosive |
Manufacturing Information | |
IEC-Lock Part # | PA130100DBK |
Connectors | |
C13 | Female |
Approvals | |
Connector | UL, CSA |
Certifications | |
CE | Yes |
Environmental | |
RoHS | Yes |
Packaging Information | |
Package Quantity | 1 |
Product Weight | 0.05 lbs [0.02kg] |
