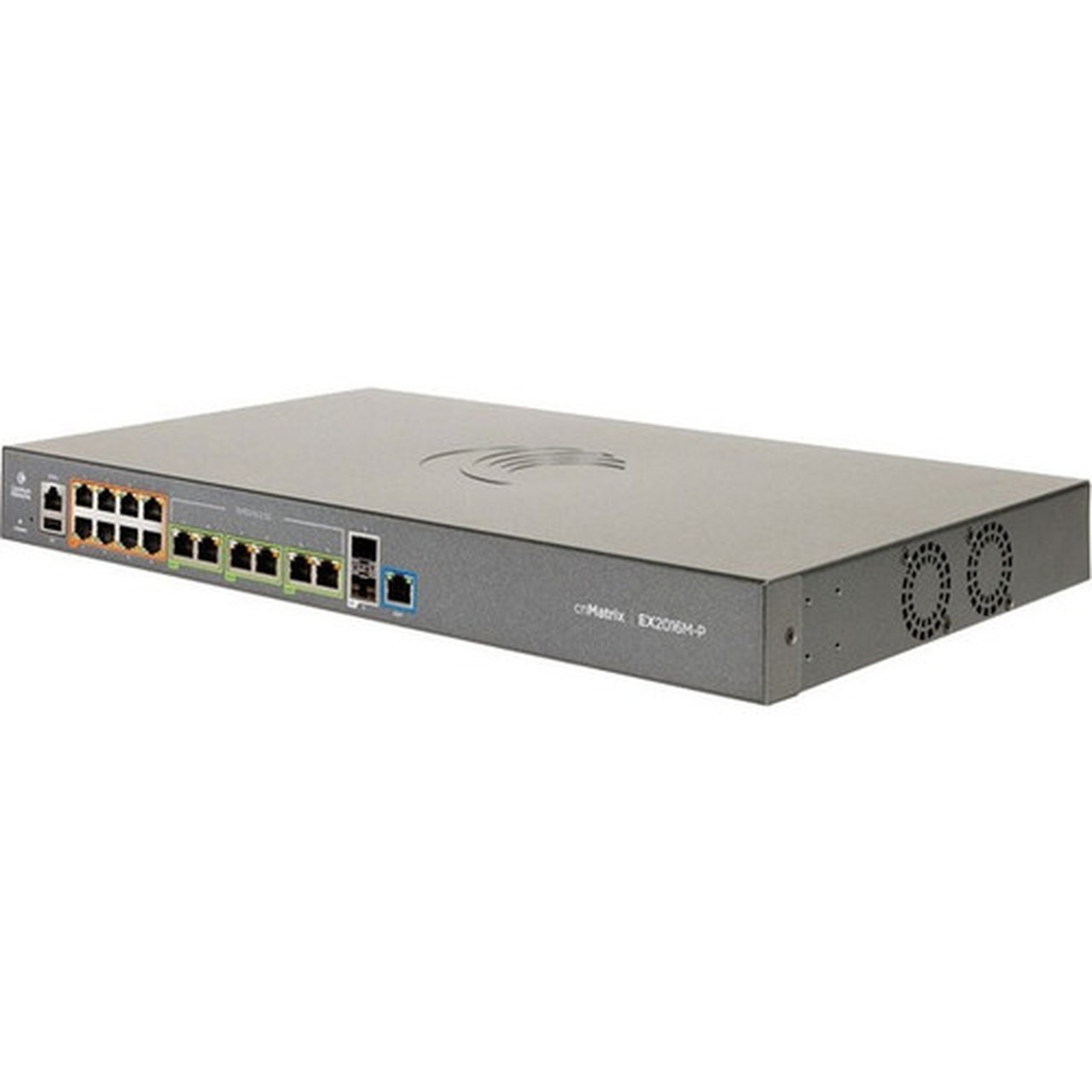

Cambium Networks cnMatrix EX2016M-P Ethernet Switch - 8 Ports - Manageable - 3 Layer Supported - Modular - 26.76 W Power Consumption - (MXEX2016MXPA00)

Marketing Information: Cambium Networks' next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.

The cnMatrix platform of switches provides:

• Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS
• Zero-touch deployment of switches makes installation easy
• Policy Based Automation eliminates manual and time consuming configuration
• Enhanced Security with automated device profiling and segmentation
• Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
• Unified Wired-Wireless access solution

Total Number of Network Ports: 8

Uplink Port: Yes

Modular: Yes

Port/Expansion Slot Details: 8 x Gigabit Ethernet PoE+,6 x 2.5 Gigabit Ethernet PoE+,2 x 10 Gigabit Ethernet Expansion Slot

Media Type Supported: Optical Fiber,Twisted Pair

Ethernet Technology: Gigabit Ethernet,10 Gigabit Ethernet,2.5 Gigabit Ethernet

Network Technology: 1000Base-T,10GBase-X,2.5GBase-T

Expansion Slot Type: SFP+

Number of SFP+ Slots: 2

Layer Supported: 3

Manageable: Yes

PoE (RJ-45) Port: Yes

PoE Budget: 240 W

Power Source: Power Supply

Power Consumption: 26.76 W

Plug/Connector Type: IEC 320-C13

Compatible Rack Unit: 1U

Form Factor: Rack-mountable

Height: 1.73" (44 mm)

Width: 17.32" (440 mm)

Depth: 9.84" (250 mm)

Weight (Approximate): 3.60 kg
