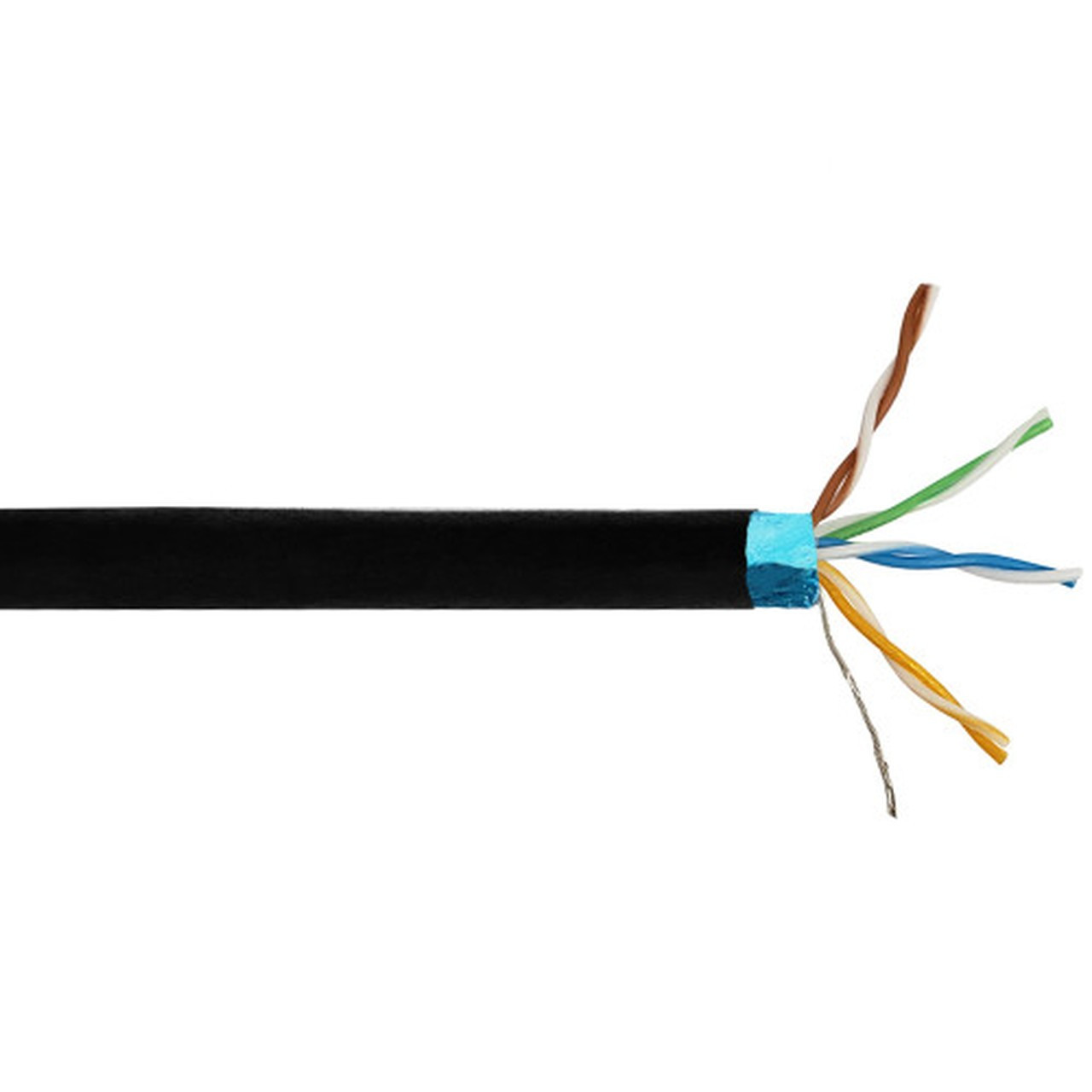

This bulk Cat5e cable consists of 4 pairs of 26AWG stranded wires. It is a Hi-Flex bulk cable suitable for harsh environments.
Features:
- Hi-Flex bulk cable
- Ideally used for harsh environment applications
|
Physical Characteristics
|
| Color |
Black |
| Number of Pairs |
4 Pairs |
| Wire Gauge |
26AWG Stranded |
| Conductor Material |
Stranded Tinned Copper |
| Stranding Count |
7/34 |
| UV Resistant Jacket |
Yes |
| Jacket |
Polyurethane |
| Overall Diameter |
0.220 inches |
| Nominal Diameter |
0.019 inches (Conductor)
0.039 inches max (Insulation)
0.078 inches (Pairs)
0.170 inches (Cable)
0.176 inches (Shield) |
| Temperature Rating |
-40 deg C to 75 deg C |
|
Electrical Characteristics (per 100m / per 328ft)
|
| Mutual Capacitance |
13.5 pf/ft. at 1 MHz |
| Minimum Dielectric Withstanding |
1500V RMS |
| Max Voltage Rating |
300V |
| Max D.C. Resistance |
42.6 ?/1000ft |
| Impedance |
100 +/- 15 ? 1 to 100 MHz |
| SRL |
23 dB 1-20 MHz
23 - 10 log(/20) 20-100 MHz
|
| Return Loss |
1 ? < 10 MHz 20 + 5 log() dB MIN
10 ? < 20 MHz 25 dB MIN
20 ? ? 100 MHz 25 - 8.6 log(/20) dB MIN
|
PS NEXT
NEXT
PSACRF
ACRF
|
1 ? < 100 MHz 32.3 - 15 log(/100) min
1 ? < 100 MHz 35.3 - 15 log(/100) min
1 ? < 100 MHz 20.8 - 20 log(/100) min
1 ? < 100 MHz 23.8 - 20 log(/100) min
|
| Insertion Loss |
1 ? ? 100 MHz 1.5[1.967 ? + 0.023() + 0.050/? dB MAX |
| Delay |
1 ? ? 100 MHz 534 + 36/? ns MAX |
| Delay Skew |
1 ? ? 100 MHz < 25ns |
| LCL |
1 ? ? 100 MHz -38dB MIN |
| Velocity of Propagation |
68% |
|
Environmental
|
| RoHS |
Yes |
|
Manufacturer Information
|
| Quabbin Part Number |
5710 |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
0.03 lbs |
Spec Sheets
Download attachment
