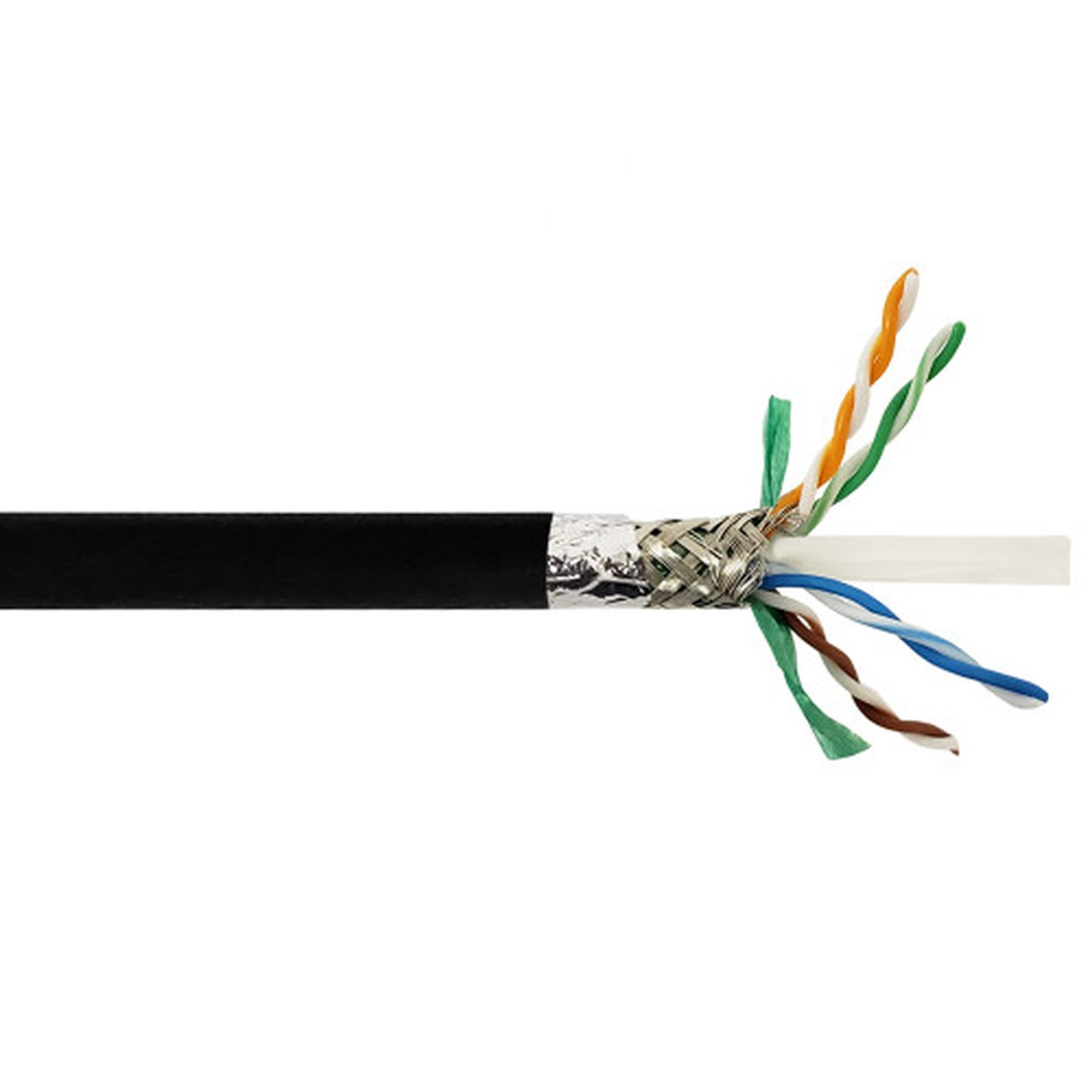

This bulk Cat6a cable consists of 4 pairs of 26AWG stranded wires. It is a Hi-Flex bulk cable suitable for harsh environment and digital A/V applications.
Features:
- Hi-Flex bulk cable
- Ideally used for harsh environment applications and digital A/V applications
|
Physical Characteristics
|
| Color |
Black |
| Number of Pairs |
4 Pairs |
| Wire Gauge |
26AWG Stranded |
| Conductor Material |
Stranded Tinned Copper |
| Stranding Count |
7/34 |
| UV Resistant Jacket |
Yes |
| Jacket |
Polyurethane |
| Overall Cable Diameter |
0.239 inches (+/- 0.010)
|
| Nominal Diameter |
0.019 inches (Conductor)
0.036 inches (Insulation)
0.072 inches (Pairs)
0.228 inches max (Jacket) |
| Temperature Rating |
-40 deg C to 75 deg C |
|
Electrical Characteristics (per 100m / per 328ft)
|
| Mutual Capacitance |
13.5 pf/ft. at 1 MHz |
| Minimum Dielectric Withstanding |
1500V RMS |
| Max Voltage Rating |
300V |
| Max D.C. Resistance |
14.0 ?/1000ft |
| Impedance |
100 +/- 15 ? 1 to 100 MHz
100 +/- 20 ? 100 to 500 Mh
|
| Return Loss |
1 ? f < 10 MHz 20 + 5 log(f) dB MIN
10 ? f < 20 MHz 25 dB MIN
20 ? f ? 500 MHz 25 - 8.6 log(f/20) dB MIN
|
PS NEXT
NEXT
PSACRF
ACRF
|
1 ? f < 500 MHz 42.3 - 15 log(f/100) min
1 ? f < 500 MHz 44.3 - 15 log(f/100) min
1 ? f < 500 MHz 24.8 - 20 log(f/100) min
1 ? f < 500 MHz 27.8 - 20 log(f/100) min
|
| Insertion Loss |
1 ? ? 500 MHz 1.5[1.82 ? + 0.0091() + 0.25/? dB MAX |
| Delay |
1 ? ? 500 MHz 534 + 36/? ns MAX |
| Delay Skew |
1 ? ? 500 MHz < 45ns |
| TCL |
1 ? ? 500 MHz 30 - 10 log(/100) dB MIN
|
| ELTCTL |
1 ? ? 30 MHz 35 - 20 log() dB MIN
|
| PSANEXT Loss (6 around 1) |
1 ? ? 50 MHz 67 dB MIN
50 ? ? 500 MHz 62.5 - 15 log(/100) dB MIN
|
| PSAFEXT (6 around 1) |
1 ? ? 500 MHz 38.2 - 20 log(/100) dB MIN
|
| Velocity of Propagation |
68% |
|
Environmental
|
| RoHS |
Yes |
|
Manufacturer Information
|
| Quabbin Part Number |
5919 |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
0.03 lbs |
