Overview

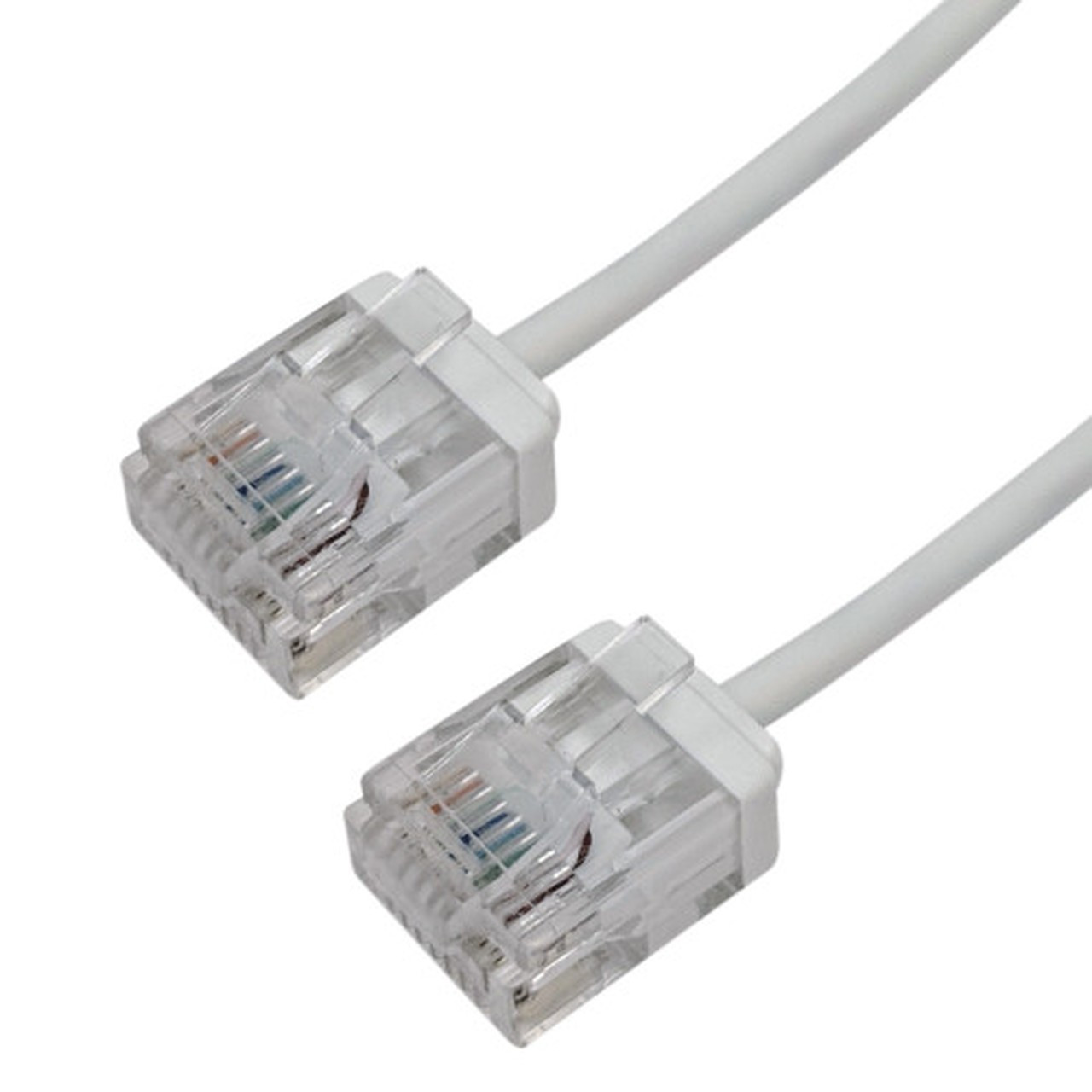

This Cat6a Ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for Ethernet network connections such as patch panels, switches, computers and routers. It's micro-thin cable design works perfectly for interconnecting networking equipment in datacenters where cable management space is extremely important.
This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Performance in High Density Applications.This micro slim cable is thinner than Cat6a ultra thin cables and have short body RJ45 connectors for a tighter bend radius, which makes it the perfect solution for interconnecting networking equipment in datacenters where cable management space is extremely important. Fluke Channel Tested
Our cables are 100% tested to passa fluke CAT6A channel test, and come with a printed test report.

|
Specifications
Physical Characteristics |
|---|
| Length | 1 foot |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 2.6mm |
| Wire Gauge | 32AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Strain Relief | Molded Strain Relief |
| Jacket Type | PVC |
Connectors |
|---|
| Connector A | RJ45 Short Body Male |
| Connector B | RJ45 Short Body Male |
Performance |
|---|
Fluke CAT6A Channel Test
| Yes |
| Frequency | 10Gb |
| Color Code | 568A/568B Compatible |
Approvals |
|---|
| c(UL)us | Yes - Cable |
| ISO/IEC 11801 | Yes |
Environmental |
|---|
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
Package Information |
|---|
| Product Weight | 0.02 lbs |
| Package Quantity | 1 |
Warranty Information |
|---|
| Warranty | Limited Lifetime |
