ATEN ProXime KVM Console Extender For WUXGA 1920 X 1200 Range With Single Computer Resolution Maximum Video Ft Mm S CE350
Write a Review
Aten
ATEN ProXime KVM Console Extender For WUXGA 1920 X 1200 Range With Single Computer Resolution Maximum Video Ft Mm S CE350
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- ProXime CE350 KVM Console/Extender
- 1 x Custom PS/2 KVM Cable Set (1.8 m)
- 2 x Power Adapters
- 1 x Rack Mount Kit
- 2 x Grounding Wires
- 1 x User Manual
- 1 x Quick Start Guide
Connectivity Technology: Wired
KVM Technology: Analog
Number of Computers Supported: 1
Maximum Operating Distance: 492.13 ft (150000 mm)
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
PS/2 Port: Yes
Headphone: Yes
Microphone: Yes
VGA: Yes
Proprietary Interface: Yes
Number of VGA Ports: 2
Number of Network (RJ-45) Ports: 2
Number of PS/2 Ports: 4
Input Voltage: 5.3 V DC
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 480 g
Receiver Weight (Approximate): 490 g
Package Contents:
Environmentally Friendly: Yes
Country of Origin: Taiwan

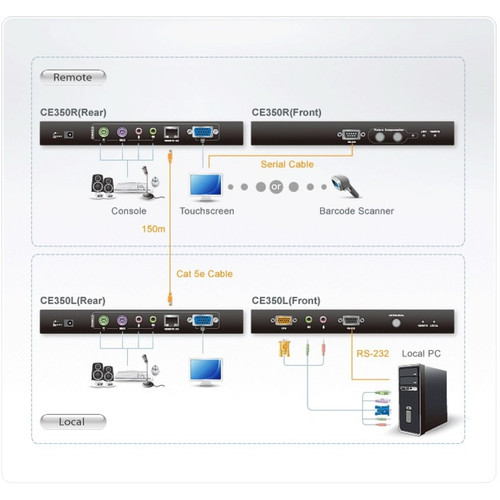

- Local and Remote Units connect at distances up to 150 m using Cat 5e cable
- Adjustable gain control - automatically and manually adjust signal strength to compensate for distance
- Dual console operation - control your system from both the local and remote keyboard, monitor, and mouse consoles
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC) and storage of settings
- RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)
- Audio Enabled - supports stereo speakers and microphone
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Superior video quality - 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(150 m)
[custom-specifications]
| Specifications | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CE350 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Line | ProXime |
| Product Model | CE350 |
| Product Name | ProXime CE350 KVM Console/Extender |
| Packaged Quantity | 1 |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| KVM Technology | Analog |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 492.13 ft (150000 mm) |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| PS/2 Port | Yes |
| Headphone | Yes |
| Microphone | Yes |
| VGA | Yes |
| Proprietary Interface | Yes |
| Number of VGA Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Number of PS/2 Ports | 4 |
| Power Description | |
| Input Voltage | 5.3 V DC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Transmitter Weight (Approximate) | 480 g |
| Receiver Weight (Approximate) | 490 g |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
