Chief Proximity Mounting Panel for Menu Board, Cart, A/V Equipment, Flat Panel Display - Black - 50" Screen Support - 6.80 kg Load (CSSLP15X10)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Free Shipping*

Write a Review
MSRP: $320.00
$320.00
$236.39
Save: $83.61 (26.13%)
SKU: CSSLP15X10
UPC: 841872176222
Availability: Ready to ship - Stock in Canada
Weight: 1.23 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

    Marketing Information:

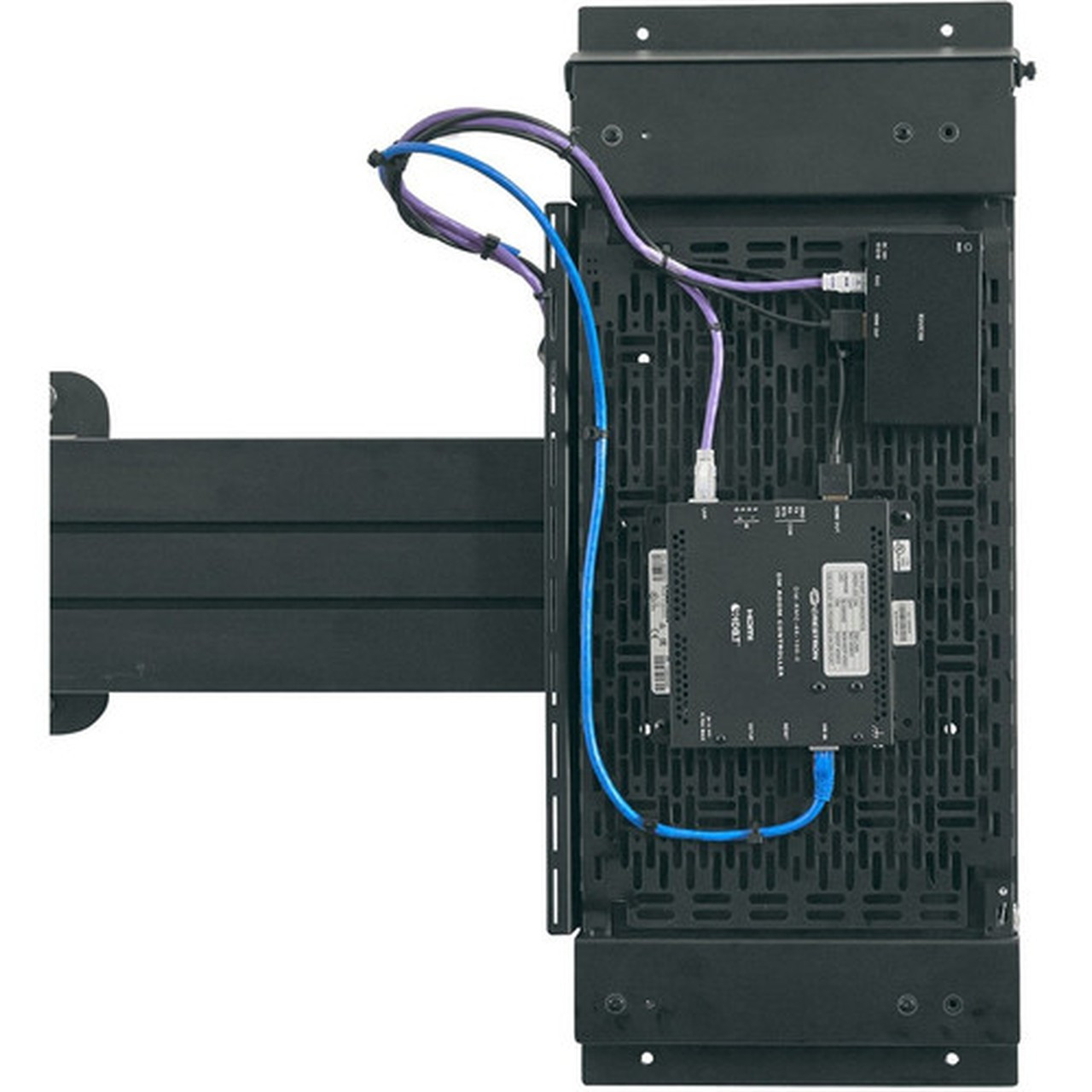

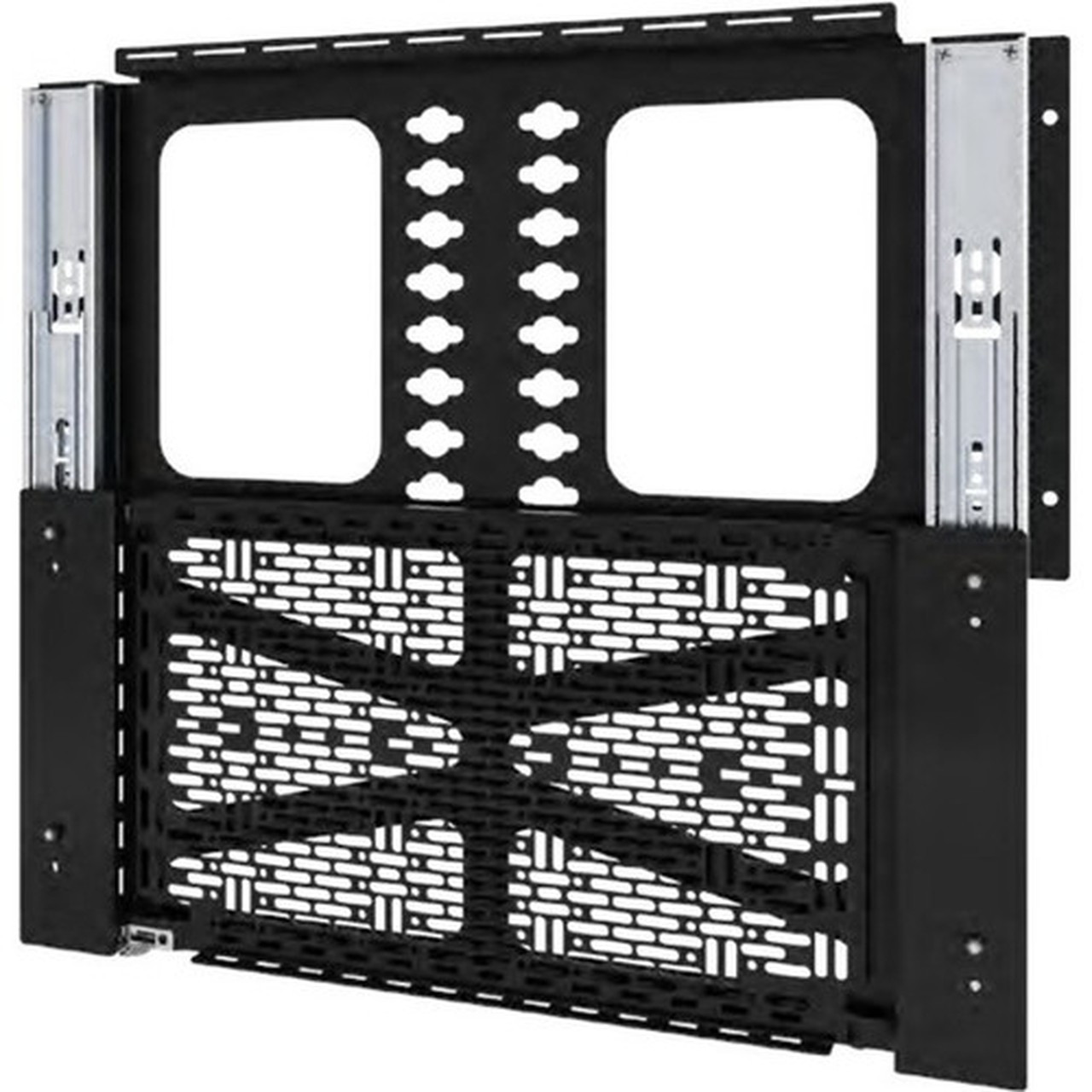

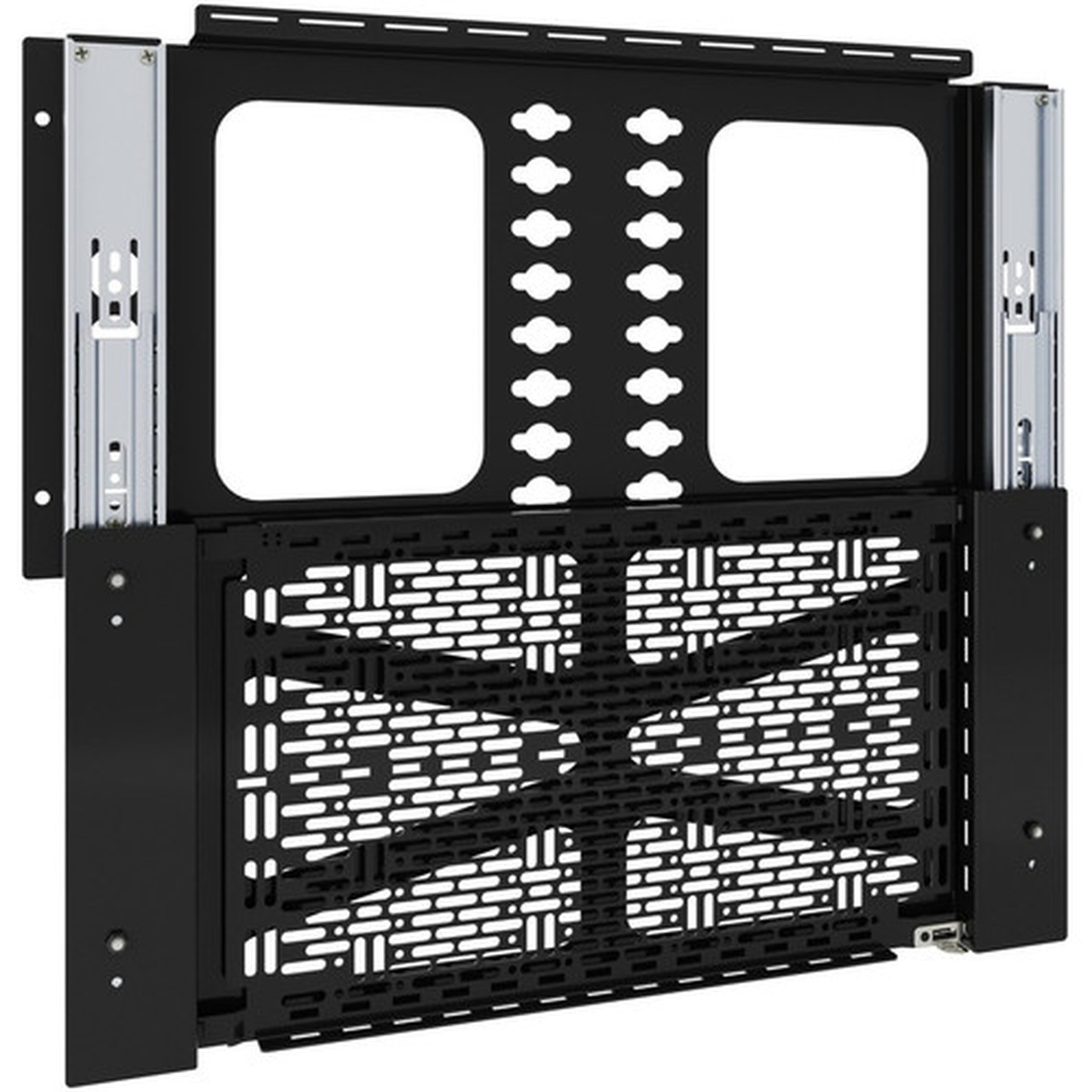

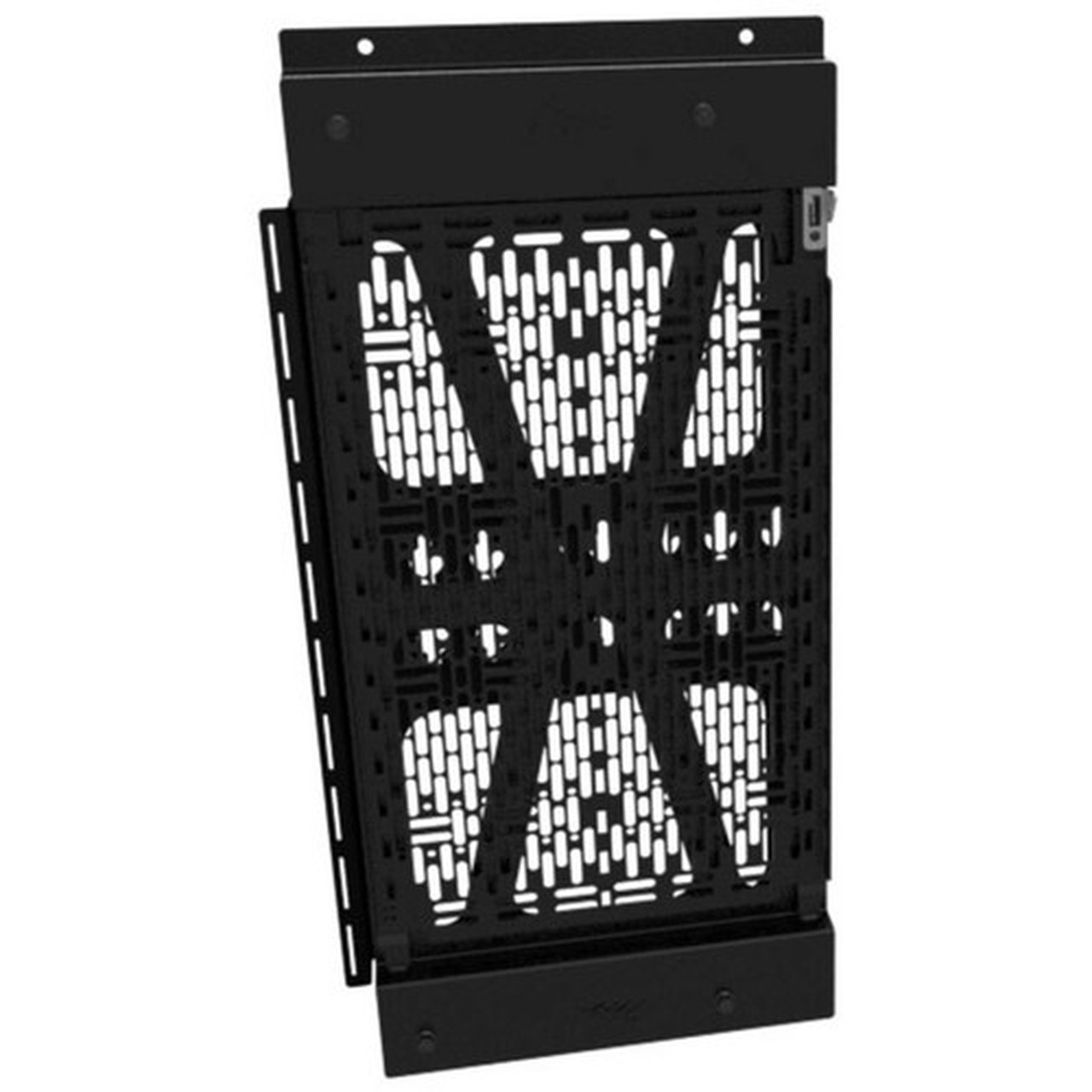

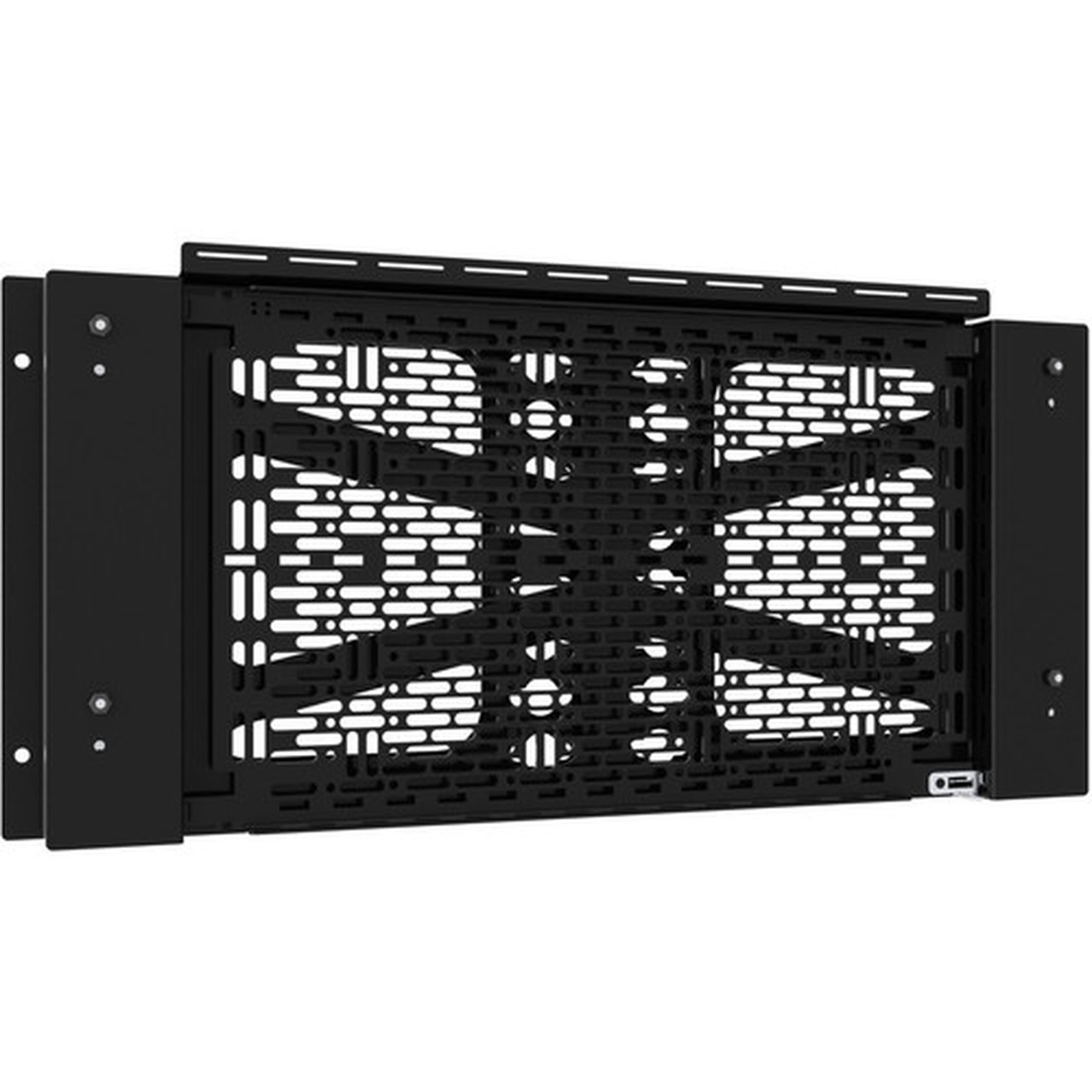

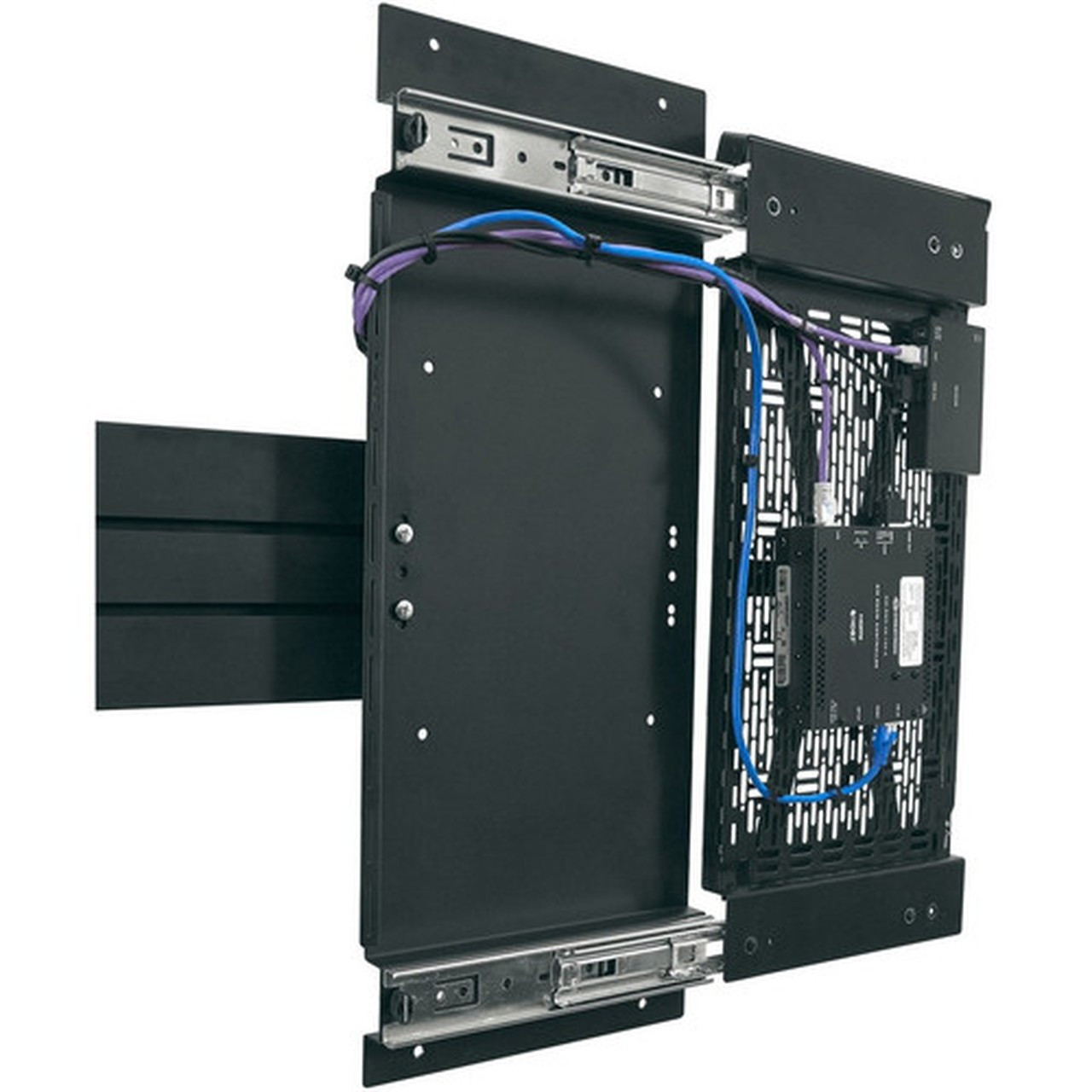

    The Proximity Component Storage Slide-Lock Panel facilitates easy, concealed mounting of AV equipment behind displays. To simplify service and accessibility to the equipment simply slide the storage panel out. Install on wall or attach to Fusion mounts left, right, or below the display. The built-in and tool-free Lever Lock plate is easily removed and replaced from the slide-lock panel to service the equipment post-installation without touching the display. This storage panel will hold most small devices for AV installations. The innovative slides on the CSSLP15X10 secure the storage panel and stop it from falling out or down with a push-to-open and push-to-close mechanism. This gives designers, consultants, and installers the flexibility to decide where to best position the storage panel behind the display. The universal small device mounting pattern of the Lever Lock plate offers the versatility to mount devices with cable ties, hook and loop fasteners, or nuts and bolts.

    Device Supported: Menu Board,Cart,A/V Equipment,Flat Panel Display

    Maximum Load Capacity: 6.80 kg

    Maximum Screen Size Supported: 50"

    Features: Built-in Lever Lock Plate,Cable Management,Hook & Loop Fastener

    Product Color: Black

    Height: 22.71" (576.83 mm)

    Width: 10.69" (271.53 mm)

    Depth: 1.39" (35.31 mm)

    Package Contents:

    • Proximity Component Storage Slide-Lock Panel
    • Lever Lock Plate
    • Rivet

    Application/Usage: Wall,Ceiling

    Compatibility:

    Cheif Menu Boards:

    • LCM
    • LWM

    Limited Warranty: 10 Year

[custom-highlights]
  • Can withstand a maximum weight of 6.80 kg
  • Supports the screen size of 50"
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerLegrand Group
Manufacturer Part NumberCSSLP15X10
Manufacturer Website Addresshttp://www.legrand.com
Brand NameChief
Product LineProximity
Product SeriesCSSLP15X10
Product NameProximity Component Storage Slide-Lock Panel For AV Systems - Black
Product TypeMounting Panel
Product Information
Device SupportedMenu Board,Cart,A/V Equipment,Flat Panel Display
Maximum Load Capacity6.80 kg
Maximum Screen Size Supported50"
FeaturesBuilt-in Lever Lock Plate,Cable Management,Hook & Loop Fastener
Physical Characteristics
Product ColorBlack
Height22.71" (576.83 mm)
Width10.69" (271.53 mm)
Depth1.39" (35.31 mm)
Miscellaneous
Package Contents
  • Proximity Component Storage Slide-Lock Panel
  • Lever Lock Plate
  • Rivet
Application/UsageWall,Ceiling
Compatibility

Cheif Menu Boards:

  • LCM
  • LWM
Warranty
Limited Warranty10 Year

[/custom-specifications]

[custom-user-manual]

Available Documentation:


User-Manual
Manufacturer-Brochure

[/custom-user-manual]

Warranty Infomartion

10 Year
