Cisco TelePresence SX10 Quick Set - 1920 x 1080 Video (Live) - Point-to-Point - WXGA - 60 fps - 1 x Network (RJ-45) - 1 x HDMI In - 1 (CTS-SX10N-K9)

Marketing Information:

The Cisco TelePresence® SX10 Quick Set is an all-in-one unit designed to video-enable your small collaboration spaces, offering great affordability for small-to-medium businesses just starting out with telepresence. With the SX10 you can extend telepresence pervasively throughout your enterprise.

This low-cost, high-quality unit combines camera and codec into a single, compact device that is mounted over your standard flat-panel display and connects through a discreet single-cable system for Power over Ethernet (PoE). High-definition video is enabled with 1080p30 resolution, while a leadership wide-angle field of view provides the best overview even in small spaces.

ITU-T Recommendation: SIP

Video Bridging: Point-to-Point

Graphics Modes (Live): WXGA

Maximum Video Resolution (Live): 1920 x 1080

Maximum Frame Rate: 60 fps

Video Encoding: H.263,H.263+,H.264

Microphone Form Factor: Internal

Audio Encoding: G.711a,G.722,G.722.1,G.729ab,G.729

Network Technology: 10/100Base-TX

Ethernet Technology: Fast Ethernet

VGA In: Yes

HDMI In: Yes

HDMI Out: Yes

Audio Line In: Yes

Audio Line Out: Yes

Network (RJ-45): Yes

USB: Yes

Number of Network (RJ-45) Ports: 1

Number of HDMI Inputs: 1

Number of HDMI Outputs: 1

Number of Audio Line In: 1

Number of Audio Line Out: 1

Form Factor: Wall Mountable

Height: 4.60" (116.84 mm)

Width: 10.80" (274.32 mm)

Depth: 3.60" (91.44 mm)

Weight (Approximate): 907.2 g

Package Contents:

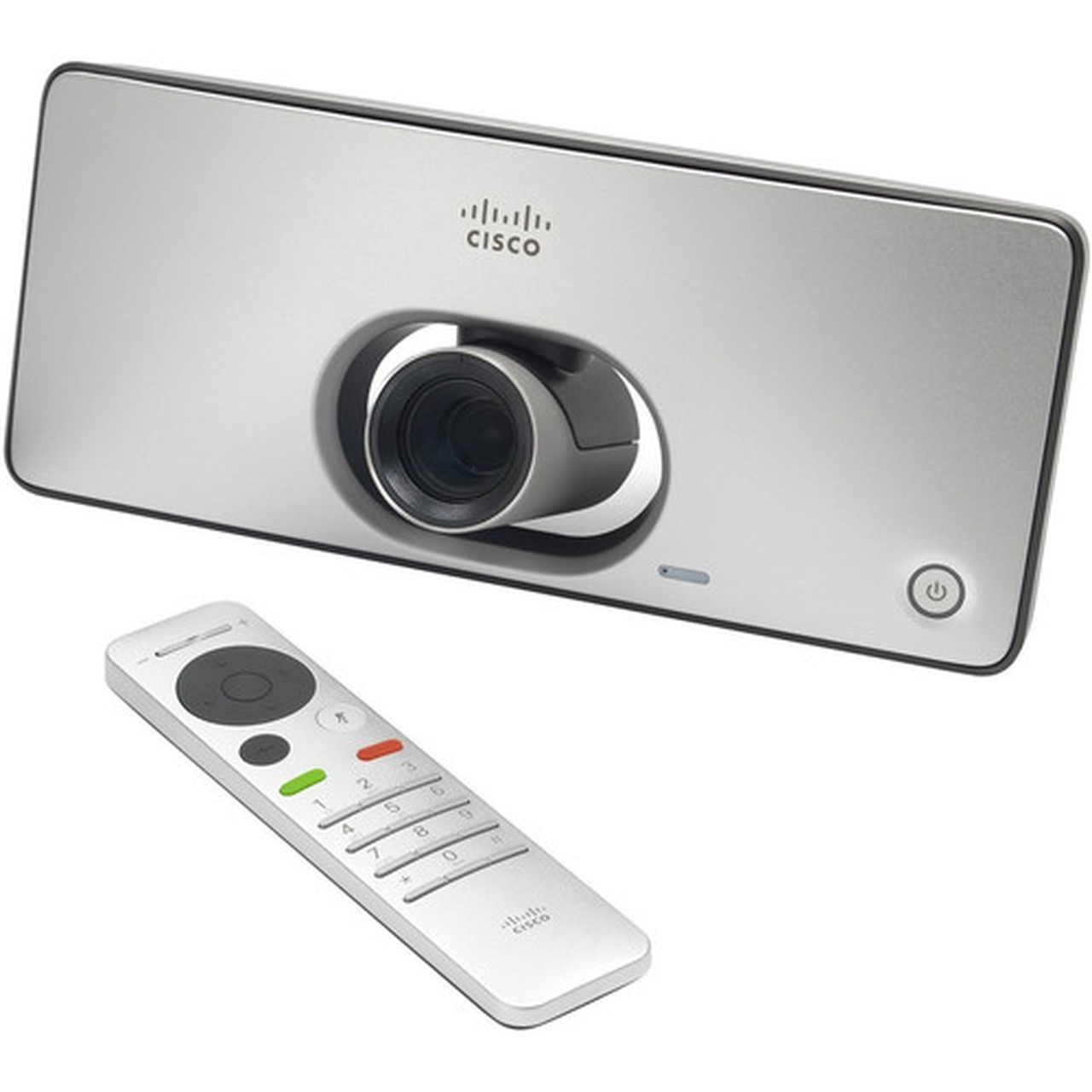

• SX10 Codec With Integrated HD Camera and Microphone
• Wall Mount Kit
• TRC6 Remote Control
• Network and HDMI Cables

Limited Warranty: 90 Day
