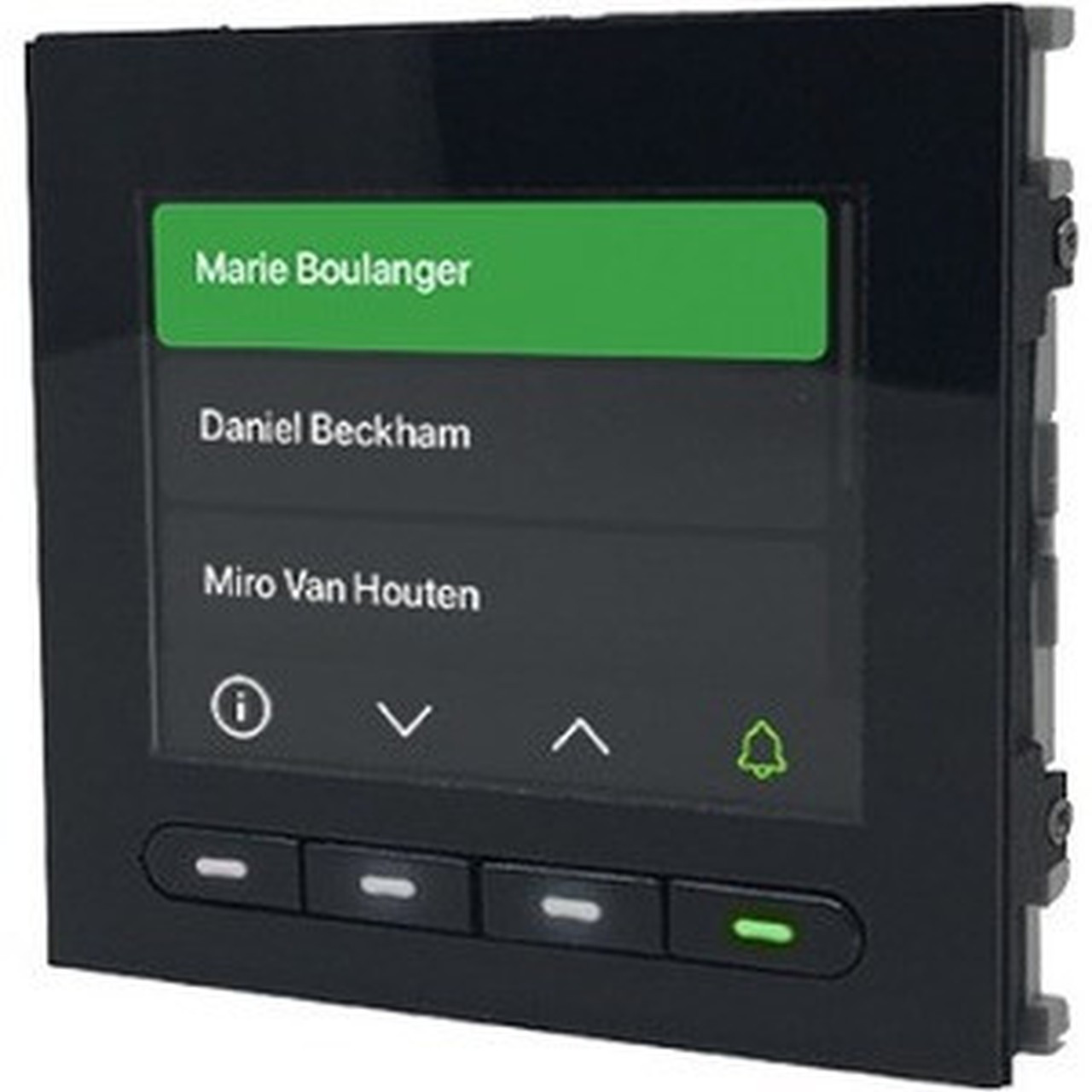

Marketing Information: Digital directory module for Ultra entrance panel, compatible with all systems. Bluetooth connection for managing names in the directory using the installer's MyComelit app. Buttons for user selection and calling. Option of customising one button for direct calls to the switchboard, commercial activities, activation of an automated opening or a light. Equipped with a 3.5" colour graphic display. Can be paired with the numeric keypad module to directly call the user when the relevant code is known, or for the access control function with activation of the audio or audio/video module outputs and the system actuators. Dimensions: 100x90x35 mm.
Device Supported: - Audio/Video Unit
- VOIP Modem
- Intercom System
- Switchboard
Features: - Flush Mount
- Wall Mountable
- LCD Display
- Backlight Display
- Adjustable Brightness
- Bluetooth
- Programmable
- LED Indicator
- Push Button
Color Family: Dual ColorProduct Color: Product Material: PolycarbonateDurability: Vandal ResistantHeight: 3.54" (90 mm)Width: 3.94" (100 mm)Depth: 1.38" (35 mm)Weight (Approximate): 400 gAdditional Information: - Display size ("): 3.5
- Resolution (pixel): 320x240
- Type of power supply: Power supply from video door entry bus
- Supply voltage: 33VDC
- Absorption in stand-by (W): 1.3
- Maximum absorption (W): 2
- Call type: Digital
- Type of buttons: Mechanical
- Number of push-buttons (n°): 4
- Clamps: D+ D- GND
- IP protection rating: IP65
- Operating temperature (°C): -25 ÷ 55
- Operating humidity (RH max) (%): 25 ÷ 95
- Environmental class: IV
- No. of storable users (n°): 1500
- Visual indications of system status: Yes
- Customizable welcome message: Yes
Application/Usage: - Door Entry
- Outdoor
- Commercial
- Access Control
[custom-specifications]
SpecificationsManufacturer: Comelit Group S.p.A
Manufacturer Part Number: UT9260M
Manufacturer Website Address: http://www.comelit.eu
Brand Name: Comelit
Product Line: Ultra
Product Name: Digital Directory Module With Display, Ultra
Product Type: Digital Name Directory Module
Technical InformationDevice Supported:
- Audio/Video Unit
- VOIP Modem
- Intercom System
- Switchboard
Features:
- Flush Mount
- Wall Mountable
- LCD Display
- Backlight Display
- Adjustable Brightness
- Bluetooth
- Programmable
- LED Indicator
- Push Button
Physical CharacteristicsColor Family: Dual Color
Product Color:
Product Material: Polycarbonate
Durability: Vandal Resistant
Height: 3.54" (90 mm)
Width: 3.94" (100 mm)
Depth: 1.38" (35 mm)
Weight (Approximate): 400 g
MiscellaneousAdditional Information:
- Display size ("): 3.5
- Resolution (pixel): 320x240
- Type of power supply: Power supply from video door entry bus
- Supply voltage: 33VDC
- Absorption in stand-by (W): 1.3
- Maximum absorption (W): 2
- Call type: Digital
- Type of buttons: Mechanical
- Number of push-buttons (n°): 4
- Clamps: D+ D- GND
- IP protection rating: IP65
- Operating temperature (°C): -25 ÷ 55
- Operating humidity (RH max) (%): 25 ÷ 95
- Environmental class: IV
- No. of storable users (n°): 1500
- Visual indications of system status: Yes
- Customizable welcome message: Yes
Application/Usage:
- Door Entry
- Outdoor
- Commercial
- Access Control
[/custom-specifications]
