Comelit Ultra Mounting Frame for Module (UT9162)

Marketing Information:

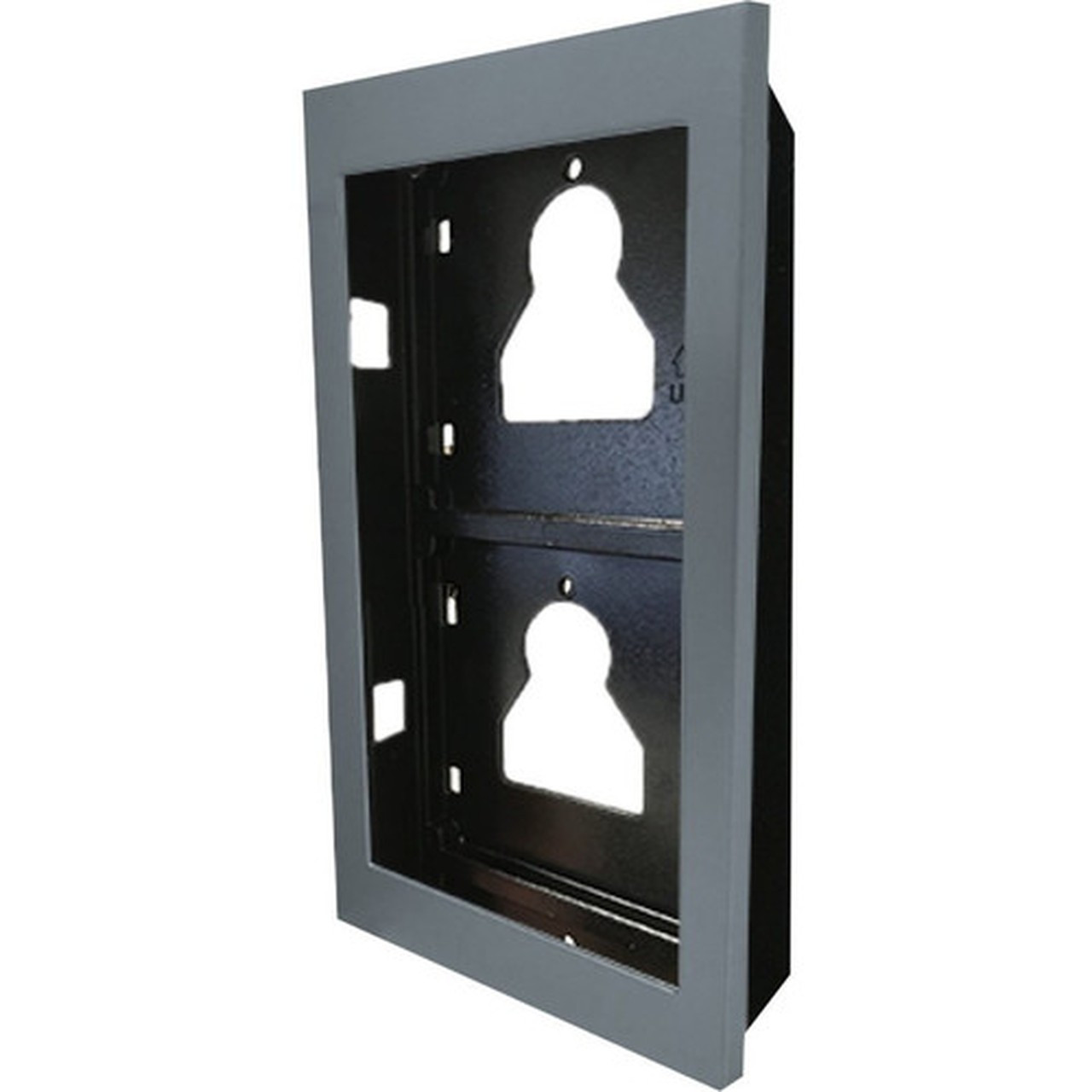

Flush-mounting frame, 2 modules, for Ultra entrance panel. It consists of a metal support that secures the modules without using screws and a finishing frame in die-cast aluminium given a cataphoresis treatment to increase its resistance to chemical and environmental corrosion, including damage from UV rays. 10 mm protrusion from the wall. Can be used in flush-mounting boxes art. 3110/2 and 3110/2A, with the option of installing several modules side by side. Dimensions: 125,5x226,5x35mm

Device Supported: Module

Features: Chemical Resistant,Corrosion Resistant,UV Resistant,Damage Resistant

Product Material: Die-cast Aluminum,Metal

Height: 8.92" (226.50 mm)

Width: 4.94" (125.50 mm)

Depth: 1.38" (35 mm)
