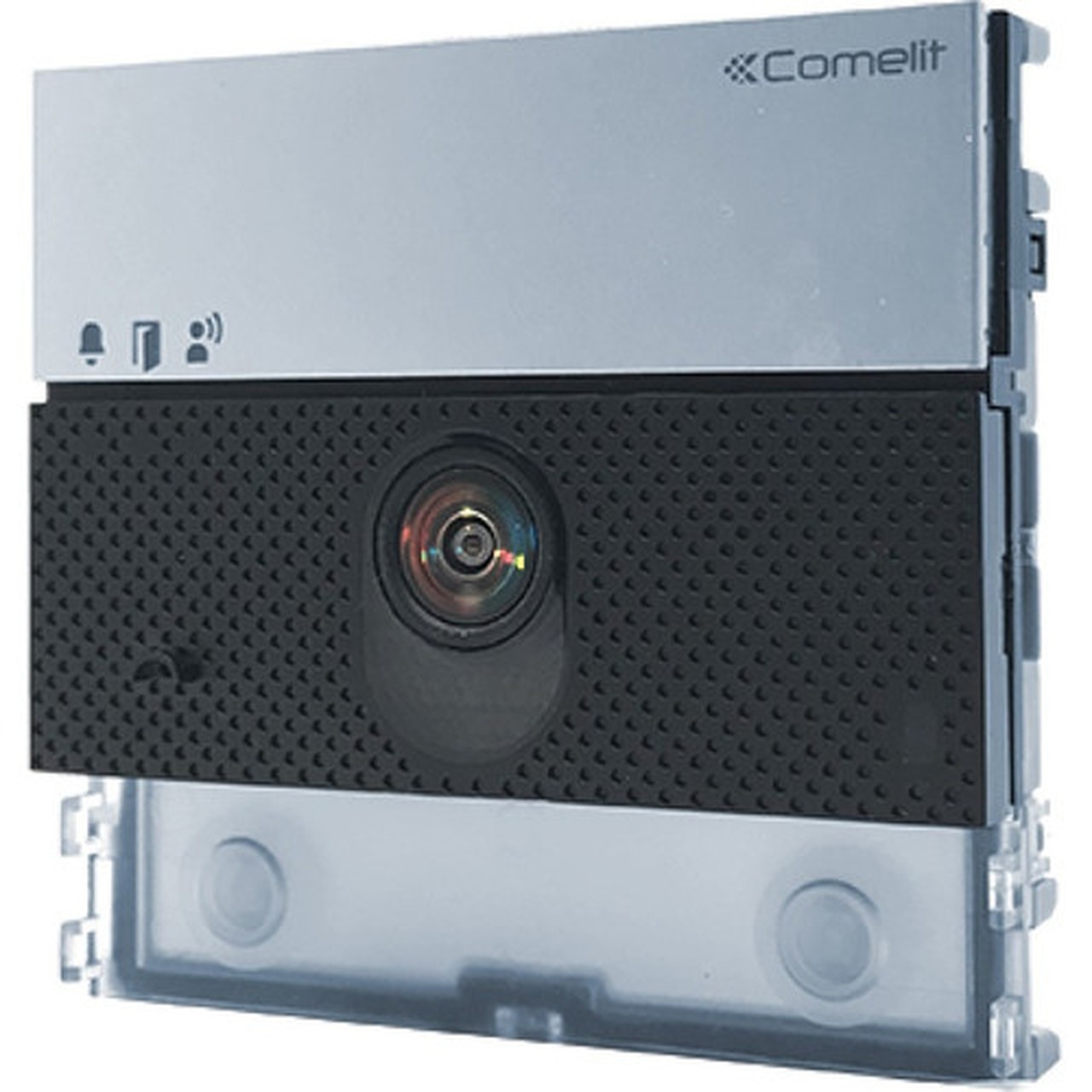

Comelit Ultra Simplebus 1 Audio/Video Module - Easy Installation, Backlight Display, Microphone, Speaker, Camera, Programmable, Flush (UT1020)

Marketing Information:

Audio/video module for Ultra entrance panel, Simplebus 1 system. To be used in systems with power supply art. 1595 and art. 4888C. Easy to install and configure, thanks to the smart programming of call buttons. Twilight sensor for automatic nameplate backlight switch-off during daytime hours. Omnidirectional digital microphone and dual loudspeaker for high-fidelity audio. Wide-angle colour video camera (field of vision: 120° horizontal, 90° vertical). Programmable audiovisual functions for users with disabilities. Designed for 2 call buttons. To be finished with cap, single button or double button in professional-grade plastic given an anti-yellowing and anti-dulling treatment or in aluminium. Adjustment and programming can be carried out without removing the module. Dimensions: 1 Ultra module. ULTRA, the new and most technologically advanced entrance panel offering maximum ease of installation. Available in flush-mounting (10 mm protrusion from the wall) or surface-mounting (just 35 mm protrusion from the wall) versions. Dimensions: 100x90x35mm

Device Supported: Entrance Panel,Intercom System

Features: Easy Installation,Backlight Display,Microphone,Speaker,Camera,Programmable,Anti-yellowing,Anti-dull,Flush Mount,Surface Mount,Wall Mountable

Color Family: Dual Color

Product Color: Black,Transparent,Aluminium

Product Material: Plastic,Aluminum Alloy,Polycarbonate

Durability: Vandal Resistant

Height: 3.94" (100 mm)

Width: 3.54" (90 mm)

Depth: 1.38" (35 mm)

Additional Information: Audio Features:

• Microphone: MEMS audio digital sensor, omnidirectional
• Loudspeaker: 28mm (Ø), 8 Ohm, 1W (2)
• Technologies implemented: Full-Duplex

• Camera: Colors
• Sensor type: 1/3" CMOS
• Lens optical dimensions (pc): 0.42
• Angle of view: (H x V - °) 120 x 90
• Sensitivity (lux): 0.45
• Resolution (H x V - pixel): 1288 x 968

• Loudspeaker volume: Yes
• Microphone volume: Yes
• Backlight brightness: Yes

Application/Usage: Villa,Residential

Compatibility:

• Comelit Ultra Series Audio/Video Entrance Panel
• Comelit SIMPLEBUS2 Intercom System

Certifications & Standards:

• CE
• Protection rating (IP code) IP65
• Vandal Resistant rating (IK code) IK08
• EMC 2014/30/UE
• EN 61000-6-1:2007 ,
• EN 61000-6-3:2007+A1:2011)

Environmentally Friendly: Yes
