CyberPower 500VA PFC Sinewave Rack Mount UPS With AVR And Fast Recharge Rack-mountable Stand-by Minute Hour V CP500PFCRM1U
Write a Review
CyberPower
CyberPower 500VA PFC Sinewave Rack Mount UPS With AVR And Fast Recharge Rack-mountable Stand-by Minute Hour V CP500PFCRM1U
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Power On
- Wiring Fault
AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Number of Surge-only Outlets: 2
Dataline Protection: RJ-45
Overload Protection: Yes
Cord Length: 10 ft (3.05 m)
Transfer Time: 8 ms
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS Bypass Technology
Application/Usage: Security System,Audio/Video Equipment,Workstation,Corporate,Server,Network Device,Telecommunication
Surge Suppression: Yes
Features: Audible Alarm
Load Capacity (VA): 500 VA
Load Capacity (Watt): 300 W
Input Voltage: 120 V AC
Input Voltage Range: 88 V AC - 144 V AC,97 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 57 Hz,63 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 1150 J
Circuit Breaker: Yes
Output Power Factor: 0.6
Display: LCD
Network Management: Dry Contact,SNMP/HTTP Remote Monitoring
Alarm: Battery Mode,Low Battery,Overload,Fault
Status Indicators:
LED Indicators:
Serial Port: Yes
USB: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes
Number of Batteries: 2
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 6V
Battery Capacity: 7000 mAh
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 10.50 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Product Color: Black

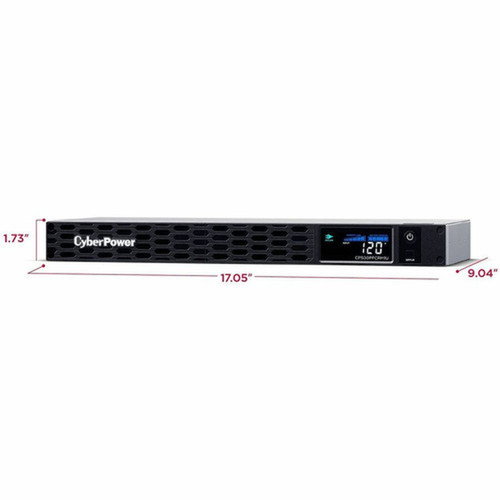

Height: 1.73" (44 mm)
Width: 17.01" (432 mm)
Depth: 9.06" (230 mm)
Rack Height: 1U
Form Factor: Rack-mountable
Weight (Approximate): 17.97 lb (8150 g)
Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
Additional Warranty Information:
Three-year warranty (including coverage of batteries)
- Capacity:
- 500VA / 300W
- Topology:
- Line Interactive
- Waveform:
- Sine Wave
- Output:
- 120Vac ± 5%
- Runtime (half/full):
- 10.5 minutes / 2 minutes
- Plug type & cord:
- NEMA 5-15P, 10 ft. cord

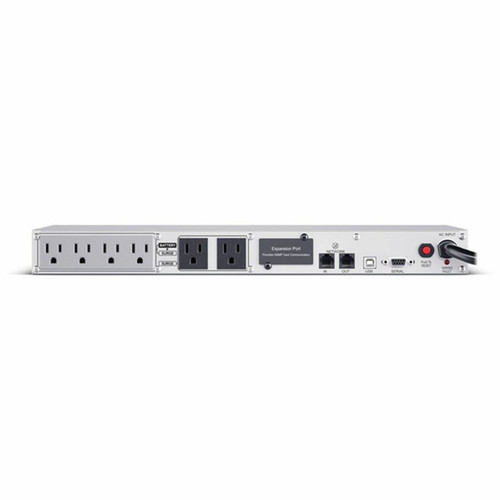

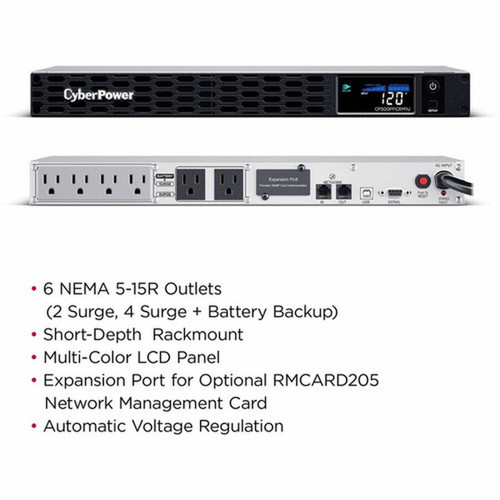

- Outlets:
- 6 (2 surge, 4 surge + battery backup)
- Outlet types:
- 6 × NEMA 5-15R
- Communication:
- USB, SNMP
- Data line protection:
- Network RJ45
- Management software:
- PowerPanel® Business
- Remote management:
- Yes, with optional RMCARD205
- ENERGY STAR® certified:
- Yes
- Warranty:
- 3 year
- Connected Equipment Guarantee:
- 300,000
[custom-specifications]
| Specifications | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | CP500PFCRM1U |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Line | PFC Sinewave |
| Product Model | CP500PFCRM1U |
| Product Name | CP500PFCRM1U PFC Sinewave UPS Systems |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 2 |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 8 ms |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS Bypass Technology |
| Application/Usage | Security System,Audio/Video Equipment,Workstation,Corporate,Server,Network Device,Telecommunication |
| Surge Suppression | Yes |
| Features | Audible Alarm |
| Power Description | |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 88 V AC - 144 V AC,97 V AC - 144 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 57 Hz,63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1150 J |
| Circuit Breaker | Yes |
| Output Power Factor | 0.6 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Dry Contact,SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode,Low Battery,Overload,Fault |
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 2 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 6V |
| Battery Capacity | 7000 mAh |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 10.50 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Product Color | Black |
| Height | 1.73" (44 mm) |
| Width | 17.01" (432 mm) |
| Depth | 9.06" (230 mm) |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 17.97 lb (8150 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year warranty (including coverage of batteries) |
[/custom-specifications]
[custom-options]
| Product | CyberPower RB0670X2 Replacement Battery Cartridge - 2 X 6 V / 7 Ah Sealed Lead-Acid Battery, 18MO Warranty |
| SKU | RB0670X2 |
| Sale Price | $97.09 |
| Product | CyberPower RMCARD205 Remote Management Card - Black 3YR Warranty - Hardware & Accessories |
| SKU | RMCARD205 |
| Sale Price | $381.01 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
