- LED aimer is a perfect choice for patient-facing applications
- Perfect for applications that require direct association with a workstation or a notebook

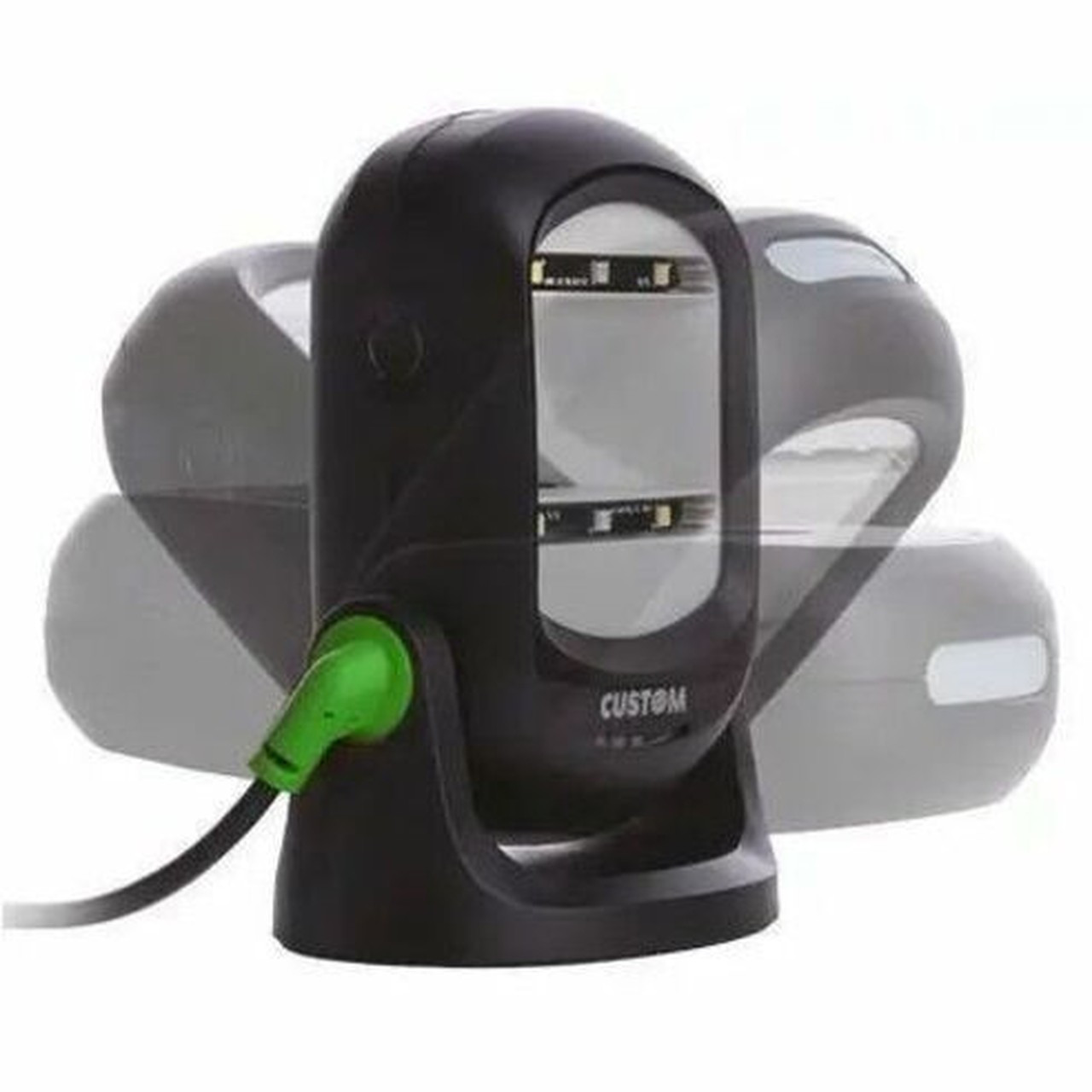

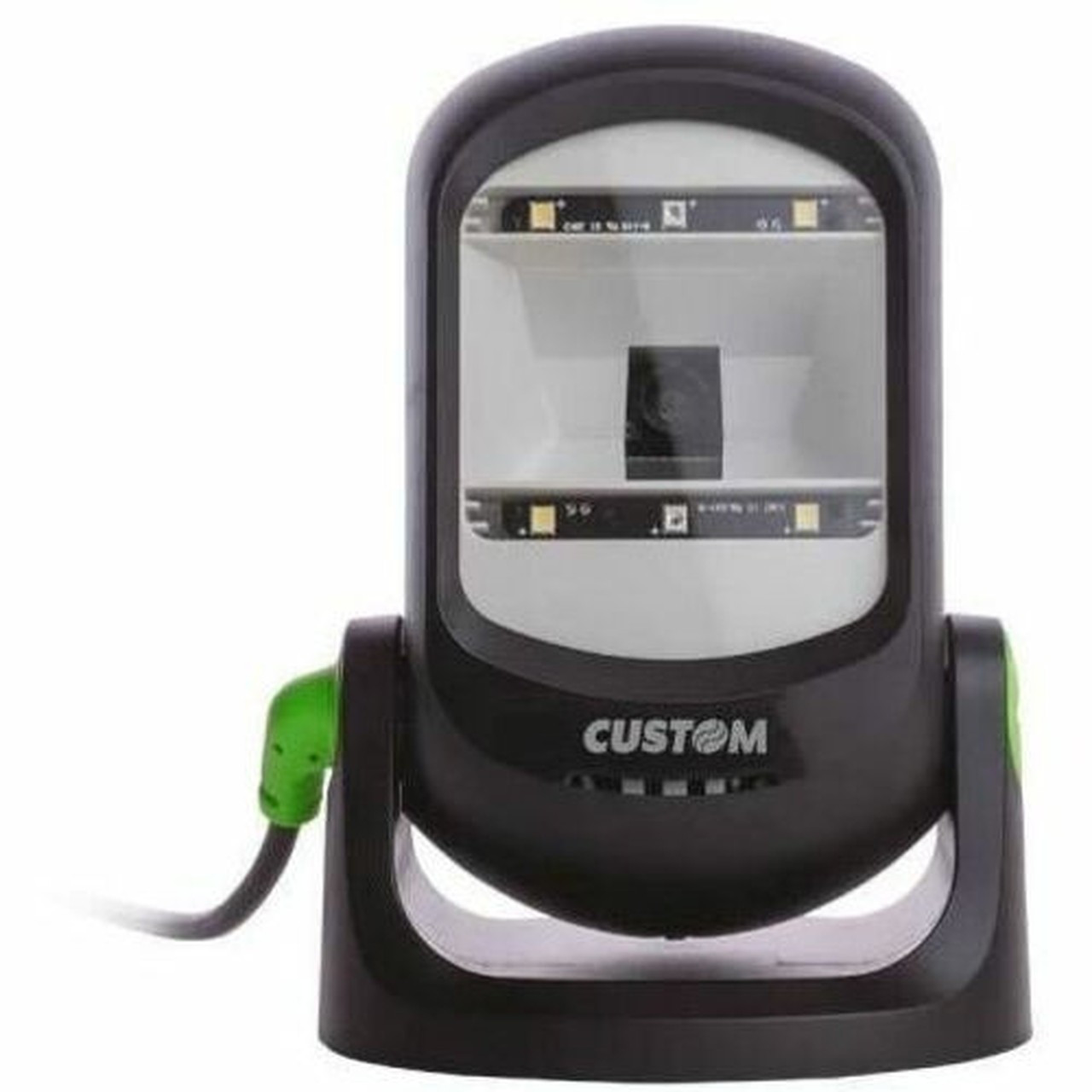

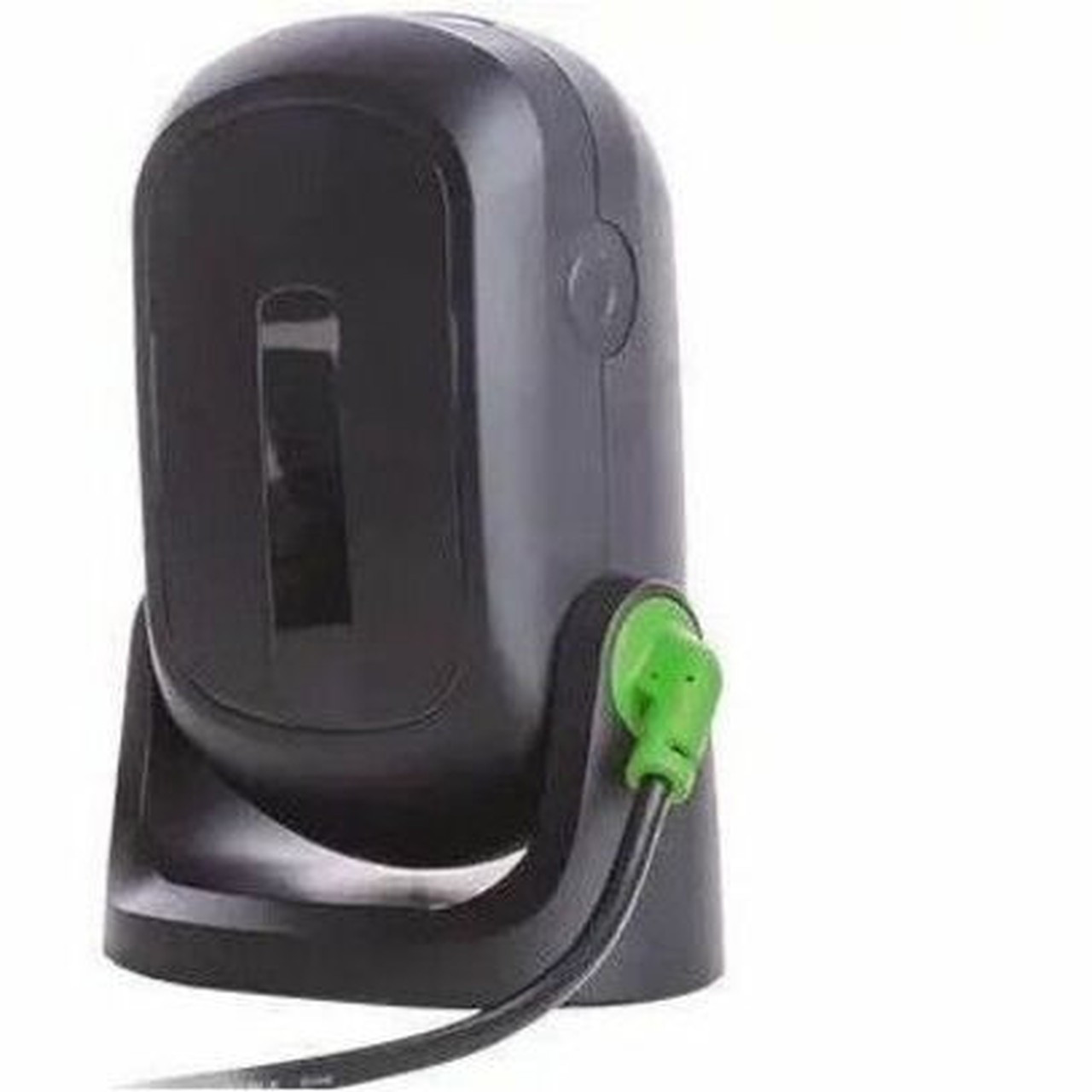

Marketing Information: SM600 is a compact and omni-directional Imaging Presentation Scanner. Its revolutionary imaging technology is housed in an elegant, stylish, yet durable design. The compact size and small footprint makes it the ideal solution for space-constrained environments. With SM600, you get the versatility to scan 1D or 2D barcodes, including labels, coupons, gift cards, loyalty cards, boarding passess and even theater or cinema tickets. SM600 guarantees intuitive and fast reading performance thanks to point-and-shoot scanning simplicity with no need to align barcode and scanner.
Connectivity Technology: CableScanning Capability: Barcode Symbology Supported: 1D :
- UPC-A, UPC-E
- EAN-8/JAN-8
- EAN-13/JAN-13
- Code 39
- Code 128
- Interleaved 25
- Industrial 25
- Matrix 25
- Codabar/NW7
- Code 93
- China Post
- MSI/Plessey
- Telepen
- GS1 Databar Omni-directional
- GS1 Databar Limited
- GS1 Databar Expended
2D:
- Data Matrix
- PDF 417
- QR Code
- Micro PDF 417
- Micro QR Code
- Aztec
- Dotcode
- Maxi Code
- Han Xin Code
Light Source: LEDScan Pattern: Omni-directionalScanning Distance: 7.87" (200 mm)Field of View (Horizontal): -55°Field of View (Vertical): -35°Reading Angle (Skew): 60°Reading Angle (Pitch): 60°Reading Angle (Roll): 360°Maximum Ambient Light: 100000 luxDrop Specification: 47.24 inches (120 cm) drop on concrete surface
Minimum Element Resolution (Code 39): 3 mil (0.08 mm)Maximum Element Resolution (Code 39): 20 mil (0.51 mm)Maximum Element Resolution (DataMatrix): 20 mil (0.51 mm)Maximum Element Resolution (PDF417): 20 mil (0.51 mm)Image Sensor Resolution: 1280 x 800Host Interface: USBInput Current: 310 mAStandby Current: 90 mAOperating Temperature: 32°F (0°C) to 122°F (50°C)Storage Temperature: -4°F (-20°C) to 158°F (70°C)Humidity (Non-condensing): 20% to 95%Form Factor: DesktopColor Family: BlackProduct Color: BlackProduct Material: ABS PlasticHeight: 5.43" (137.94 mm)Width: 3.85" (97.89 mm)Depth: 2.95" (74.90 mm)Weight (Approximate): 315 gIngress Protection (IP) Rating: IP42Country of Origin: TaiwanLimited Warranty: 3 Year
[custom-specifications]
SpecificationsManufacturer: Custom S.p.A
Manufacturer Part Number: 995ED044100333
Manufacturer Website Address: http://www.custom.biz
Brand Name: Custom
Product Line: SCANMATIC
Product Model: SM600
Product Name: Scanmatic Barcode Scanner SM600 Scanmatic Presentation Scanner
Product Type: Barcode Scanner
Technical InformationConnectivity Technology: Cable
Scanning Capability:
Barcode Symbology Supported:
1D :
- UPC-A, UPC-E
- EAN-8/JAN-8
- EAN-13/JAN-13
- Code 39
- Code 128
- Interleaved 25
- Industrial 25
- Matrix 25
- Codabar/NW7
- Code 93
- China Post
- MSI/Plessey
- Telepen
- GS1 Databar Omni-directional
- GS1 Databar Limited
- GS1 Databar Expended
2D:
- Data Matrix
- PDF 417
- QR Code
- Micro PDF 417
- Micro QR Code
- Aztec
- Dotcode
- Maxi Code
- Han Xin Code
Light Source: LED
Scan Pattern: Omni-directional
Scanning Distance: 7.87" (200 mm)
Field of View (Horizontal): -55°
Field of View (Vertical): -35°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Drop Specification:
47.24 inches (120 cm) drop on concrete surface
Minimum Element Resolution (Code 39): 3 mil (0.08 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Maximum Element Resolution (DataMatrix): 20 mil (0.51 mm)
Maximum Element Resolution (PDF417): 20 mil (0.51 mm)
Image Sensor Resolution: 1280 x 800
Interfaces/PortsHost Interface: USB
Power DescriptionInput Current: 310 mA
Standby Current: 90 mA
Environmental ConditionsOperating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -4°F (-20°C) to 158°F (70°C)
Humidity (Non-condensing): 20% to 95%
Physical CharacteristicsForm Factor: Desktop
Color Family: Black
Product Color: Black
Product Material: ABS Plastic
Height: 5.43" (137.94 mm)
Width: 3.85" (97.89 mm)
Depth: 2.95" (74.90 mm)
Weight (Approximate): 315 g
MiscellaneousIngress Protection (IP) Rating: IP42
Country of Origin: Taiwan
WarrantyLimited Warranty: 3 Year
[/custom-specifications]
