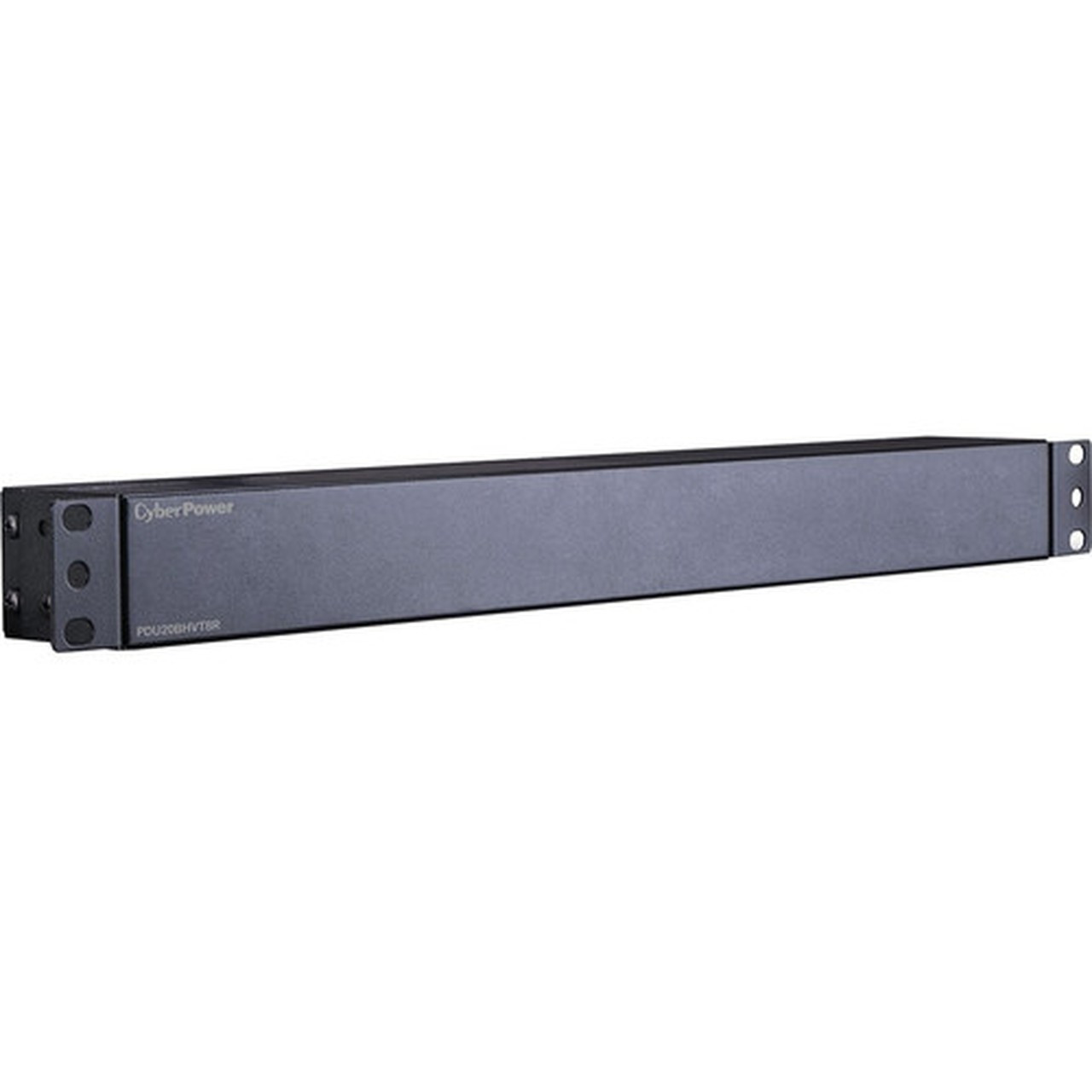

CyberPower Basic PDU20BHVT8R 8-Outlets PDU - Basic - NEMA L6-20P - 2 x IEC 60320 C19, 6 x IEC 60320 C13 - 230 V AC - 1U - Vertical - (PDU20BHVT8R)

Marketing Information:

The CyberPower Basic PDU20BHVT8R 8-Outlets PDU provides 208V/230V 20A output. It distributes power to 8 IEC receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.

PDU Type: Basic

Plug/Connector Type: NEMA L6-20P

Receptacle Type: IEC 60320 C19,IEC 60320 C13

Receptacle Detail: 2 x IEC 60320 C19,6 x IEC 60320 C13

Protection Type: Overload Protection

Input Voltage: 230 V AC

Input Voltage Range: 200 V AC - 230 V AC

Output Voltage: 200 V DC,208 V AC,230 V AC

Mounting Orientation: Vertical

Mount Type: Rack-mountable

Rack Height: 1U

Height: 1.75" (44.45 mm)

Width: 17.50" (444.50 mm)

Length: 1.50" (38.10 mm)

Weight (Approximate): 1.68 kg

Package Contents:

• Basic PDU20BHVT8R 8-Outlets PDU
• Cord Retention Tray

Energy Star: No

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: Lifetime
