CyberPower Basic PDU30BT8F8R 16-Outlets PDU - Basic - NEMA L5-30P - 16 x NEMA 5-20R - 120 V AC - 1U - Vertical - Rack-mountable (PDU30BT8F8R)
- Basic PDU30BT8F8R 16-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
Marketing Information:

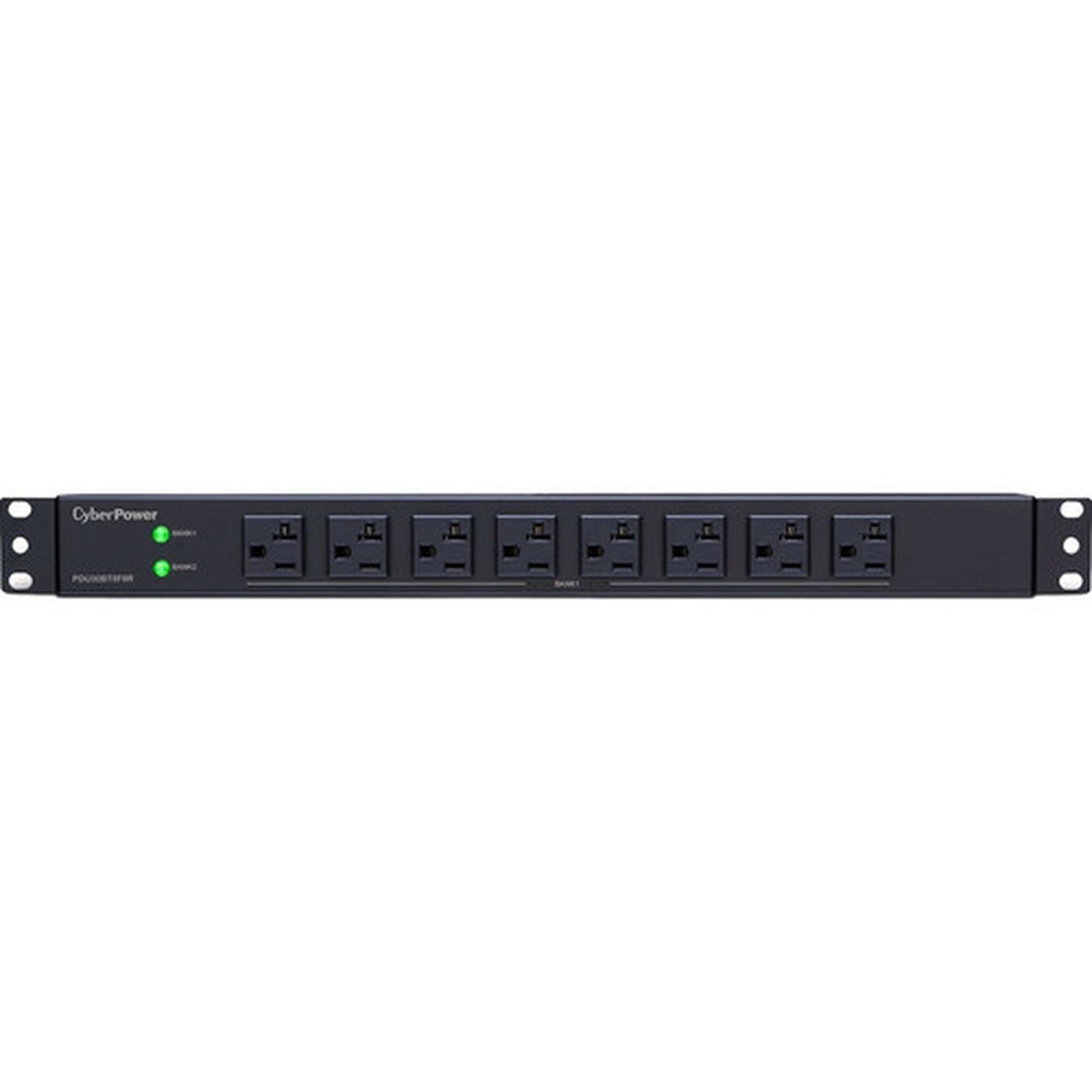

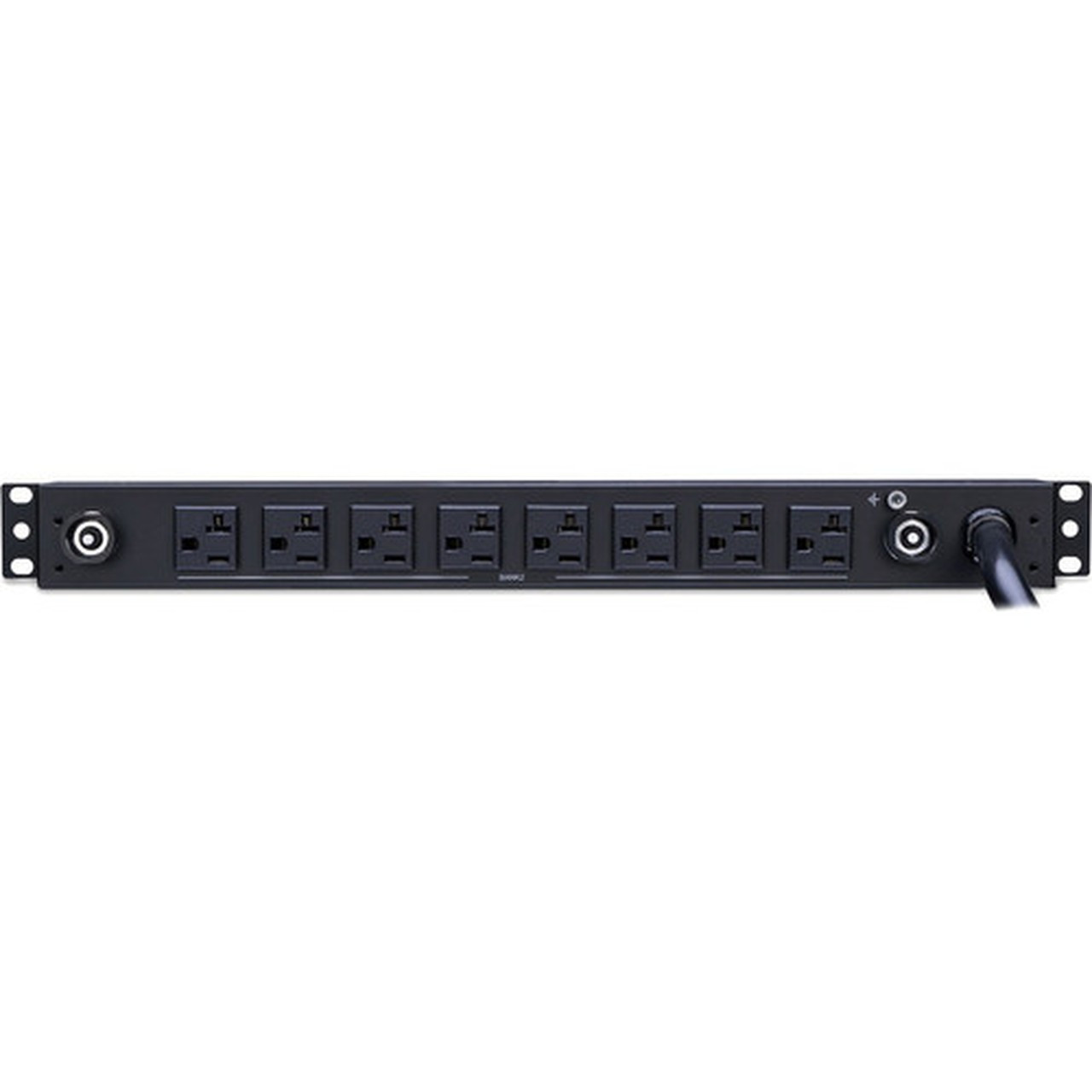

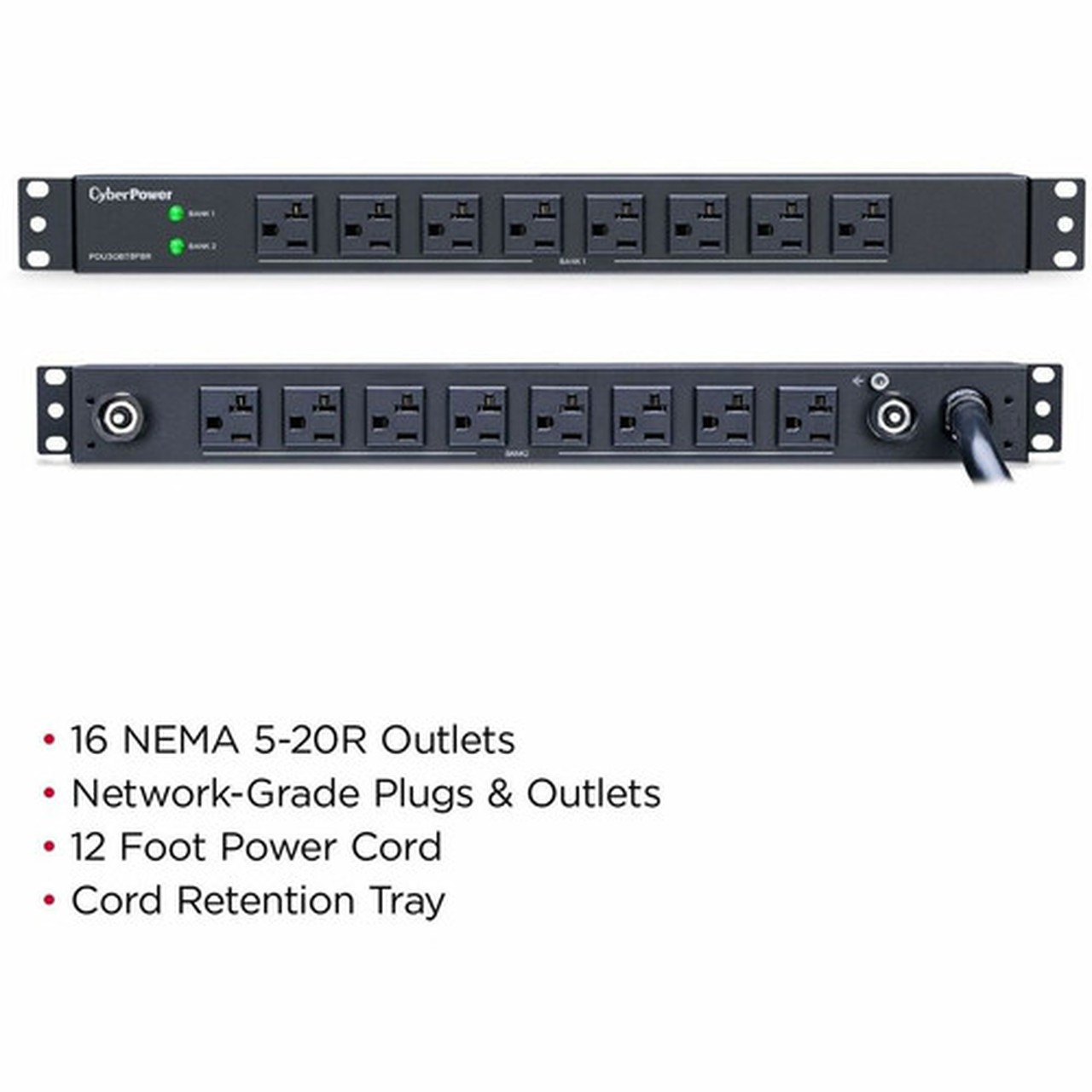

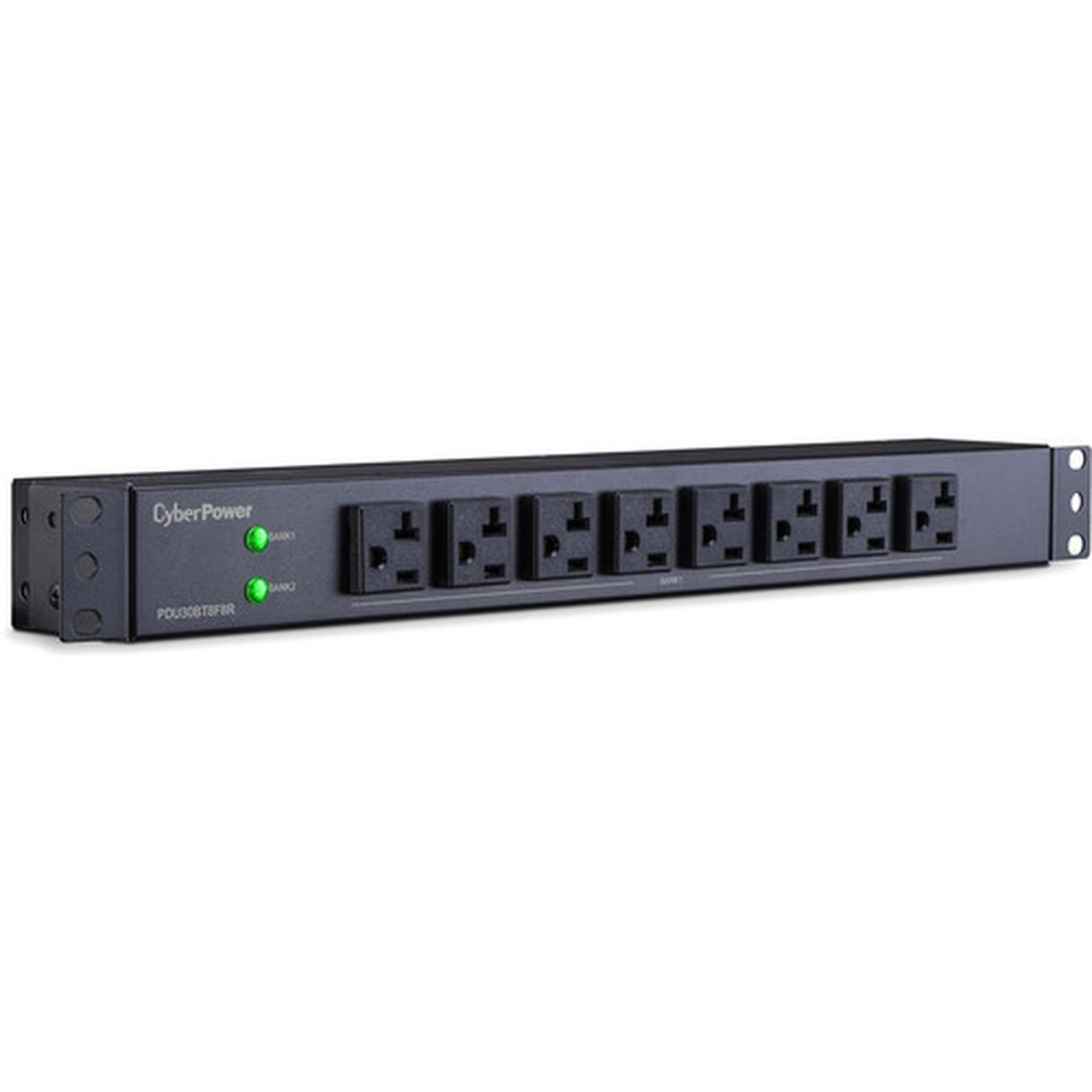

The CyberPower PDU30BT8F8R, a 16-outlet (8 front, 8 rear) rackmount basic power distribution unit (PDU), provides 100 - 125 V 30A output. It distributes power to 16 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU30BT8F8R has rugged, industrial-grade metal housing and a 12-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Power DistributionDelivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.
Twist Lock Plug
Secures an outlet by twisting and locking into place to prevent accidental disconnection.
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
What's In The Box
PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card
PDU Type: Basic
Phase: Single Phase
Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 16 x NEMA 5-20R
Protection Type: Overload Protection
Input Voltage: 120 V AC
Input Voltage Range: 100 V AC - 125 V AC
Output Voltage Range: 100 V AC - 125 V AC
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 1U
Height: 1.75" (44.45 mm)
Width: 17.50" (444.50 mm)
Depth: 2.25" (57.15 mm)
Weight (Approximate): 2.72 kg
Package Contents:
Energy Star: No
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: Lifetime
- Basic PDU
- 16 NEMA 5-20R output receptacles (8 Front/8 Rear)
- 120V AC - 50/60Hz - 30-amp electrical capacity with circuit breaker
- 1U Rack Mount - Rugged industrial-grade metal housing
[custom-specifications]
| Specifications | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU30BT8F8R |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Series | Basic PDU |
| Product Model | PDU30BT8F8R |
| Product Name | Basic PDU30BT8F8R 16-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 16 x NEMA 5-20R |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 125 V AC |
| Output Voltage Range | 100 V AC - 125 V AC |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 2.25" (57.15 mm) |
| Weight (Approximate) | 2.72 kg |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
Lifetime
