CyberPower Metered ATS PDU PDU44003 17-Outlets PDU - Metered - NEMA L5-30P - 16 x NEMA 5-20R, 1 x NEMA L5-30R - 120 V AC - Network - - (PDU44003)

Marketing Information:

Ensure continued operation of critical devices with the CyberPower PDU44003 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

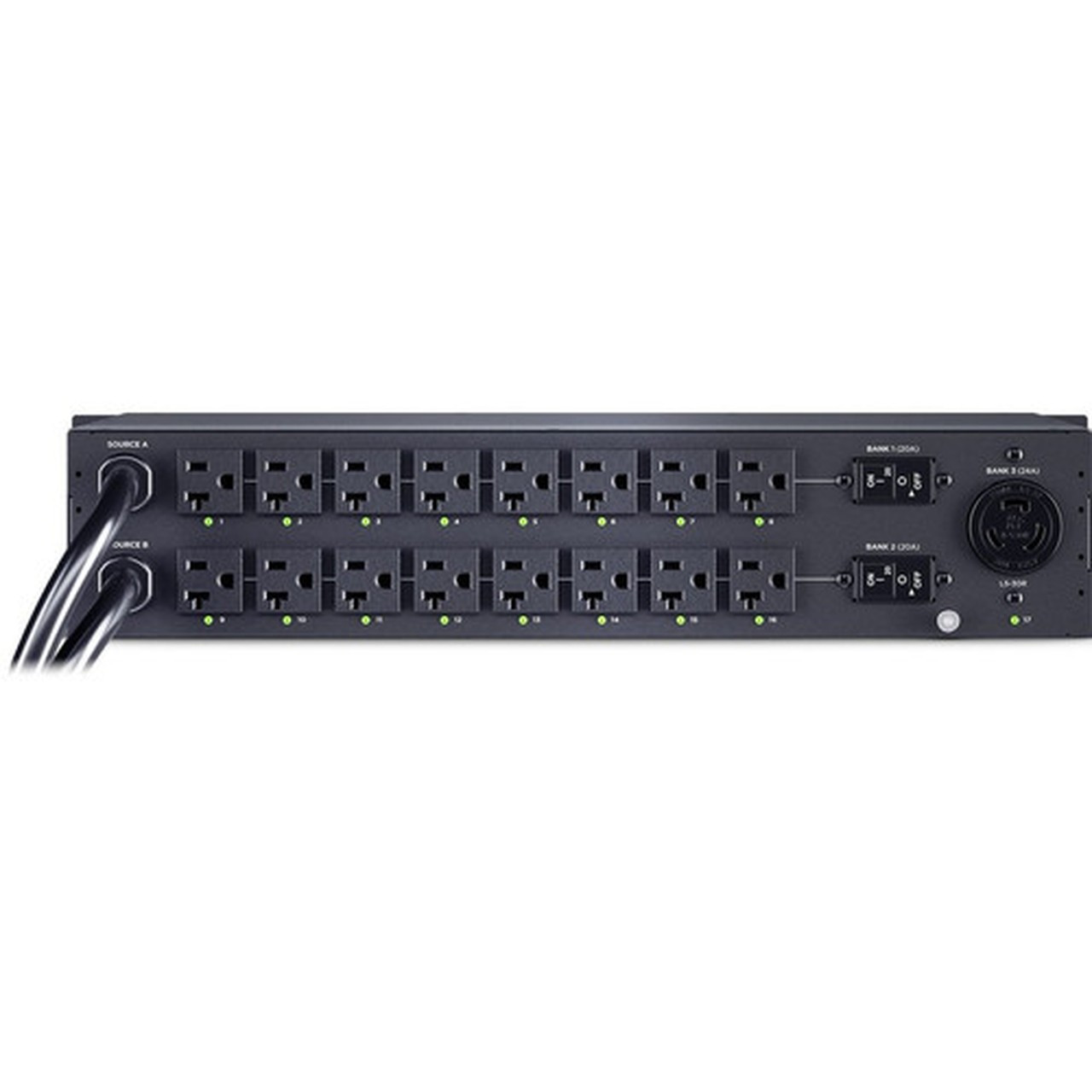

The PDU44003 supports inputs between 100-120V and includes (16) NEMA 5-20R and (1) L5-30R outlets. Dual NEMA L5-30P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44003 is protected by a three-year limited warranty

PDU Type: Metered

Phase: Single Phase

Plug/Connector Type: NEMA L5-30P

Plug/Connector Detail: 2 x NEMA L5-30P

Receptacle Type: NEMA 5-20R,NEMA L5-30R

Receptacle Detail: 16 x NEMA 5-20R,1 x NEMA L5-30R

Protection Type: Overload Protection

Input Voltage: 120 V AC

Input Voltage Range: 100 V AC - 120 V AC

Output Voltage: 120 V AC

Output Voltage Range: 100 V AC - 120 V AC

Input Current: 30 A

Management:

• IPv4
• TCP/IP
• UDP
• SNMPv1
• HTTP
• NTP
• DNS
• Telnet
• DHCP
• SMTP
• FTP
• IPv6
• SNMPv3
• HTTPs
• SSH
• SSL
• TLS
• LDAP(S)
• RADIUS
• Syslog
• CLI
• Windows AD

Network (RJ-45): Yes

Product Color: Black

Mounting Orientation: Horizontal

Mount Type: Rack-mountable

Rack Height: 2U

Height: 3.50" (88.90 mm)

Width: 17.05" (433.10 mm)

Depth: 8.45" (214.60 mm)

Weight (Approximate): 7.98 kg

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
