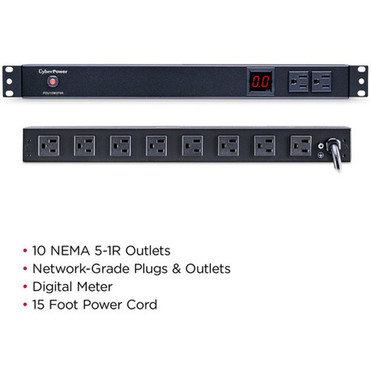

- Metered PDU
- 10 NEMA 5-15R (2 Front/8 Rear) output receptacles
- 120V AC - 50/60Hz - 15-amp electrical capacity with circuit breaker
- 1U Rack Mount - Rugged industrial-grade metal housing
Marketing Information: The CyberPower PDU15M2F8R, a 10-outlet (2 front, 8 rear), rackmount metered power distribution unit (PDU), provides 100 - 125 V 15A output. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
Designed for datacenters and other electrically demanding applications, the PDU15M2F8R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically. The PDU15M2F8R comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.
Twist Lock Plug
Secures an outlet by twisting and locking into place to prevent accidental disconnection.
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details. What's In The Box
PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card
PDU Type: MeteredPhase: Single PhasePlug/Connector Type: NEMA 5-15PReceptacle Type: NEMA 5-15RReceptacle Detail: 10 x NEMA 5-15RProtection Type: Overload ProtectionInput Voltage: 120 V ACInput Voltage Range: 100 V AC - 125 V ACOutput Voltage Range: 100 V AC - 125 V ACInput Current: 15 AMounting Orientation: VerticalMount Type: Rack-mountableRack Height: 1UHeight: 1.75" (44.45 mm)Width: 17.50" (444.50 mm)Depth: 2.25" (57.15 mm)Weight (Approximate): 1.81 kgPackage Contents: - Metered PDU15M2F8R 10-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
Energy Star: NoEnvironmentally Friendly: YesLimited Warranty: Lifetime
[custom-specifications]
SpecificationsManufacturer: CyberPower Systems, Inc
Manufacturer Part Number: PDU15M2F8R
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: Metered PDU
Product Model: PDU15M2F8R
Product Name: Metered PDU15M2F8R 10-Outlets PDU
Product Type: PDU
Technical InformationPDU Type: Metered
Phase: Single Phase
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 10 x NEMA 5-15R
Protection Type: Overload Protection
Power DescriptionInput Voltage: 120 V AC
Input Voltage Range: 100 V AC - 125 V AC
Output Voltage Range: 100 V AC - 125 V AC
Input Current: 15 A
Physical CharacteristicsMounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 1U

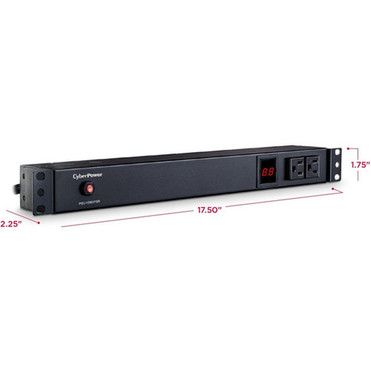

Height: 1.75" (44.45 mm)
Width: 17.50" (444.50 mm)
Depth: 2.25" (57.15 mm)
Weight (Approximate): 1.81 kg
MiscellaneousPackage Contents:
- Metered PDU15M2F8R 10-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
Energy Star: No
Environmentally Friendly: Yes
WarrantyLimited Warranty: Lifetime
[/custom-specifications]
