CyberPower PDU20MV20F 20-Outlets PDU - Metered - NEMA 5-20P - 20 x NEMA 5-20R - 120 V AC - Vertical - Rack-mountable (PDU20MV20F)

Marketing Information:

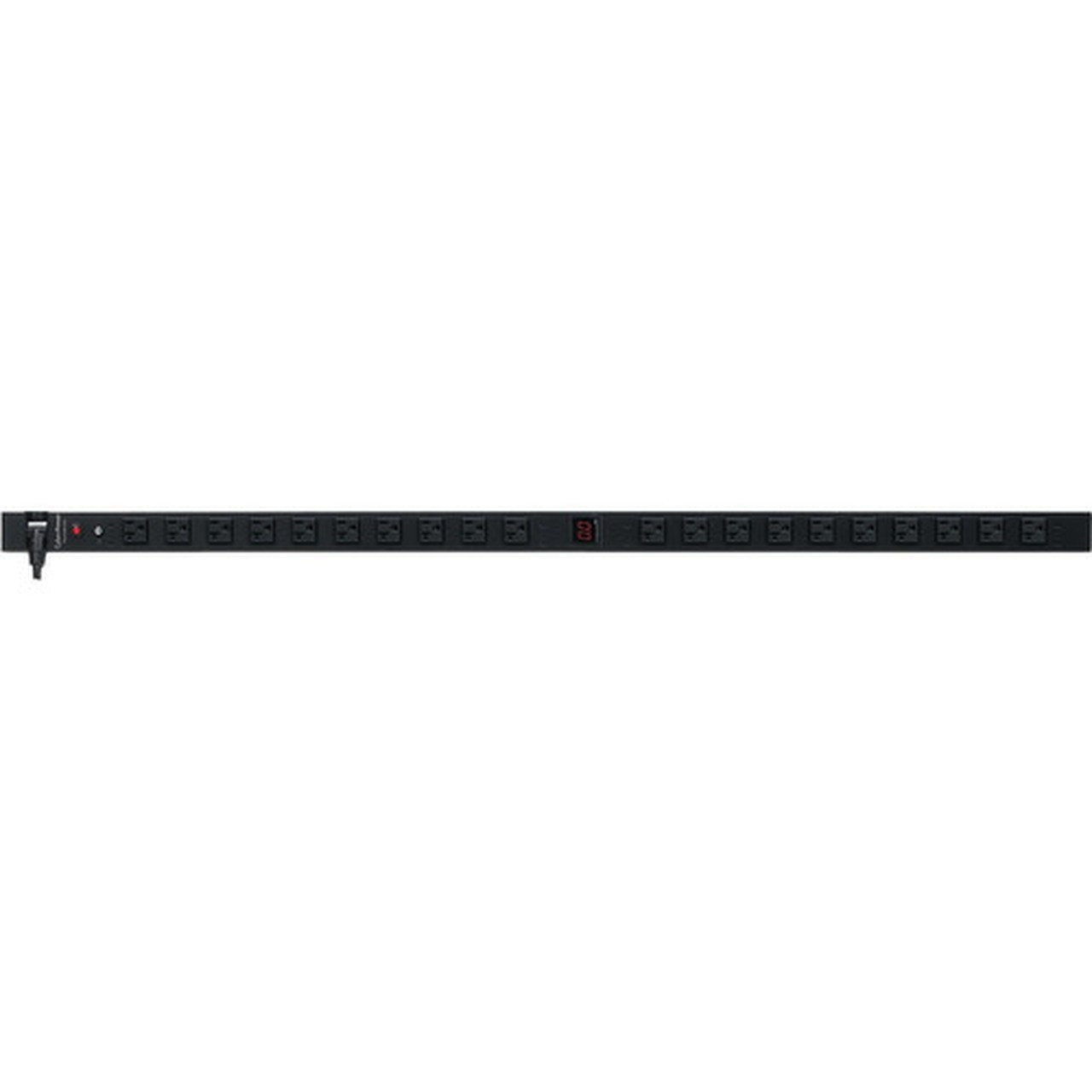

The CyberPower PDU20MV20F, a 20-outlet (front), 0U vertical rackmount metered power distribution unit (PDU), provides 100 - 125 V 20A output. It distributes power to 20 NEMA 5-20R receptacles from a single NEMA 5-20P plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.

Designed for datacenters and other electrically demanding applications, the PDU20MV20F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation. The PDU20MV20F comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

What's In The Box

PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card

PDU Type: Metered

Phase: Single Phase

Plug/Connector Type: NEMA 5-20P

Receptacle Type: NEMA 5-20R

Receptacle Detail: 20 x NEMA 5-20R

Protection Type: Overload Protection

Input Voltage: 120 V AC

Input Voltage Range: 100 V AC - 125 V AC

Output Voltage Range: 100 V AC - 125 V AC

Input Current: 20 A

Mounting Orientation: Vertical

Mount Type: Rack-mountable

Height: 48" (1219.20 mm)

Width: 1.75" (44.45 mm)

Depth: 2.25" (57.15 mm)

Weight (Approximate): 4.08 kg

Package Contents:

• PDU20MV20F 20-Outlets PDU
• Cord Retention Tray
• User Manual
• Screw Kit
• Cord Clip Kit
• Horizontal Mounting Brackets
• Vertical Mounting Brackets
• Product Registration Card

Energy Star: No

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: Lifetime
