- Delivers AC power to servers, equipment, and connected devices
- Switch-free design safeguards against accidental power shutdown
- Provides local and remote control for individual and multiple outlets
- Provides immediate updates about power events via email, SMS text, or SNMP traps
- Includes 3-year limited warranty

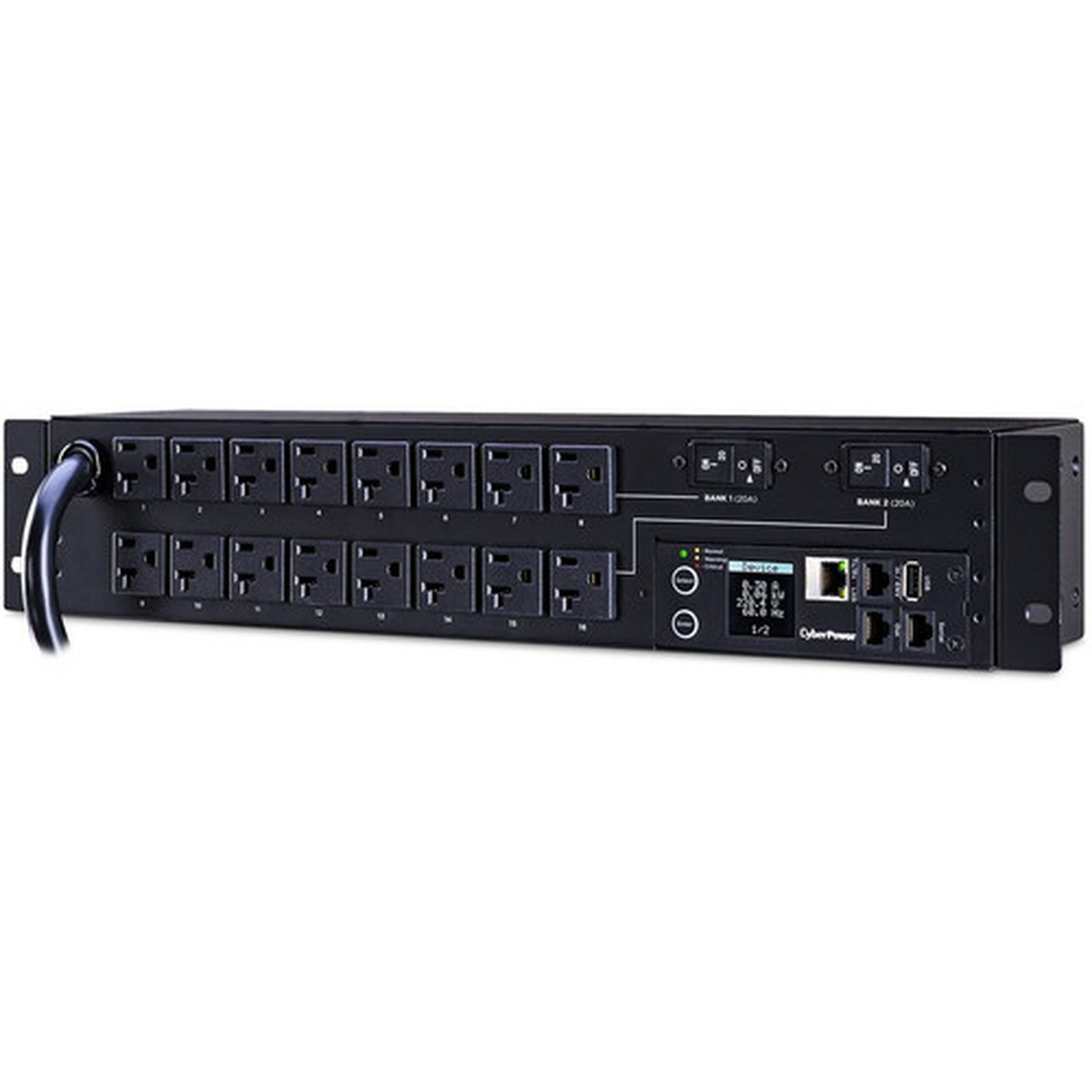

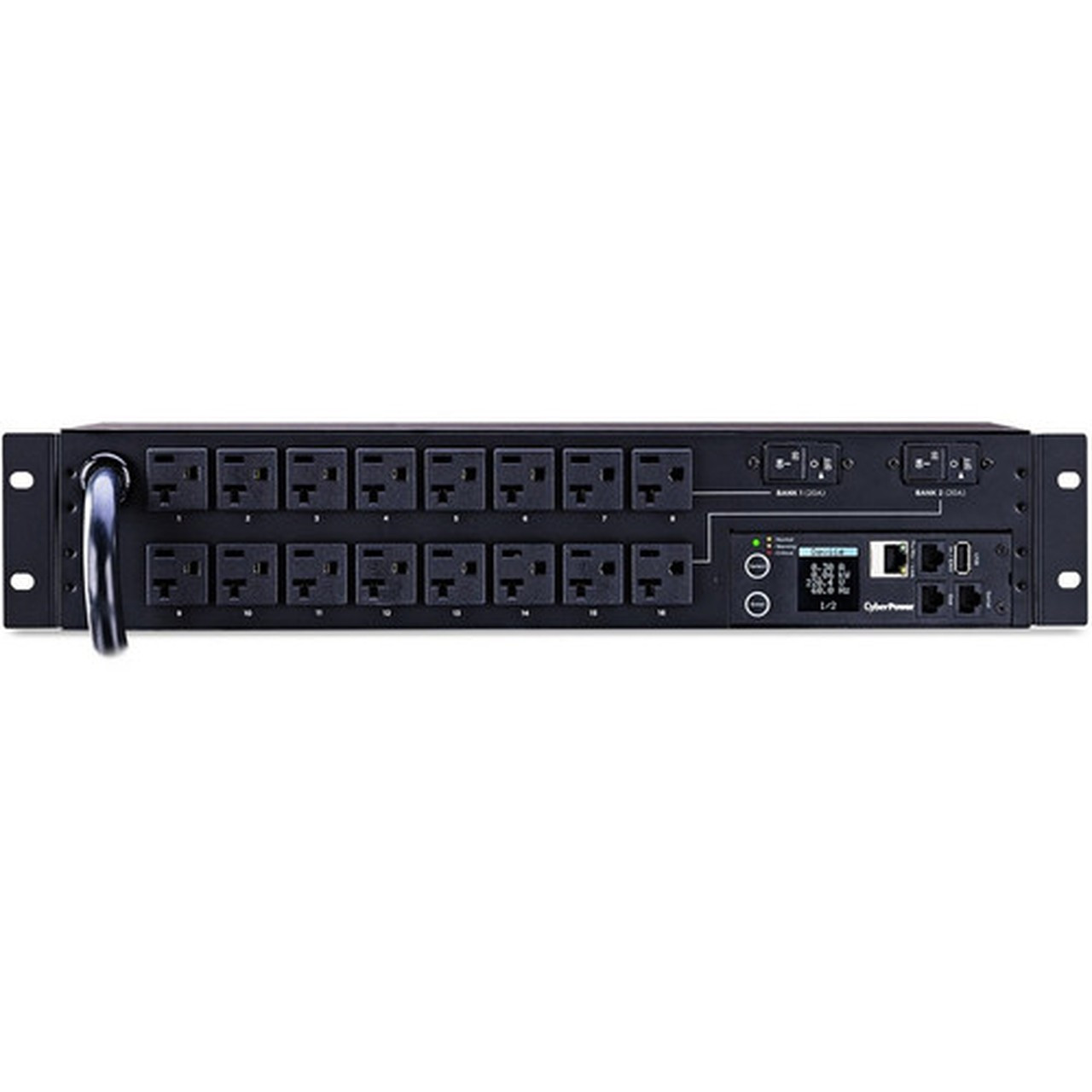

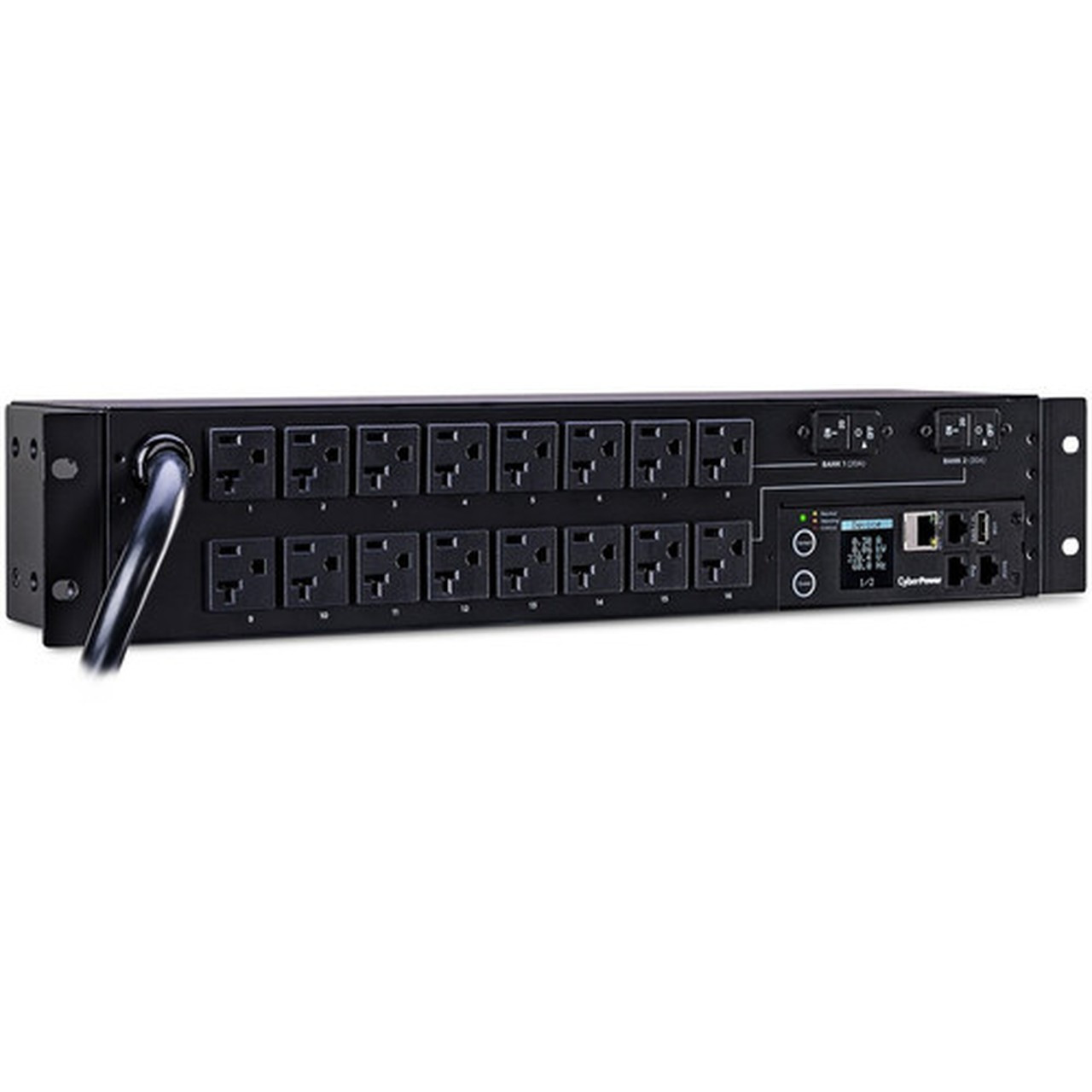

Marketing Information: The CyberPower PDU31003, a 16-outlet (front), 2U rackmount monitored power distribution unit (PDU), provides 120V 30A output. PDU31003 distributes power to 16 NEMA 5-20R receptacles from a single twist lock NEMA L5-30P plug with unfiltered electrical pass-through. Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD.
- Delivers AC power to servers, equipment, and connected devices
- Switch-free design safeguards against accidental power shutdown
- Provides local and remote control for individual and multiple outlets
- Enables offsite and onsite tracking of PDU vitals
- Provides immediate updates about power events via email, SMS text, or SNMP traps
- Includes 3-year limited warranty
PDU Type: MonitoredPlug/Connector Type: NEMA L5-30PPlug/Connector Detail: 1 x NEMA L5-30PReceptacle Type: NEMA 5-20RReceptacle Detail: 16 x NEMA 5-20RInput Voltage: 120 V ACInput Voltage Range: 100 V AC - 120 V ACOutput Voltage Range: 100 V AC - 120 V ACInput Current: 30 AManagement: - IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
Network (RJ-45): YesMount Type: Rack-mountableRack Height: 2UHeight: 3.50" (88.90 mm)Width: 17.05" (433.07 mm)Length: 4.40" (111.76 mm)Weight (Approximate): 3.99 kgPackage Contents: - PDU31003 16-Outlet PDU
- 4 x Mounting Brackets: 2 Short & 2 Long
- 12 x (Flat Head M4 x 8) Bracket Mounting Screws
- 6 x (M5 x 12) Rack Mounting Screws/Washers
- 2 x Cord Retention Tray
- 12 x (M3 x 6) Cord Retention Tray Mounting Screws
- 24 x Cable Ties
- RJ45/DB9 Serial Port Connection Cable
- Users Manual
- Registration & Software Download Cards
Energy Star: NoCountry of Origin: ChinaLimited Warranty: 3 Year
[custom-specifications]
SpecificationsManufacturer: CyberPower Systems, Inc
Manufacturer Part Number: PDU31003
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: Monitored PDU
Product Model: PDU31003
Product Name: PDU31003 16-Outlet PDU
Product Type: PDU
Technical InformationPDU Type: Monitored
Plug/Connector Type: NEMA L5-30P
Plug/Connector Detail: 1 x NEMA L5-30P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 16 x NEMA 5-20R
Power DescriptionInput Voltage: 120 V AC
Input Voltage Range: 100 V AC - 120 V AC
Output Voltage Range: 100 V AC - 120 V AC
Input Current: 30 A
ManagementManagement:
- IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
Interfaces/PortsNetwork (RJ-45): Yes
Physical CharacteristicsMount Type: Rack-mountable
Rack Height: 2U
Height: 3.50" (88.90 mm)
Width: 17.05" (433.07 mm)
Length: 4.40" (111.76 mm)
Weight (Approximate): 3.99 kg
MiscellaneousPackage Contents:
- PDU31003 16-Outlet PDU
- 4 x Mounting Brackets: 2 Short & 2 Long
- 12 x (Flat Head M4 x 8) Bracket Mounting Screws
- 6 x (M5 x 12) Rack Mounting Screws/Washers
- 2 x Cord Retention Tray
- 12 x (M3 x 6) Cord Retention Tray Mounting Screws
- 24 x Cable Ties
- RJ45/DB9 Serial Port Connection Cable
- Users Manual
- Registration & Software Download Cards
Energy Star: No
Country of Origin: China
WarrantyLimited Warranty: 3 Year
[/custom-specifications]
