CyberPower PDU41105 Switched PDU Series - Switched - NEMA L6-30P - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 230 V AC - Network (RJ-45) (PDU41105)

Marketing Information:

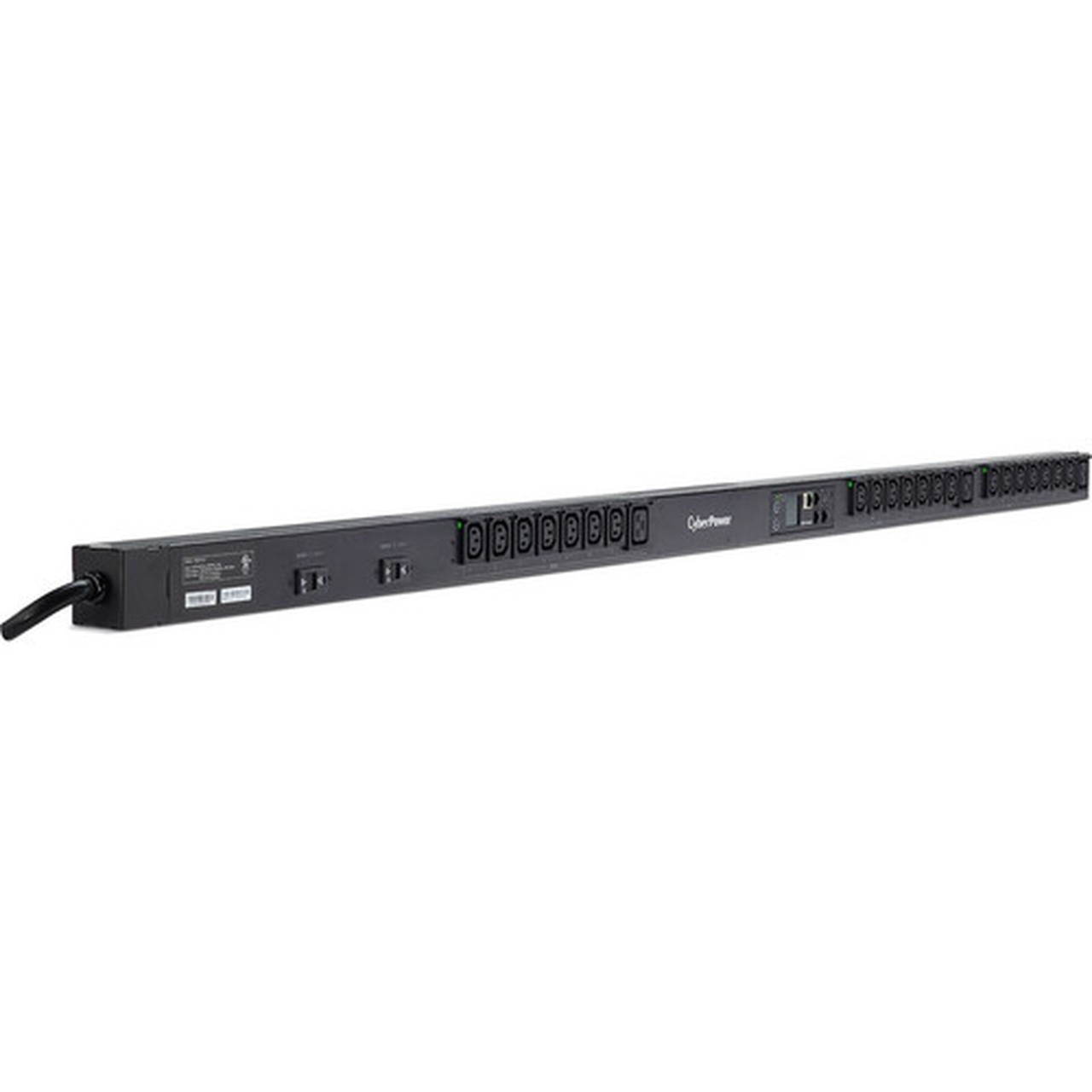

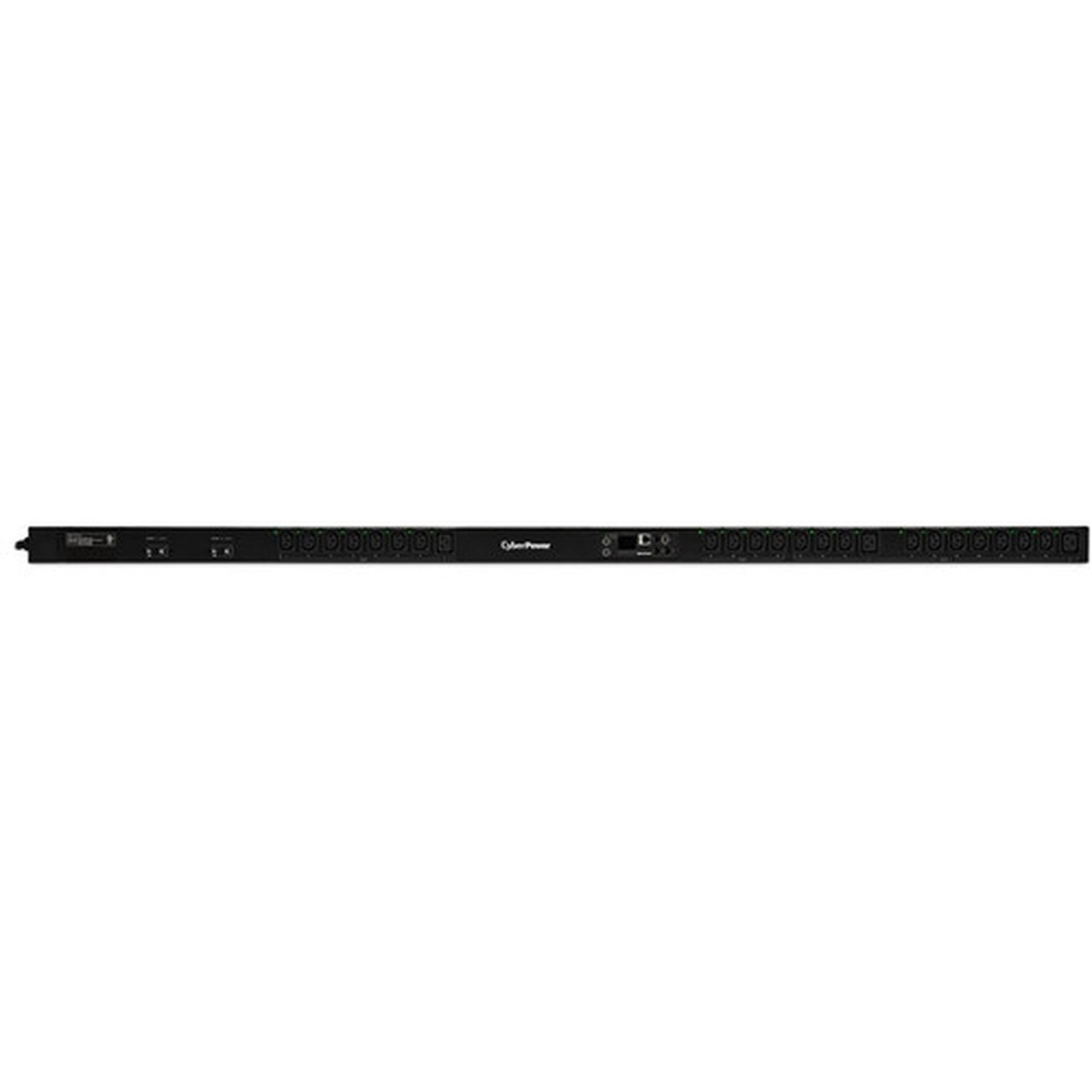

The CyberPower PDU41105 is a 0U rackmount switched power distribution unit or PDU that has 24 outlets and provides 240V 30A output. This PDU distributes power to 21 IEC-320 C13 outlets and 3 IEC-320 C19 outlet receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through.

• Delivers AC power to servers, equipment, and connected devices
• Switch-free design safeguards against accidental power shutdown
• Provides local and remote control for individual and multiple outlets
• Enables offsite and onsite tracking of PDU vitals
• Provides immediate updates about power events via email, SMS text, or SNMP traps
• Includes 3-year limited warranty

PDU Type: Switched

Design: Modular

Phase: Single Phase

Plug/Connector Type: NEMA L6-30P

Receptacle Type: IEC 60320 C13,IEC 60320 C19

Receptacle Detail: 21 x IEC 60320 C13,3 x IEC 60320 C19

Input Voltage: 230 V AC

Input Voltage Range: 200 V AC - 240 V AC

Output Voltage: 230 V AC

Output Voltage Range: 200 V AC - 240 V AC

Input Current: 30 A

Management: Protocols:

• IPv4
• TCP/IP
• UDP
• SNMPv1
• HTTP
• NTP
• DNS
• Telnet
• DHCP
• SMTP
• FTP
• IPv6
• SNMPv3
• HTTPs
• SSH
• SSL
• TLS
• LDAP(S)
• RADIUS
• Syslog
• Windows AD

Remote Outlet Switching: Yes

Network (RJ-45): Yes

Mounting Orientation: Vertical

Mount Type: Rack-mountable,Wall-mountable

Rack Height: 0U

Height: 65.60" (1666.24 mm)

Width: 2.20" (55.88 mm)

Depth: 1.88" (47.75 mm)

Weight (Approximate): 17.64 lb (8001.37 g)

Package Contents:

• PDU41101 Switched PDU Series
• 2 x Mounting Brackets
• 6 x M4x5 Screws
• 6 x M5x12 screws/washers
• 6 x M3x6 Screws
• NEMA L5-20R to 5-20P Adapter
• Cord Retention Tray
• Cable Ties
• RJ45/DB9 Serial Cable
• User's Manual
• Registration and Download Cards

Energy Star: No

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
