CyberPower Smart App Intelligent LCD OR500LCDRM1U 500VA UPS - 500VA/300W - 3 Minute Full Load - 4 x NEMA 5-15R - 2 x NEMA 5-15R - (OR500LCDRM1U)

Marketing Information:

• A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR500LCDRM1U comes with a three-year warranty and a

• 300,000 Connected Equipment Guarantee.

  More from the Manufacturer

AVR: Yes

Plug/Connector Type: NEMA 5-15P

Receptacle Type: NEMA 5-15R

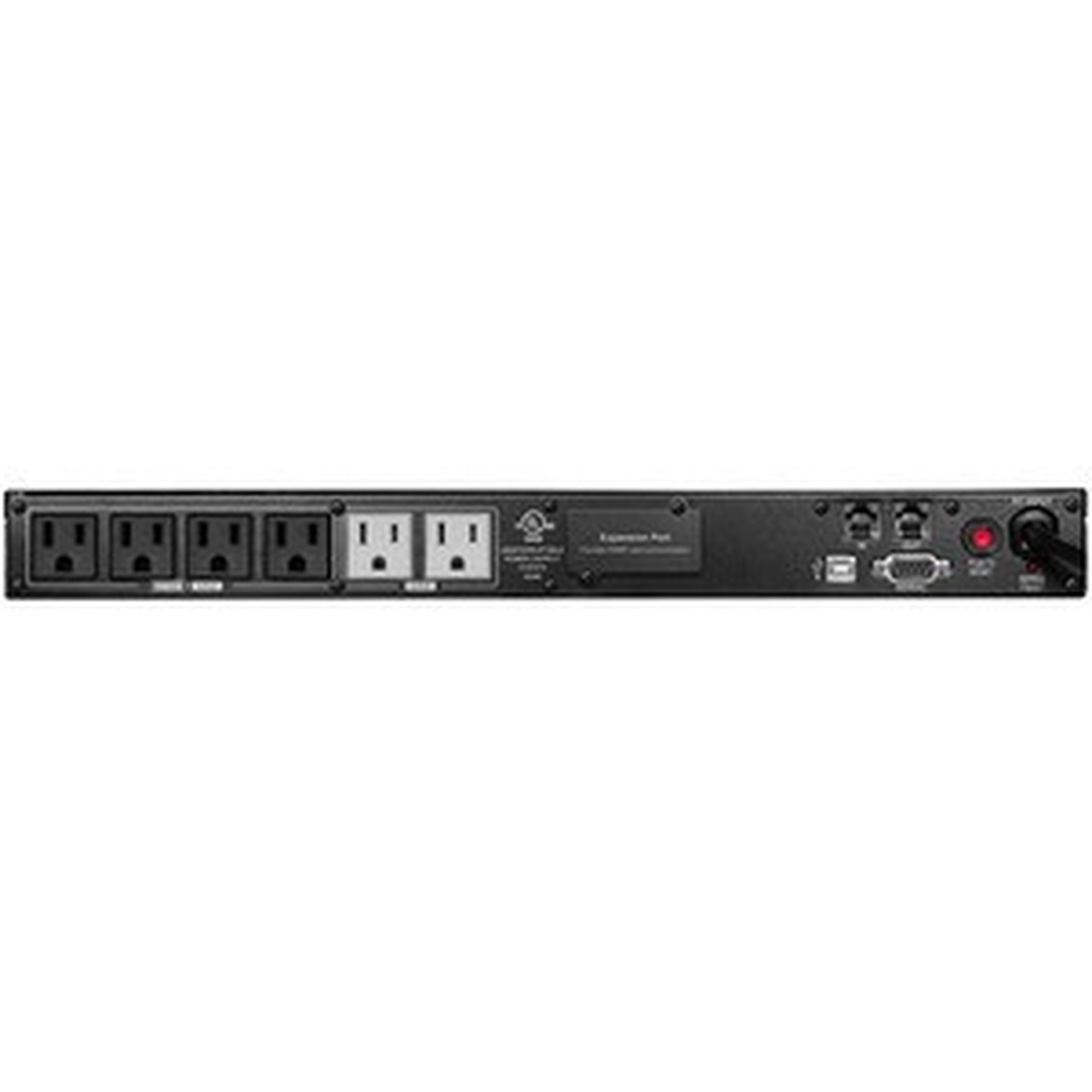

Receptacle Detail: 6 x NEMA 5-15R

Number of Battery & Surge Outlets: 4

Number of Surge-only Outlets: 2

Transfer Time: 8 ms

Dataline Protection: RJ-45,RJ-11

Protection Type: Dataline Surge,Black Out,AC Surge,Sag

Overload Protection: Yes

EMI/RFI Noise Filter: Yes

Energy Saving: GreenPower UPS™ Bypass Technology

Application/Usage: Server,Workstation,Network Device,Telecommunication

Load Capacity (VA): 500 VA

Input Voltage: 120 V AC

Input Voltage Range: 90 V AC - 140 V AC

Output Voltage: 120 V AC

Input Frequency: 63 Hz

Waveform Type: Simulated Sine Wave

Surge Energy Rating: 1150 J

Alarm: On Battery,Battery Mode,Overload

Status Indicators:

On Unit:

• Power On
• Wiring Fault

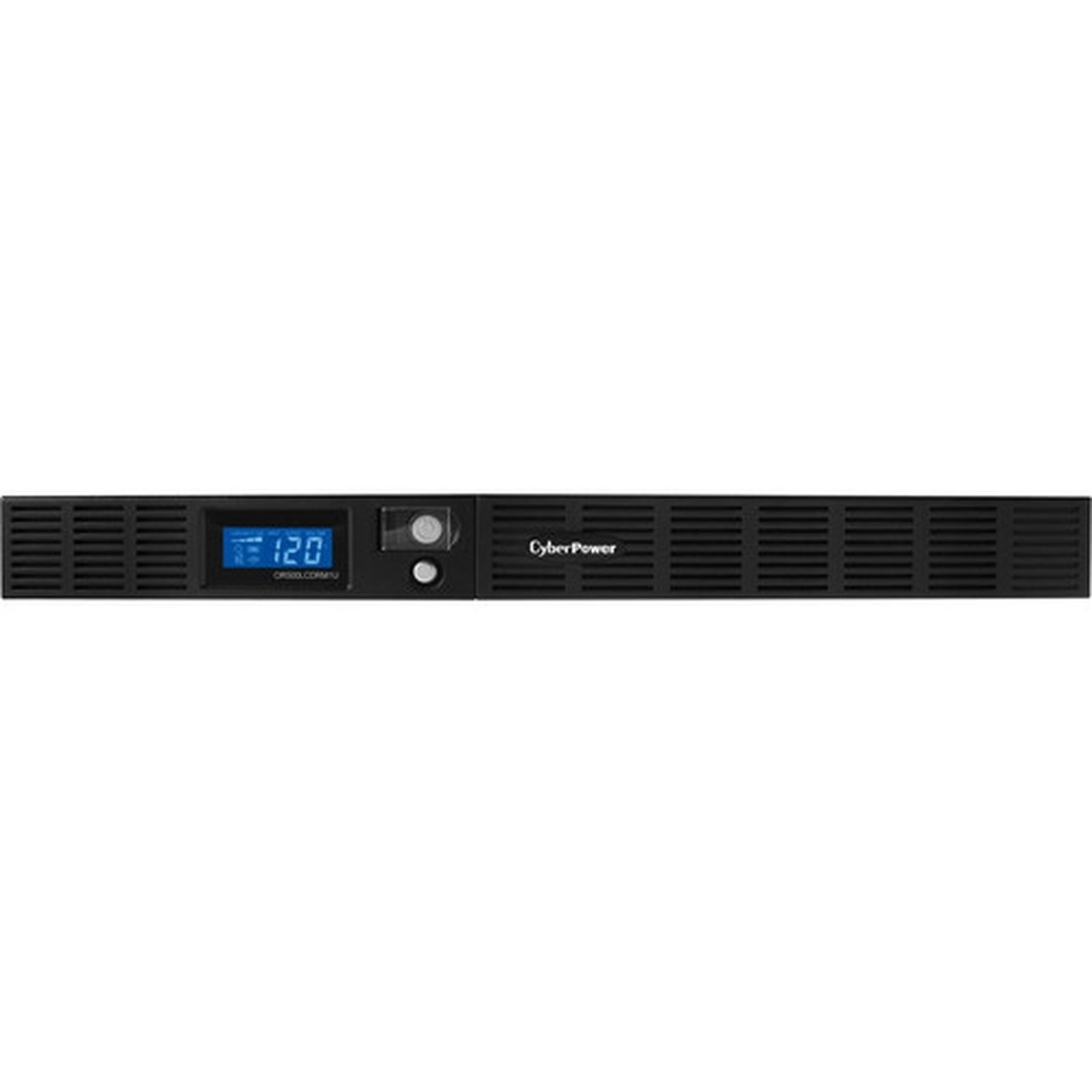

LCD Panel:

• Input Voltage
• Output Voltage
• Battery Capacity
• Load Level
• Runtime
• On Battery
• Overload
• Silent Mode

Serial Port: Yes

USB (HID Compliant) Port: Yes

Number of Batteries: 2

Battery Characteristics: Maintenance-free

Battery Chemistry: Lead Acid

Battery Size: 6V

Battery Capacity: 7000 mAh

Backup/Run Time (Full Load): 3 Minute

Backup/Run Time (Half Load): 12 Minute

Typical Battery Recharge Time: 8 Hour

Replaceable Battery: Yes

Maximum Operating Temperature: 104°F (40°C)

Storage Temperature: 5°F (-15°C) - 113°F (45°C)

Maximum Operating Elevation: 10000 ft (3048000 mm)

Maximum Storage Elevation: 60" (1524 mm)

Storage Relative Humidity: 0% - 95%

Product Color: Black

Form Factor: Rack-mountable

Rack Height: 1U

Height: 1.75" (44.45 mm)

Width: 17.05" (433.07 mm)

Depth: 9.25" (234.95 mm)

Weight (Approximate): 8.16 kg

Package Contents:

• Smart App Intelligent LCD OR500LCDRM1U 500VA UPS
• Rack Ears (2)
• User Manual
• Power Management Software
• Warranty Card
• Serial Cable
• Phone Cable
• USB Cable

Software Included: PowerPanel® Business

Energy Star: Yes

Country of Origin: Philippines

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year

Additional Warranty Information:

CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.
