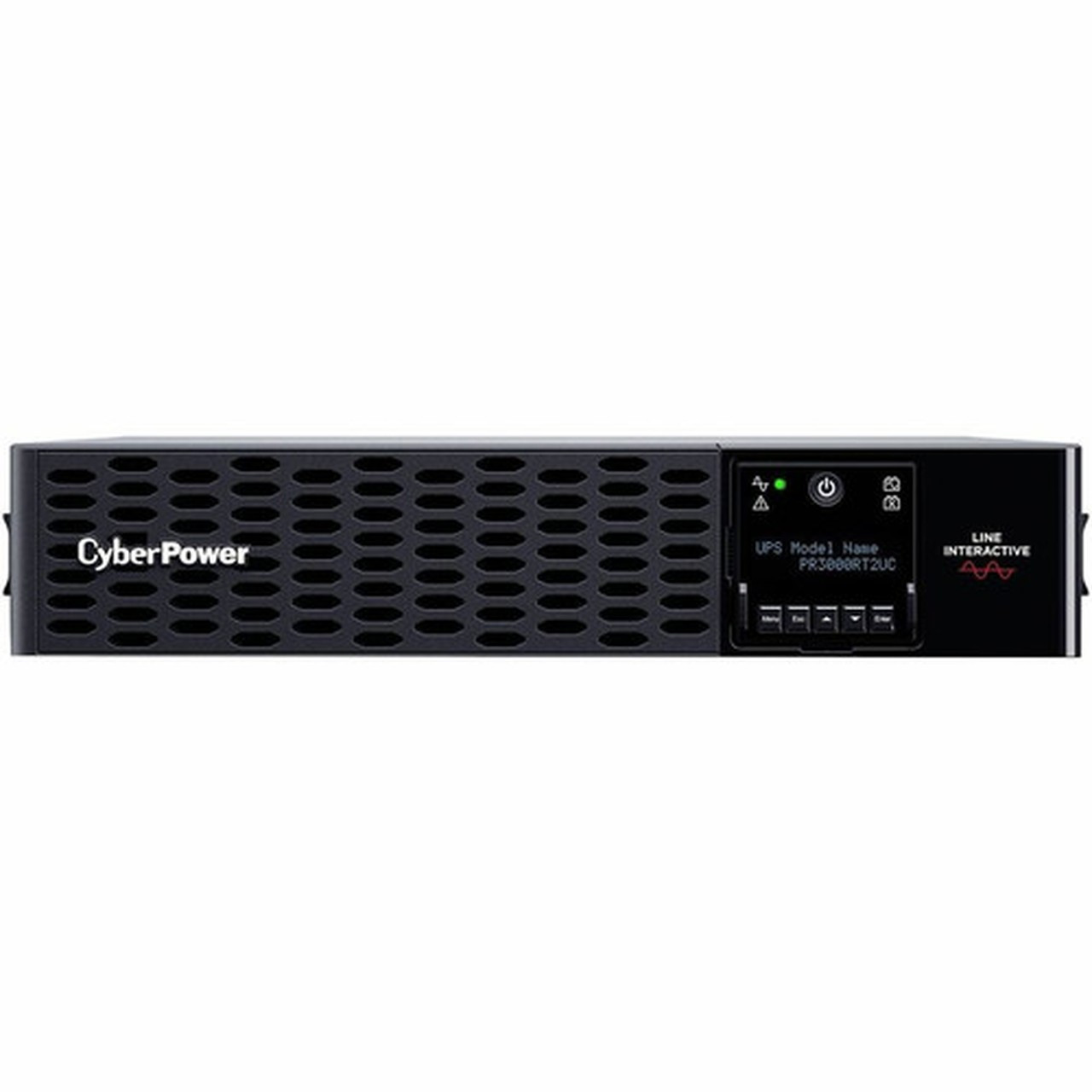

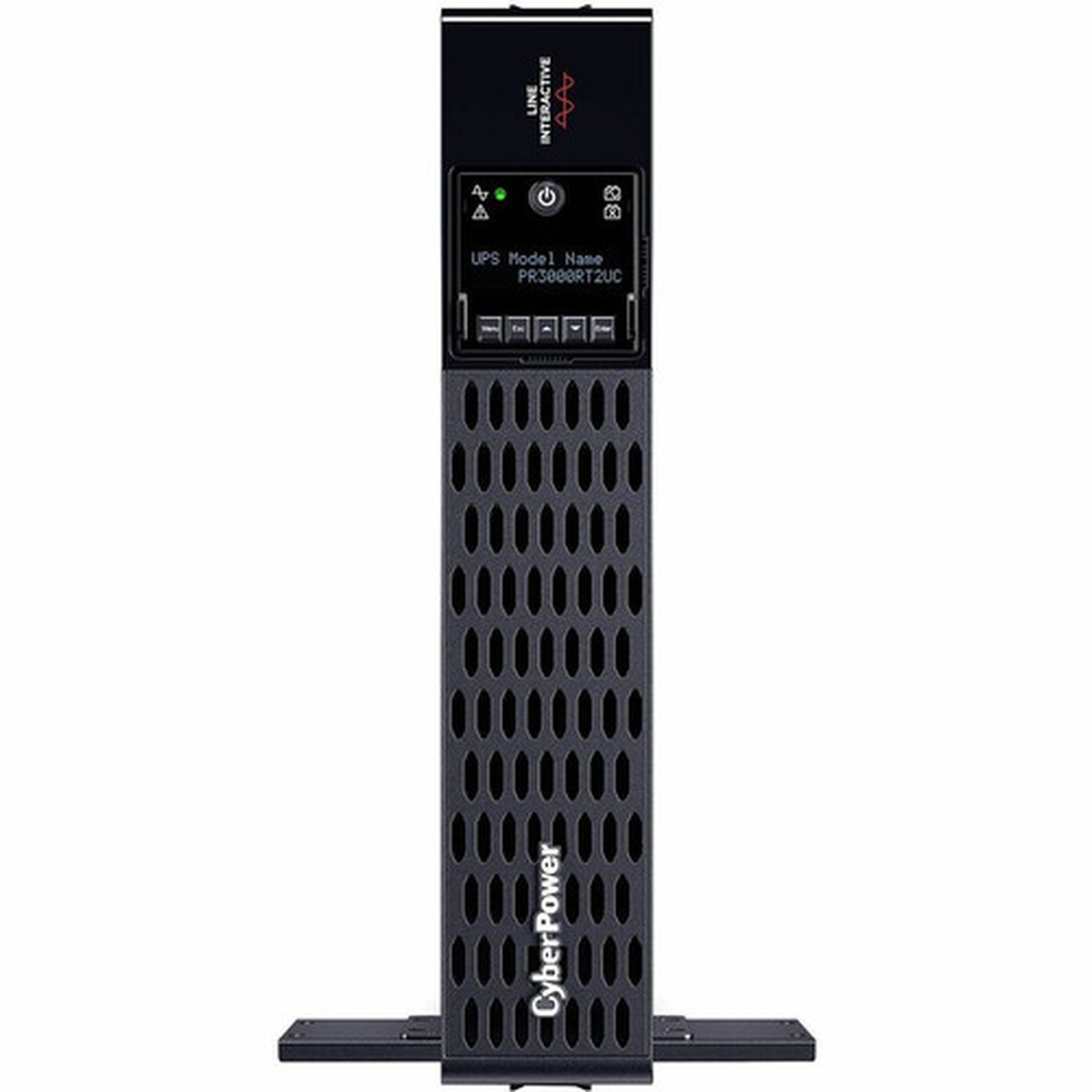

CyberPower Smart App Sinewave PR3000RT2UC 3000VA Rack/Tower UPS - 2U Rack/Tower - AVR - 3 Hour Recharge - 1.50 Minute Stand-by - 120 V (PR3000RT2UC)

Marketing Information:

• The PR3000RT2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

  The Smart App Sinewave PR3000RT2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RT2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

  This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes Built-in Cloud Monitoring.

  With a

• 400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RT2UC.

AVR: Yes

Plug/Connector Type: NEMA L5-30P

Receptacle Type: NEMA 5-20R,NEMA L5-30R

Receptacle Detail: 8 x NEMA 5-20R,1 x NEMA L5-30R

Number of Battery & Surge Outlets: 9

Number of Critical Load Outlets: 4

Overload Protection: Yes

Transfer Time: 4 ms

EMI/RFI Noise Filter: Yes

Application/Usage: Server,Storage Device,VoIP,Network Device,Telecommunication,Equipment

Load Capacity (VA): 3 kVA

Load Capacity (Watt): 3 kW

Input Voltage: 120 V AC

Input Voltage Range: 70 V AC - 155 V AC

Output Voltage: 100 V AC,110 V AC,120 V AC,125 V AC

Input Frequency: 63 Hz

Output Frequency: 60 Hz

Waveform Type: Sine Wave

Surge Energy Rating: 2430 J

Output Power Factor: 1

Display: LCD

Network Management: SNMP/HTTP Remote Monitoring,Relay-MS Card,Dry Contact

Alarm: Battery Mode,Low Battery,Overload,Over-charge,Fault

Status Indicators:

LED Indicators:

• Power On
• Line Mode
• Battery Mode
• Fault

Serial Port: Yes

USB: Yes

EPO Port: Yes

USB (HID Compliant) Port: Yes

Number of Batteries: 4

Battery Characteristics: Sealed

Battery Chemistry: Lead Acid

Battery Size: 12V

Battery Capacity: 9000 mAh

Backup/Run Time (Full Load): 1.50 Minute

Backup/Run Time (Half Load): 5.50 Minute

Hot Swappable: Yes

Typical Battery Recharge Time: 3 Hour

Replaceable Battery: Yes

Maximum Operating Elevation: 9842.52 ft (3000000 mm)

Maximum Storage Elevation: 49209.32 ft (14999000 mm)

Storage Temperature: 5°F (-15°C) - 113°F (45°C)

Operating Humidity: 95%

Storage Relative Humidity: 95%

Maximum Operating Temperature: 104°F (40°C)

Sound Emission (A-Weighted): 57.5 dB(A)

Thermal Dissipation: 192.50 BTU/h

Product Color: Black

Height: 3.40" (86.36 mm)

Width: 17.10" (434.34 mm)

Depth: 19.70" (500.38 mm)

Rack Height: 2U

Form Factor: Rack/Tower

Weight (Approximate): 34.70 kg

Energy Star: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year

Additional Warranty Information:

Connected Equipment Guarantee: Lifetime
