- Automated notifications: Email, SMS Text, and SNMP Trap
- Phase: Single
- Amps: 20A (Derated to 16A)
- Volts: 100-120V
- Frequency: 50/60Hz
- Plug type: 2 x NEMA L5-20P (L5-20P to 5-20P adapter included)
- Outlets: 10 x NEMA 5-20R
- Size: 1U Rackmount
- Warranty: 3 year

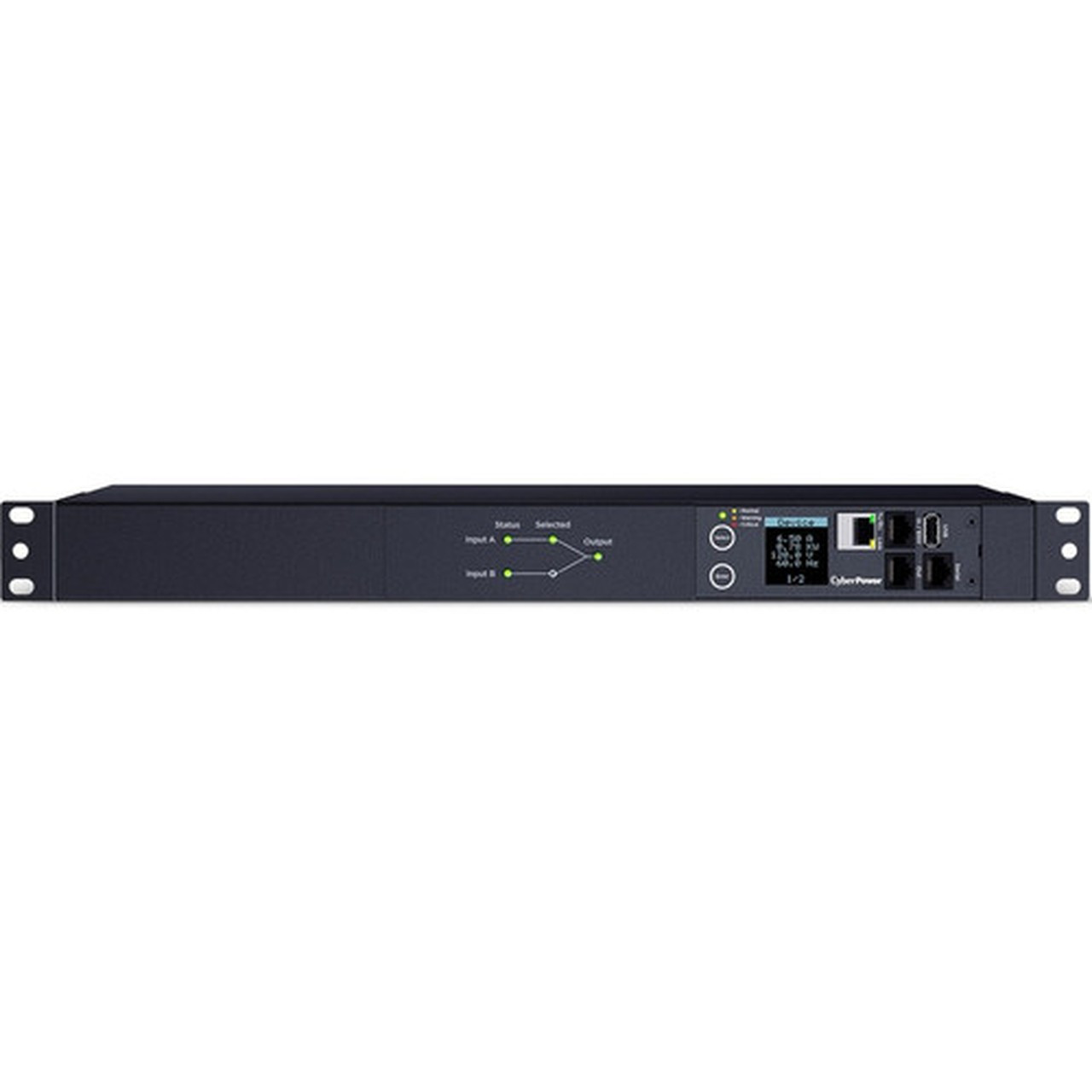

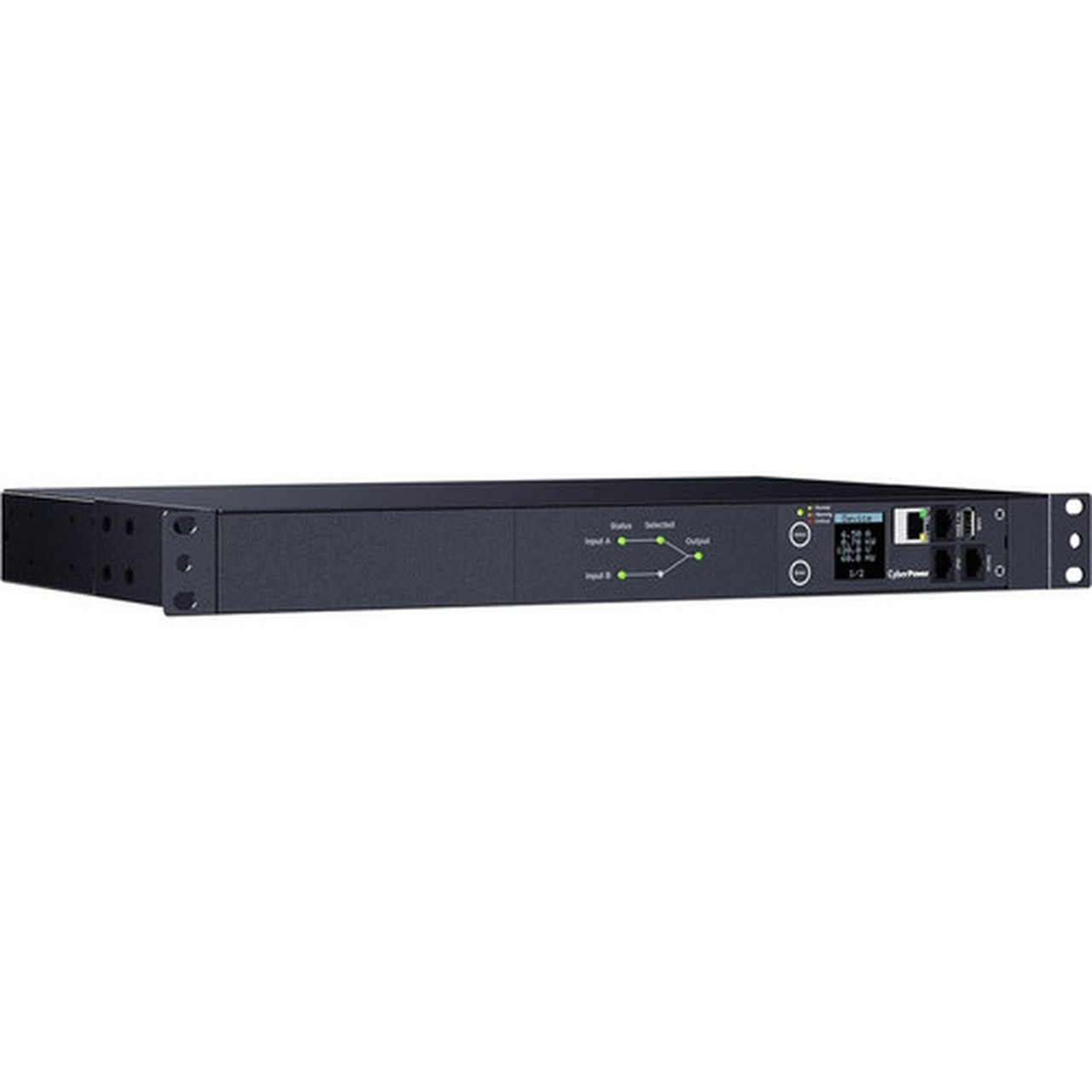

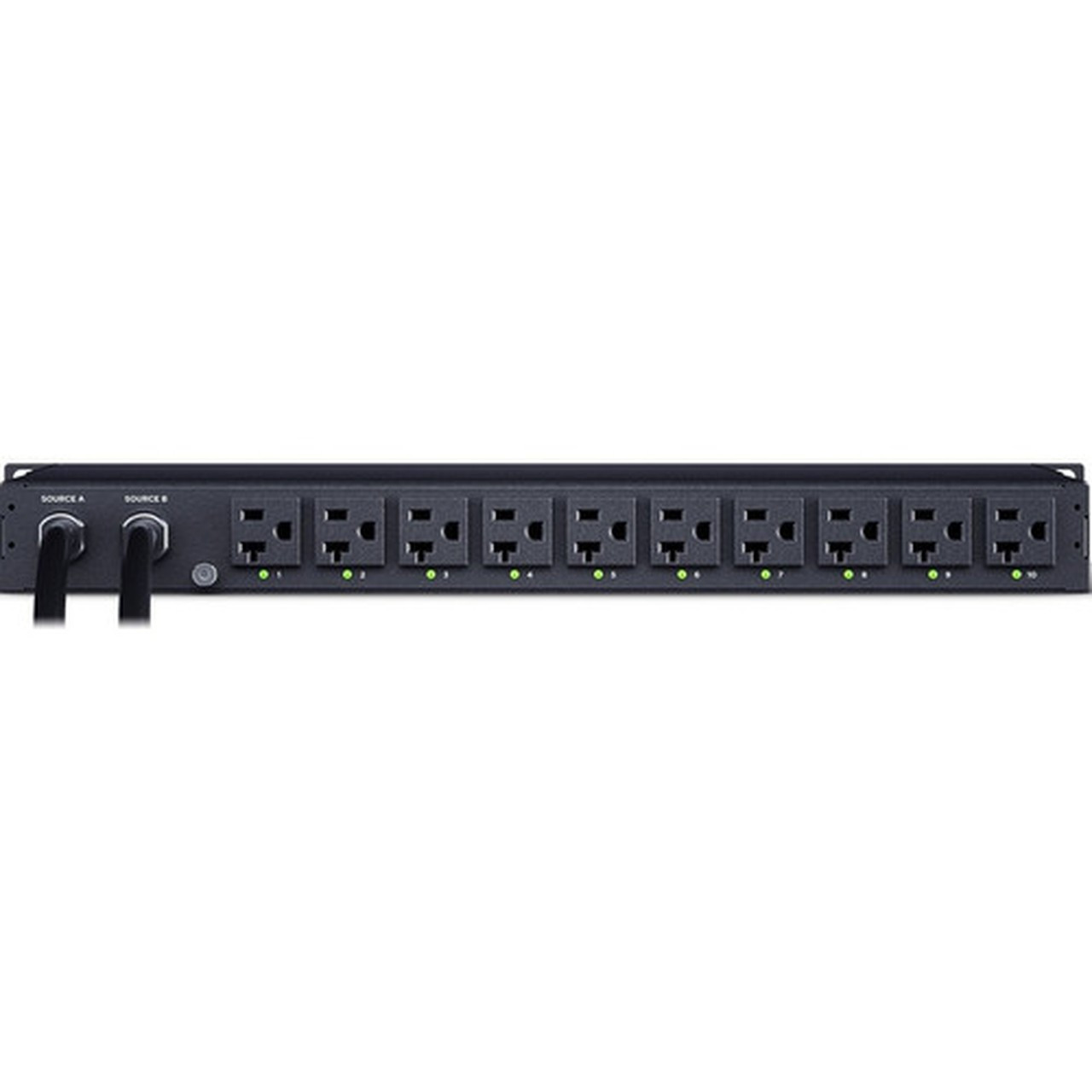

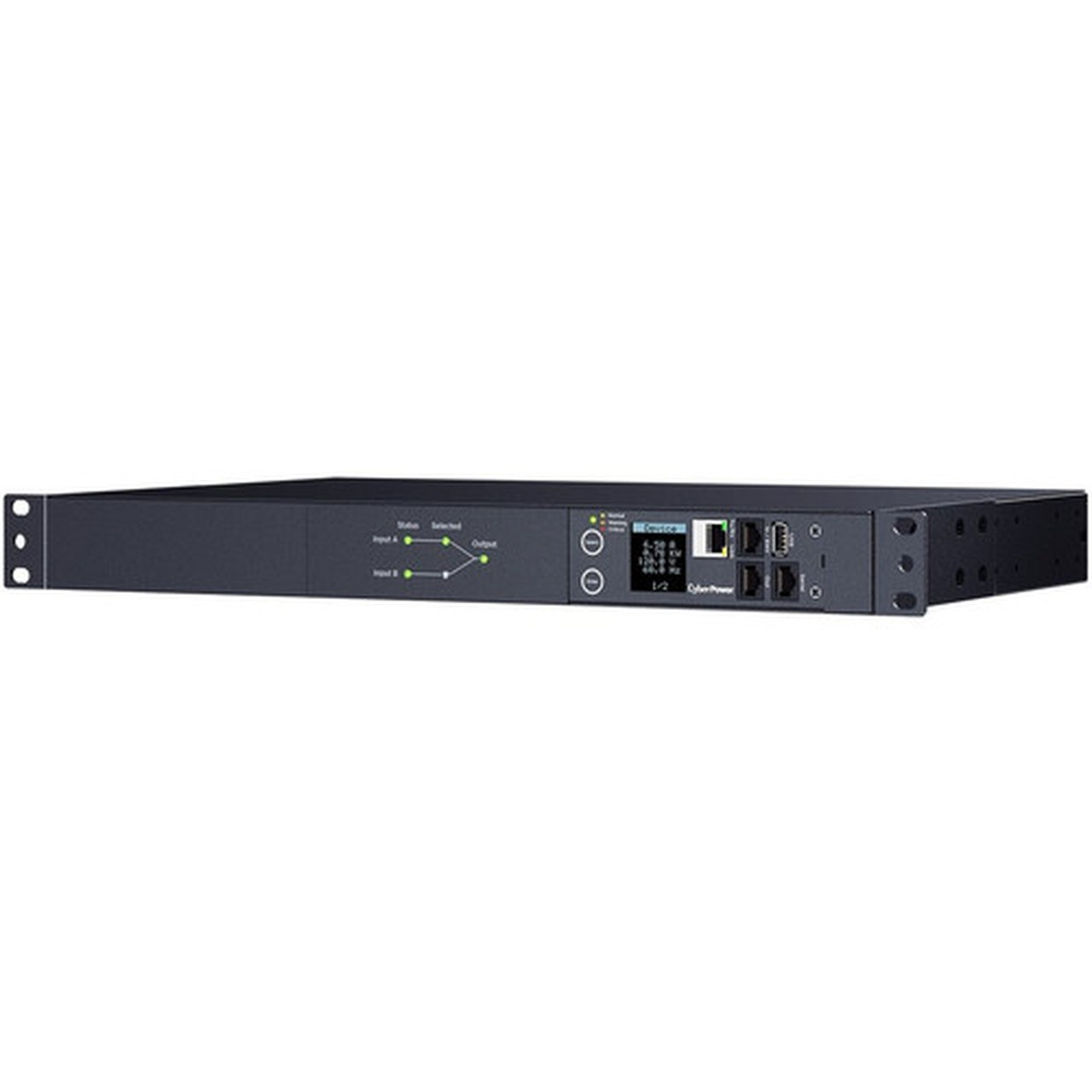

Marketing Information: Ensure continued operation of critical devices with the CyberPower PDU44002 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management. The PDU44002 supports inputs between 100-120V and includes (10) NEMA 5-20R outlets. Dual NEMA L5-20P power cords (L5-20P to non-locking 5-20P adpaters included) are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44002 is protected by a three-year limited warranty.
PDU Type: SwitchedDesign: ModularPhase: Single PhasePlug/Connector Type: NEMA L5-20PPlug/Connector Detail: 2 x NEMA L5-20PReceptacle Type: NEMA 5-20RReceptacle Detail: 10 x NEMA 5-20RInput Voltage: 120 V ACInput Voltage Range: 100 V AC - 120 V ACOutput Voltage: 120 V ACOutput Voltage Range: 100 V AC - 120 V ACInput Current: 20 AManagement: - IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
Remote Outlet Switching: YesNetwork (RJ-45): YesProduct Color: BlackMounting Orientation: HorizontalMount Type: Rack-mountableRack Height: 1UHeight: 1.75" (44.45 mm)Width: 17.05" (433.07 mm)Depth: 8.45" (214.63 mm)Weight (Approximate): 5.13 kgPackage Contents: - Switched ATS PDU PDU44002 10-Outlets PDU
- L5-20P to non-locking 5-20P Adapter
Environmentally Friendly: YesCountry of Origin: ChinaLimited Warranty: 3 Year
[custom-specifications]
SpecificationsManufacturer: CyberPower Systems, Inc
Manufacturer Part Number: PDU44002
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: Switched ATS PDU
Product Model: PDU44002
Product Name: Switched ATS PDU PDU44002 10-Outlets PDU
Product Type: PDU
Technical InformationPDU Type: Switched
Design: Modular
Phase: Single Phase
Plug/Connector Type: NEMA L5-20P
Plug/Connector Detail: 2 x NEMA L5-20P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 10 x NEMA 5-20R
Power DescriptionInput Voltage: 120 V AC
Input Voltage Range: 100 V AC - 120 V AC
Output Voltage: 120 V AC
Output Voltage Range: 100 V AC - 120 V AC
Input Current: 20 A
ManagementManagement:
- IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
Remote Outlet Switching: Yes
Interfaces/PortsNetwork (RJ-45): Yes
Physical CharacteristicsProduct Color: Black
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Rack Height: 1U
Height: 1.75" (44.45 mm)
Width: 17.05" (433.07 mm)
Depth: 8.45" (214.63 mm)
Weight (Approximate): 5.13 kg
MiscellaneousPackage Contents:
- Switched ATS PDU PDU44002 10-Outlets PDU
- L5-20P to non-locking 5-20P Adapter
Environmentally Friendly: Yes
Country of Origin: China
WarrantyLimited Warranty: 3 Year
