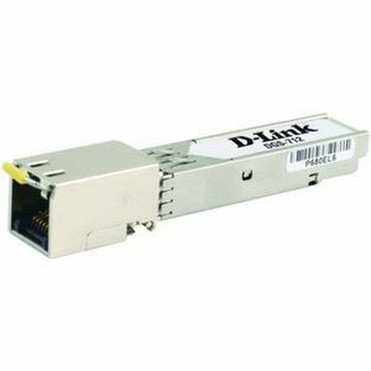

Marketing Information: The D-Link DGS-712 1000BASE-T Copper Small Form Pluggable (SFP) transceiver is based on the SFP Multi Source Agreement (MSA). It is compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3z and IEEE Std 802.3ab. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.
Application/Usage: Data NetworkingTotal Number of Ports: 1Connector Type: RJ-45Interfaces/Ports Details: 1 x RJ-45 1000Base-T Auto MDI/MDI-XMedia Type Supported: Twisted PairTwisted Pair Cable Standard: Category 5Maximum Distance Supported: 328.08 ft (100000 mm)Input Current: 350 mAForm Factor: Hot-pluggableCompatibility: D-Link Gigabit switch or optional switch module
Country of Origin: ChinaLimited Warranty: 2 Year
[custom-specifications]
SpecificationsManufacturer: D-Link Systems, Inc
Manufacturer Part Number: DGS712
Manufacturer Website Address: http://www.dlink.com
Brand Name: D-Link
Product Name: 1000BASE-T Copper SFP Transceiver
Product Type: SFP
Technical InformationApplication/Usage: Data Networking
Interfaces/PortsTotal Number of Ports: 1
Connector Type: RJ-45
Interfaces/Ports Details: 1 x RJ-45 1000Base-T Auto MDI/MDI-X
Media & PerformanceMedia Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5
Maximum Distance Supported: 328.08 ft (100000 mm)
Power DescriptionInput Current: 350 mA
Physical CharacteristicsForm Factor: Hot-pluggable
MiscellaneousCompatibility:
D-Link Gigabit switch or optional switch module
Country of Origin: China
WarrantyLimited Warranty: 2 Year
