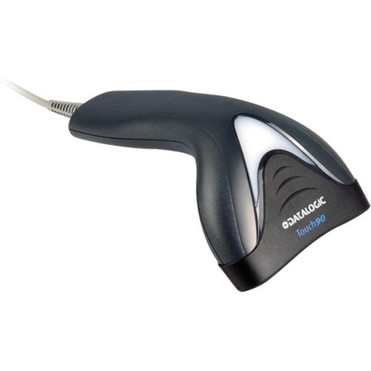

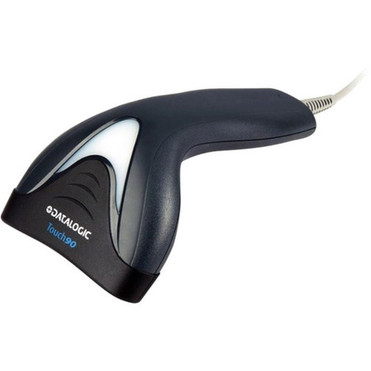

Datalogic General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit - Cable Connectivity - 5.91" (150 mm) Scan - 1D - (TD1120-BK-90K1)
Write a Review
Datalogic
Datalogic General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit - Cable Connectivity - 5.91" (150 mm) Scan - 1D - (TD1120-BK-90K1)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:
1D / Linear Codes:
Stacked Codes:
Image Sensor Type: Imager,Linear
Scan Pattern: Omni-directional
Scanner Range: Short Range
Scanning Distance: 5.91" (150 mm)
Cable Type Included: USB
Reading Angle (Skew): 70°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45°
Maximum Ambient Light: 20000 lux
Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 7.50 mil (0.19 mm)
Maximum Element Resolution (Code 39): 10 mil (0.25 mm)
Host Interface: USB
Form Factor: Handheld
Color Family: Black
Product Color: Black
Height: 6.70" (170.18 mm)
Width: 2.70" (68.58 mm)
Depth: 4.10" (104.14 mm)
Weight (Approximate): 5.40 oz (153.09 g)
Ingress Protection (IP) Rating: IP30
Application/Usage: Library,Government,Industrial,Retail
Country of Origin: Vietnam
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | TD1120-BK-90K1 |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | Touch |
| Product Series | TD1100 |
| Product Model | 90 Lite |
| Product Name | General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit |
| Packaged Quantity | 3 |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D / Linear Codes:
Stacked Codes:
|
| Image Sensor Type | Imager,Linear |
| Scan Pattern | Omni-directional |
| Scanner Range | Short Range |
| Scanning Distance | 5.91" (150 mm) |
| Cable Type Included | USB |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 45° |
| Maximum Ambient Light | 20000 lux |
| Drop Specification | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 7.50 mil (0.19 mm) |
| Maximum Element Resolution (Code 39) | 10 mil (0.25 mm) |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Height | 6.70" (170.18 mm) |
| Width | 2.70" (68.58 mm) |
| Depth | 4.10" (104.14 mm) |
| Weight (Approximate) | 5.40 oz (153.09 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP30 |
| Application/Usage | Library,Government,Industrial,Retail |
| Country of Origin | Vietnam |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
[/custom-user-manual]
