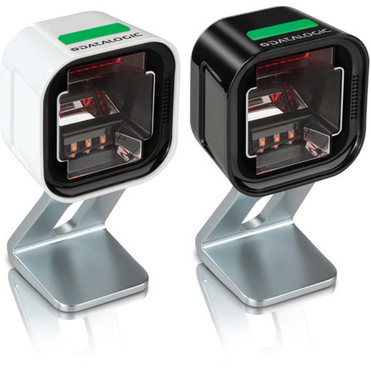

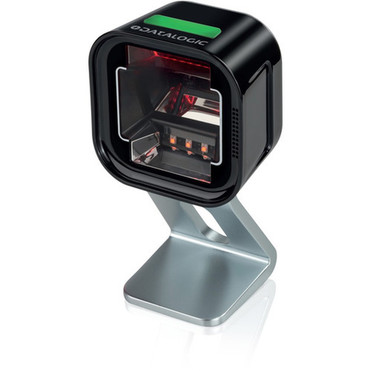

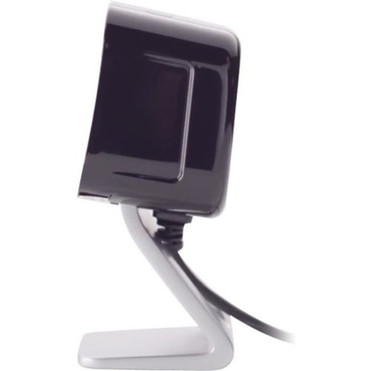

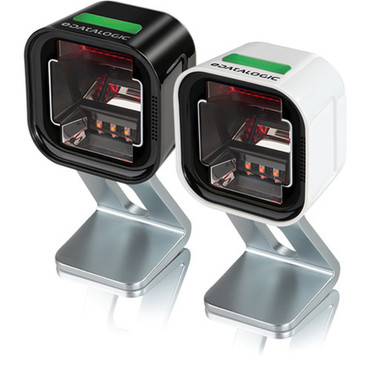

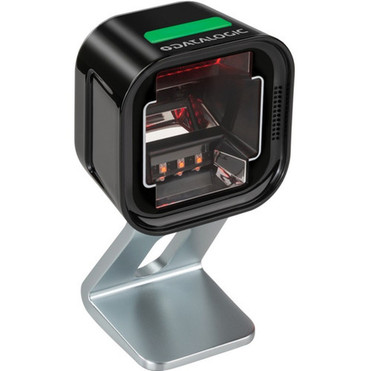

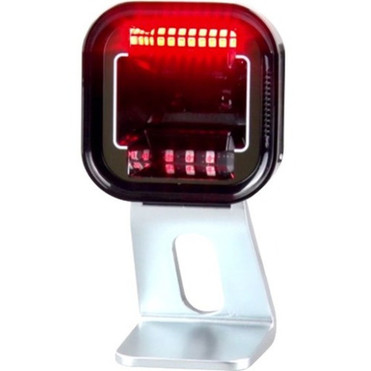

Datalogic Magellan 1500i Desktop Barcode Scanner - Cable Connectivity - 11.81" (300 mm) Scan Distance - 1D, 2D - Imager - USB, Serial (MG1501-10211-0200)

Marketing Information:

HIGH PERFORMANCE SCANNING IN THE PALM OF YOUR HAND
The Magellan 1500i omnidirectional presentation scanner is a versatile and stylish addition to any point of sale. With Datalogic's latest digital imaging technology, it seamlessly decodes both 1D and 2D bar codes on everything from printed product labels to mobile coupons, loyalty cards, tickets and boarding passes. The recessed, adaptive illumination optimizes light levels for both superior operator comfort and high performance sweep and presentation scanning. With the addition of optional Digimarc® Barcode decoding, the Magellan 1500i is the most capable scanner in its class.

A WIDE VARIETY OF USES
The available black and white enclosures complement a variety of point of sale systems and store formats, making the Magellan 1500i equally at home in a convenience store, pharmacy, post office or a high-end boutique. With the most compact footprint in its class, the Magellan 1500i is an ideal choice for space constrained applications. Additionally, intelligent host cable routing ensures that the scanner is both comfortable in the hand and can back right up to a wall or display for maximum space efficiency. A variety of mounting options allow you to optimize the scanner's location with a tall tilting riser, short stand, magnetic base and an L shaped mounting bracket.

ENTERPRISE FEATURES
Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added features included in every Magellan scanner.

Connectivity Technology: Cable

Scanning Capability: 1D,2D

Barcode Symbology Supported: 1D:

• Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.

• Aztec Code
• Data Matrix
• MaxiCode
• QR Code

• Australian Post
• British Post
• Canadian Post
• China Post
• IMB
• Japanese Post
• KIX Post
• Planet Code
• Portuguese Post
• Postnet
• Royal Mail Code (RM4SCC)
• Swedish Post

• GS1 DataBar Composites
• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• Micro PDF417
• PDF417

• Optional support for Digimarc® Barcodes/GS1 DW Code

Image Sensor Type: Imager

Scanning Distance: 11.81" (300 mm)

Cable Type Included: USB

Reading Angle (Skew): 75°

Reading Angle (Pitch): 65°

Reading Angle (Roll): 360°

Maximum Ambient Light: 86100 lux

Drop Specification: Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface

Minimum Print Contrast: 25%

Host Interface: USB,Serial

Form Factor: Desktop

Color Family: Black

Product Color: Black

Height: 4.13" (104.90 mm)

Width: 5.51" (139.95 mm)

Length: 8.07" (204.98 mm)

Ingress Protection (IP) Rating: IP52

Application/Usage: Retail,Industrial,Healthcare
