- LED aimer is a perfect choice for patient-facing applications
- Perfect for applications that require direct association with a workstation or a notebook
Connectivity Technology: CableScanning Capability: Barcode Symbology Supported: 1D / Linear Codes
- Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes
- Aztec Code; Data Matrix (ECC200 only); QR Code
Stacked Codes
- GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417
Light Source: LEDImage Sensor Type: ImagerScan Pattern: AreaCable Type Included: USBReading Angle (Skew): 75°Reading Angle (Pitch): 65°Reading Angle (Roll): 360°Image Formats: Maximum Ambient Light: 86100 luxMinimum Print Contrast: 25%Image Sensor Resolution: 1280 x 800Illumination Type: LEDFeatures: - Sensormatic EAS
- Beep
- Checkpoint EAS
Host Interface: USBMaximum Operating Power Consumption: 2.25 WOperating Temperature: 50°F (10°C) to 104°F (40°C)Storage Temperature: -40°F (-40°C) to 158°F (70°C)Humidity (Non-condensing): 5% to 95%Form Factor: In-counterColor Family: MulticolorProduct Color: Width: 6" (152.40 mm)Depth: 3.40" (86.36 mm)Length: 6" (152.40 mm)Weight (Approximate): 979.8 gPackage Contents: - Magellan 3500HSi 3510HSi Barcode Scanner
- USB Cable
Ingress Protection (IP) Rating: IP52Application/Usage: Environmentally Friendly: YesEnvironmental Certification: Limited Warranty: 3 Year
[custom-specifications]
SpecificationsManufacturer: Datalogic S.p.A
Manufacturer Part Number: M351101020000403
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Magellan
Product Series: 3510HSi

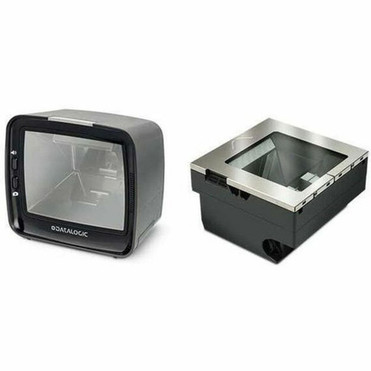

Product Name: Magellan 3510HSi Barcode Scanner
Product Type: Barcode Scanner
Technical InformationConnectivity Technology: Cable
Scanning Capability:
Barcode Symbology Supported:
1D / Linear Codes
- Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes
- Aztec Code; Data Matrix (ECC200 only); QR Code
Stacked Codes
- GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417
Light Source: LED
Image Sensor Type: Imager
Scan Pattern: Area
Cable Type Included: USB
Reading Angle (Skew): 75°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Image Formats:
Maximum Ambient Light: 86100 lux
Minimum Print Contrast: 25%
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Features:
- Sensormatic EAS
- Beep
- Checkpoint EAS
Interfaces/PortsHost Interface: USB
Power DescriptionMaximum Operating Power Consumption: 2.25 W
Environmental ConditionsOperating Temperature: 50°F (10°C) to 104°F (40°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Physical CharacteristicsForm Factor: In-counter
Color Family: Multicolor
Product Color:
Width: 6" (152.40 mm)
Depth: 3.40" (86.36 mm)
Length: 6" (152.40 mm)
Weight (Approximate): 979.8 g
MiscellaneousPackage Contents:
- Magellan 3500HSi 3510HSi Barcode Scanner
- USB Cable
Ingress Protection (IP) Rating: IP52
Application/Usage:
Environmentally Friendly: Yes
Environmental Certification:
WarrantyLimited Warranty: 3 Year
