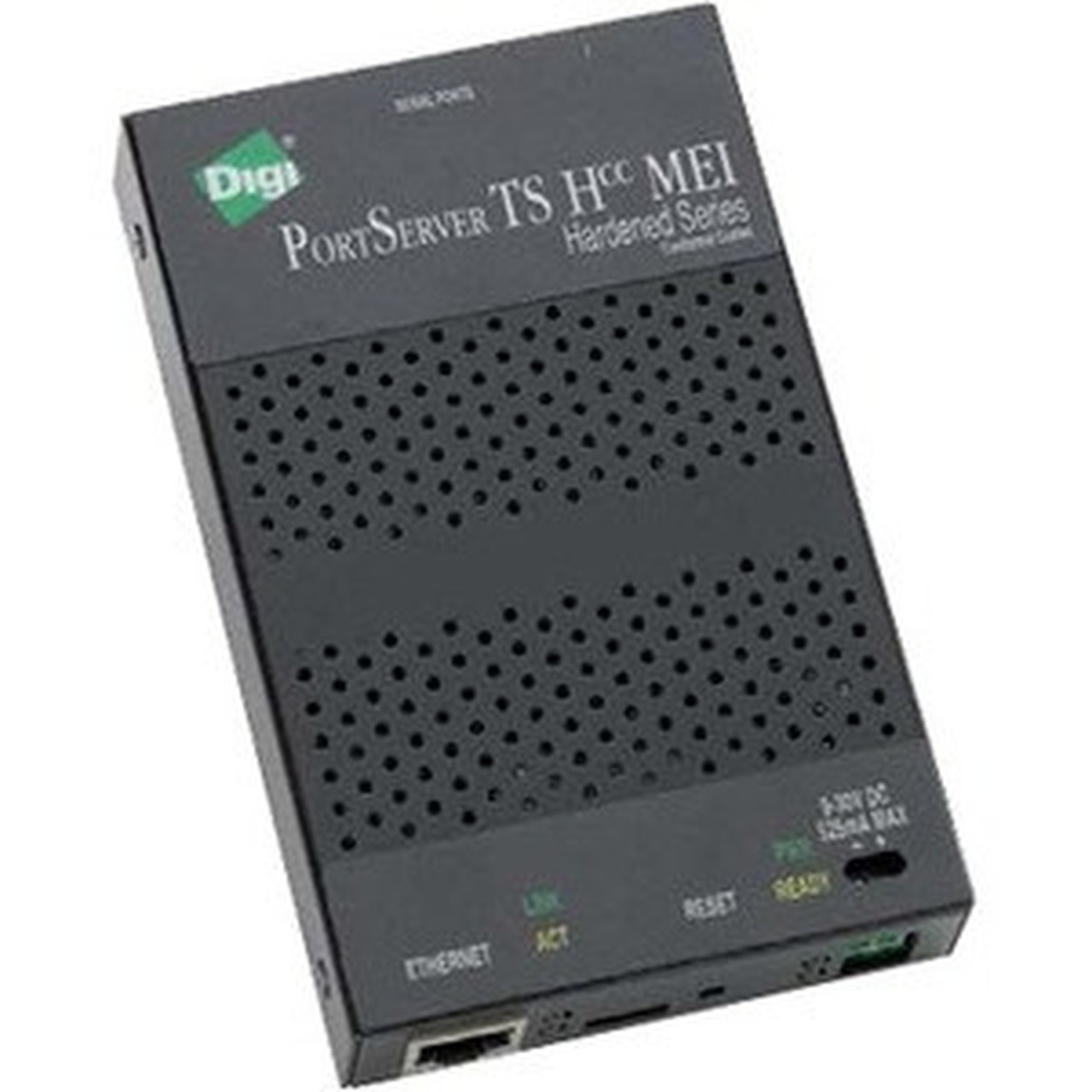

Digi PortServer TS 1 Hcc MEI - x Network (RJ-45) - 4 x Serial Port - 10/100Base-TX - Fast Ethernet (70002040)

Marketing Information: Serial-to-Ethernet connectivity for traffic management applications requiring extended vibration, temperature and moisture tolerance

PortServer TS Hcc MEI is designed to meet the unique specifications required for use in traffic management installations. It is ideal for network-enabling and remotely managing variable message signs, loop detectors, ramp meters or any RS-232/422/485 serial device.

Specialized features include a conformal coated PCA for moisture and corrosion protection, a screw terminal power connector for durable and reliable power feed, and an extended operating temperature tolerance (-35° C to +74° C). In addition, PortServer TS Hcc MEI meets NEMA TS2 requirements for traffic control equipment.

Digi's patented RealPort® technology makes it possible to establish a connection between the host and networked serial device by creating a local COM or TTY port on the host computer, allowing software applications to work with networked device servers instead of requiring a host adapter.

Other features include SSHv2, port buffering, full SNMP device management and industry leading low latency.

Ethernet Technology: Fast Ethernet

Network Standard: 10/100Base-TX

Network (RJ-45): Yes

Serial Port: Yes

Number of Serial Ports: 4

Height: 5.25" (133.35 mm)

Width: 3.33" (84.58 mm)

Depth: 0.95" (24.13 mm)

Weight (Approximate): 63.8 g
