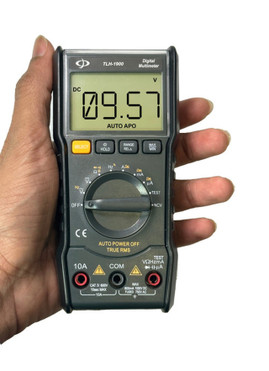

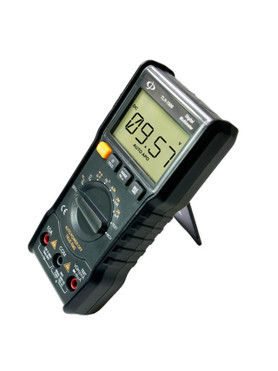

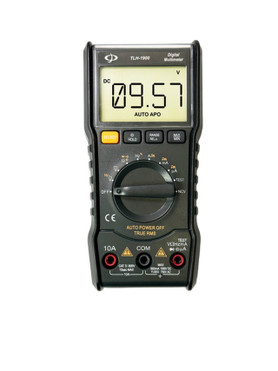

Digital Multimeter With Insulated Test Leads And Bright LED Display For Accurate Readings FN-TLH-1900
SKU:
FN-TLH-1900
(No reviews)
Write a Review
Write a Review
Fleet Network
Digital Multimeter With Insulated Test Leads And Bright LED Display For Accurate Readings FN-TLH-1900
MSRP:
$29.95
$29.95
$26.95
Save:
$3.00 (10.02%)
Warranty Information:
Covered by Manufacturer
Condition:
New
Width:
0.70
(cm)
Height:
0.70
(cm)
Depth:
0.70
(cm)
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
FleetAI Assistant
Products Features
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Description
Overview
This digital multimeter is basically used to measure AC/DC voltage, AC/DC amperage, resistance, capacitance and frequency. The meter has a large back lit LCD display, overload protection and comes with test leads.
Features
- Display, liquid crystal display (LCD)
- Maximum display: 5999 (3 5/6) bits automatic polarity display
- Measurement: double integral A / D conversion
- Sampling rate: about 3 times per second
- Over-range and Low voltage display
- On-off buzzer diode
- Flashlight/ backlight
- Non-contact voltage
- Certifications - Passes RoHS, FCC, and CE compliance testing
 |
Smart - Inexpensive - CompactThis digital multimeter is smart, inexpensive and simple to use. Comes in a compact, lightweight design with large LCD display and smart turn OFF technology.
Quick and Easy OperationThis digital multimeter is a quick and easy way to measure AC/DC voltage, AC/DC amperage, resistance, capacitance, frequency and much more.
|
Specifications
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Display | liquid crystal display (LCD) |
| Resolution (RGB) | 800 x 480 |
| Dimensions |
142 x 70 x 32mm |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | <80% |
|
Power Supply
|
|
| Battery | 2 x AAA 1.5V |
|
Performance
|
|
| DC Voltage | 6V〜1000V ± (0.5%+4) |
| AC Voltage | 6V-750V ± (0.8%+3) |
| DC Current | 600μA~10A ± (0.8%+8) |
| AC Current | 600μA~10A ± (1.0%+8) |
| Resistance | 600Ω~40MΩ ± (1.0%+8) |
| Capacitance |
60nF〜6mF ± (5.0%+10) 30mF ± (5.0%+10) |
| Frequency | 10Hz〜10MHz ± (0.01%+5) |
| Duty Cycle | 0. 1-99% |
| Display counts | 6000 counts |
| Auto/Manual range | Manual |
| Live Test | Yes |
| NCV | Yes |
| Diode test | Yes |
| MAX/MIN/hold | MAX |
| Data Hold | Yes |
| True RMS | Yes |
| Battery test( 1.5 V/9 V ) | Yes |
| Low battery indication | Yes |
| AUTO power off | Yes |
| Double color backlight | Yes |
| Flashlight | Yes |
| Resistance measurement | 600 Ω~60M Ω ±(1.0%+8) |
| Capacitance measurement |
60nF~6mF ±(2.5%+60) 30mF ±(5.0%+10) |
|
Packaging Information
|
|
| Packaging Contents |

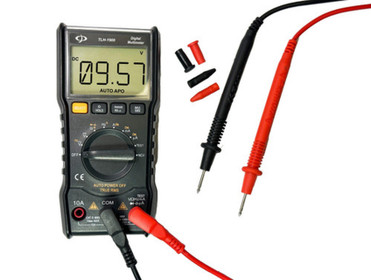

1 - Digital Multimeter 1 - Multi-Meter Test Leads (One Pair of Red and Black) 1 - Test Certificate 1 - User Manual |
| Product Weight | 0.70 lbs [317g] |
