- Safeguards your equipment from the sudden jolts of electricity
- Offers Terminal Block surge protected outlets
Marketing Information: DITEK's Low Voltage Line Protector series of signal, data and loop circuit surge protectors provide strong protection in a compact hard wire package. Applications include protection of 4-20mA current loops, alarm panel NAC, SLC and IDC loops, and burglar alarm panels. Models are available to protect 1, 2, 4 or 8 pairs. LVLAWG models can handle #14-#10 AWG wiring connections.
Plug/Connector Type: Terminal BlockReceptacles: Terminal BlockDataline Protection: DatacommunicationInput Voltage: 30 VOutput Voltage: 30 V DCHeight: 1.60" (40.64 mm)Width: 3" (76.20 mm)Depth: 1.60" (40.64 mm)Weight (Approximate): 68 gEnvironmentally Friendly: YesCountry of Origin: United StatesTAA Compliant: YesLimited Warranty: 10 Year
[custom-specifications]
Specifications
Manufacturer: DITEK Corporation
Manufacturer Part Number: DTK-4LVLPLV
Manufacturer Website Address: http://www.ditekcorp.com
Brand Name: DITEK
Product Series: LVLP
Product Model: DTK-4LVLPLV

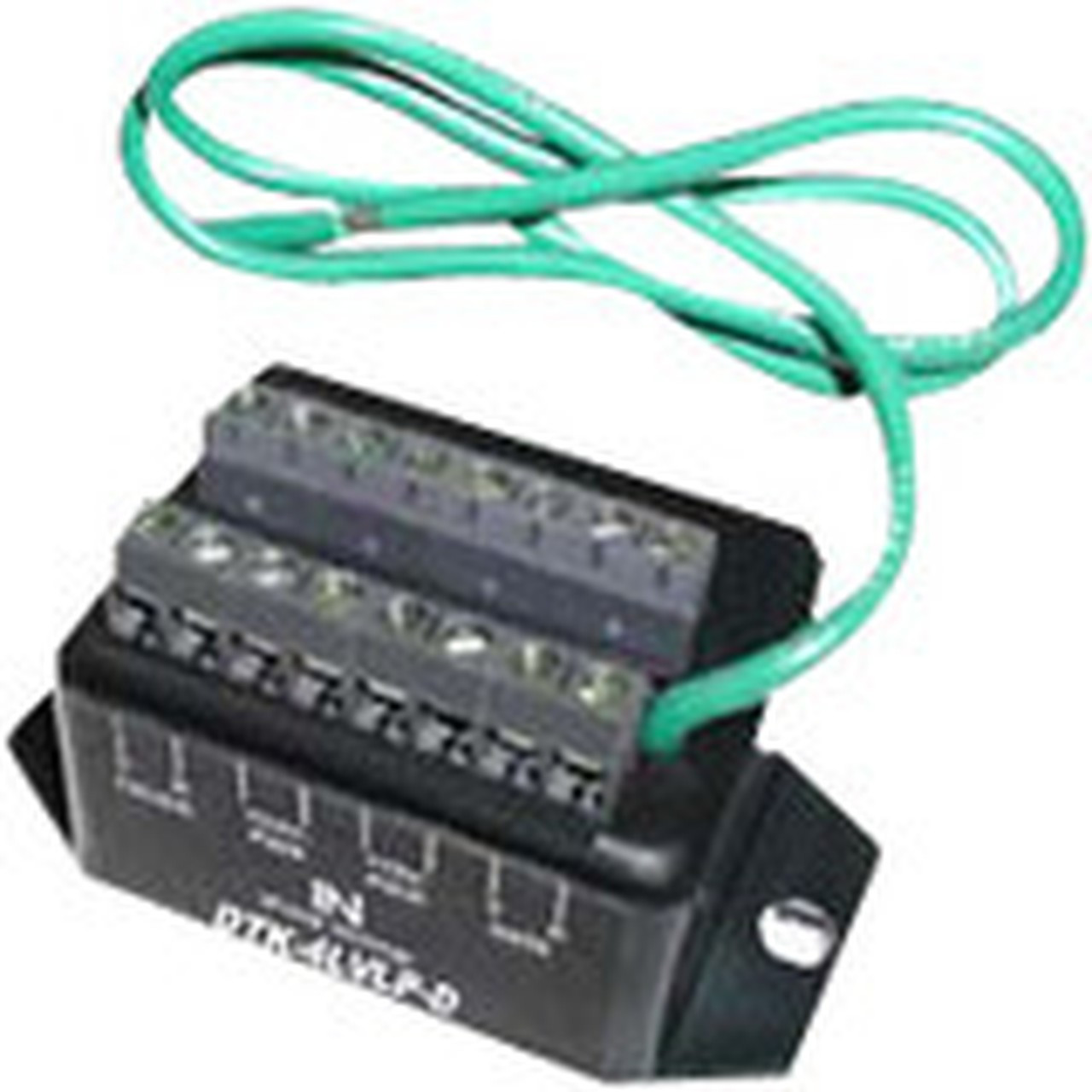

Product Name: DTK-4LVLPLV Surge Suppressor
Product Type: Surge Suppressor/Protector
Technical Information
Plug/Connector Type: Terminal Block
Receptacles: Terminal Block
Dataline Protection: Datacommunication
Power Description
Input Voltage: 30 V
Output Voltage: 30 V DC
Physical Characteristics
Height: 1.60" (40.64 mm)
Width: 3" (76.20 mm)
Depth: 1.60" (40.64 mm)
Weight (Approximate): 68 g
Miscellaneous
Environmentally Friendly: Yes
Country of Origin: United States
TAA Compliant: Yes
Warranty
Limited Warranty: 10 Year
